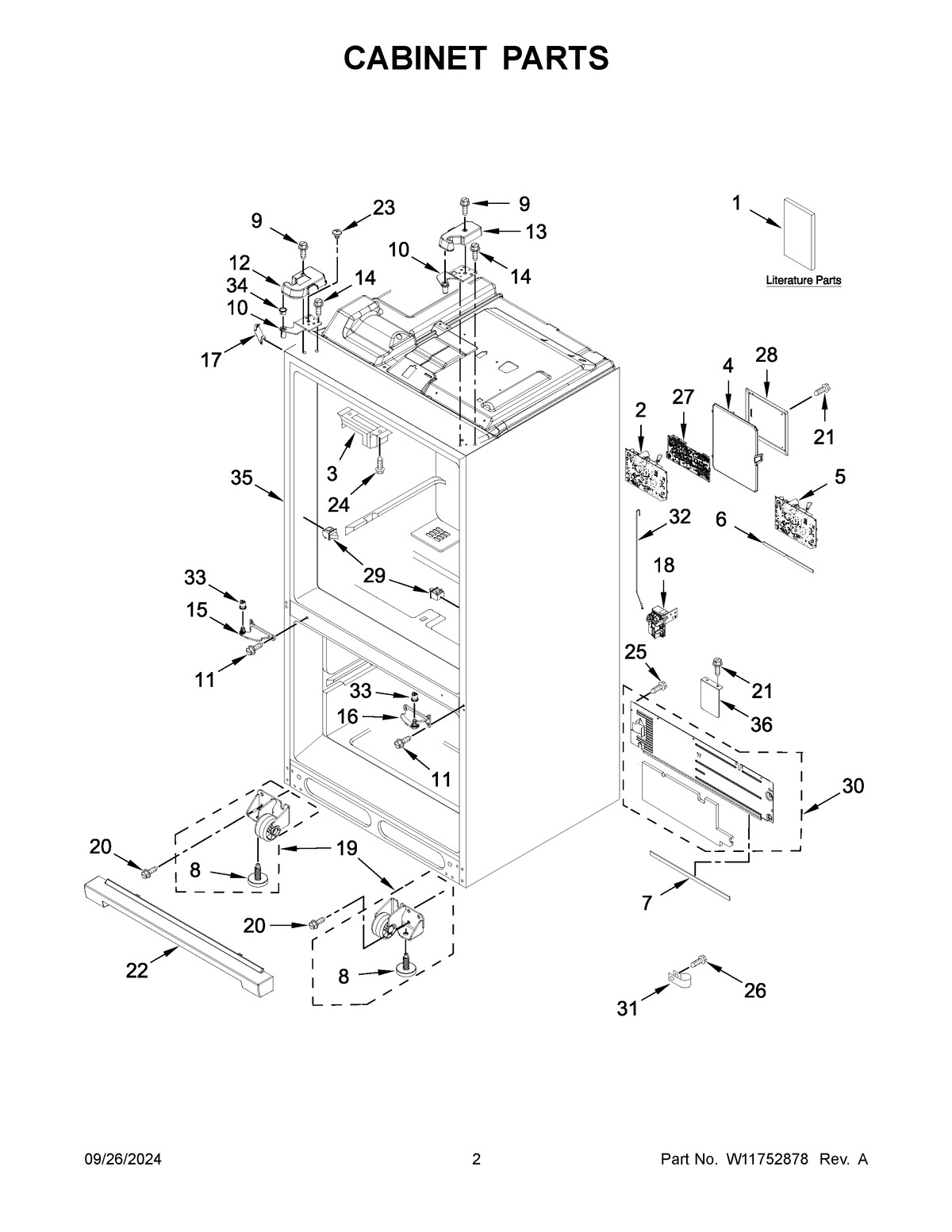

KRMF536RBS01 02 – CABINET PARTS

KRMF536RBS01 02 – CABINET PARTS

Written by

in

KRMF536RBS01 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1ATECH SHEET, OWNERS MANUAL
1TECH SHEET
2W10830278 Whirlpool Refrigerator Electronic Control Board
3W10734555 Whirlpool Refrigerator Pivot Block
4W10277839 Whirlpool Refrigerator Cover
6W10415341 Whirlpool Refrigerator Gasket
7W11534848 Whirlpool Gasket
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10AW11592404 Whirlpool Refrigerator Door Hinge
10W11592405 Whirlpool Door Hinge
11W10673842 Whirlpool Refrigerator Screw
12W10471617 Whirlpool Refrigerator Cover
13COVER, TOP HINGE RIGHT HAND (BLACK)
14W11126052 Whirlpool Screw Assembly
15W10407279 Whirlpool Refrigerator Door Hinge
16W10407275 Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18VALVE
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21W11686675 Whirlpool Screw
22WPW10637669 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24W10854958 Whirlpool Refrigerator Screw
25SCREW
2667006425 Whirlpool Refrigerator Screw
27W10830288-includeCORE Whirlpool W10830288 Refrigerator LED Control Board + Core
28W10754591 Whirlpool Refrigerator Cover
29W11289496 Whirlpool Refrigerator Switch
30W11482027 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32W11482381 Whirlpool Refrigerator Water Tube
33COUPLER, DOOR
34W10212137 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICABLE PART)
36W10336736 Whirlpool Refrigerator Cover
