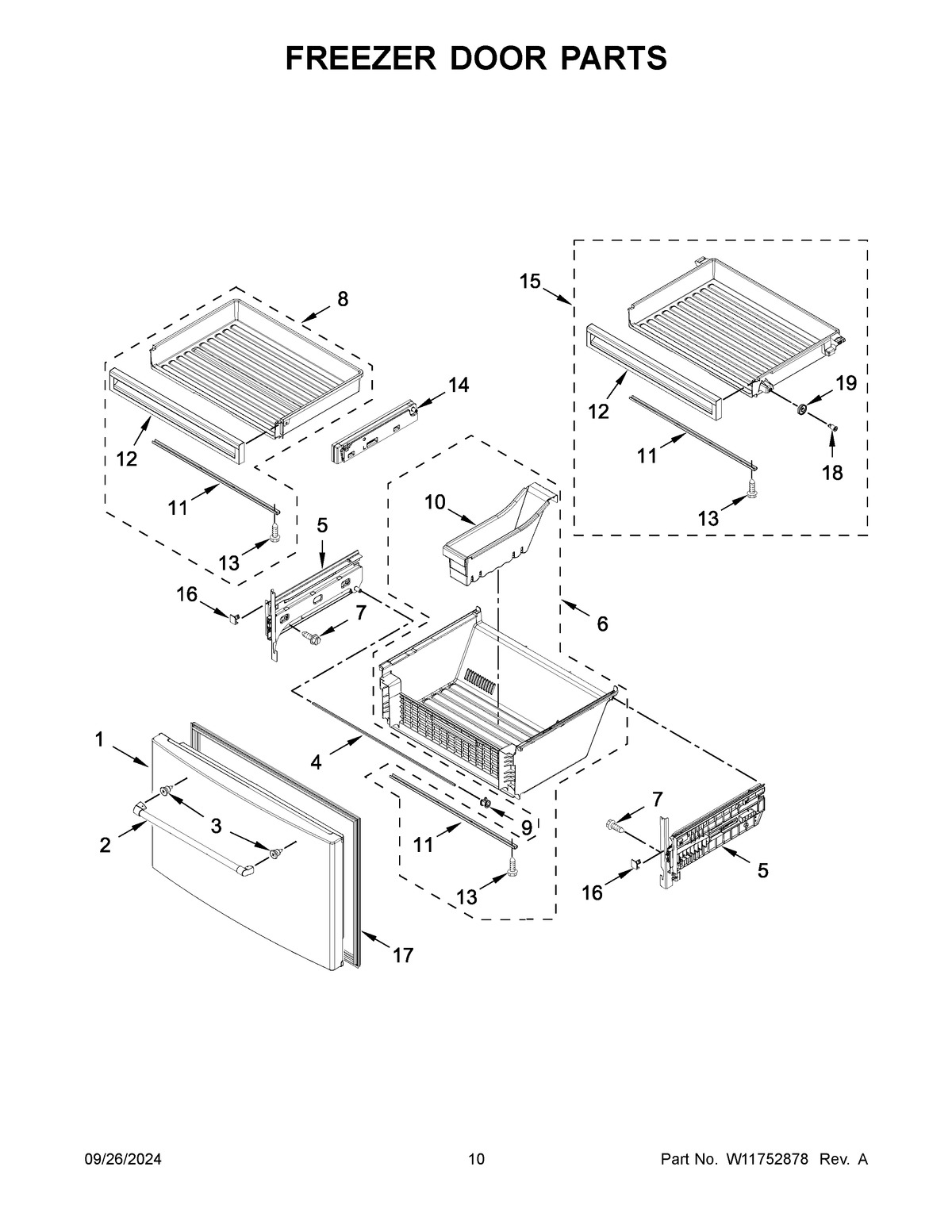

KRMF536RBS01 06 – FREEZER DOOR PARTS

Products

Position	Product
1	W11681452 Whirlpool FIP Door Assembly
2	W11499276 Whirlpool Refrigerator Handle
3	W11449276 Whirlpool Handle Support
4	WPW10503522 Whirlpool Refrigerator Shaft
5A	W11668672 Whirlpool Bracket
6	W10634640 Whirlpool Refrigerator Freezer Bin
7	WP67006908 Whirlpool Refrigerator Screw
8	W11387053 Whirlpool Refrigerator Freezer Bin
9	W10852685 Whirlpool Clip Assembly
10	W10562492 Whirlpool Divider
11	W11677723 Whirlpool Support
12	W11336585 Whirlpool Refrigerator Front Panel
13	WP489443 Whirlpool Refrigerator Screw
14A	W11161915 Whirlpool Refrigerator Bracket
14	W11131390 Whirlpool Refrigerator Bracket
15	W11387048 Whirlpool Refrigerator Freezer Bin
16	W10585151 Whirlpool Refrigerator Stop Pan
16A	W10585150 Whirlpool Refrigerator Stop Pan
17	W10407215 Whirlpool Door Gasket
18	W11573594 Whirlpool Refrigerator Axle
19	W11578839 Whirlpool Roller
