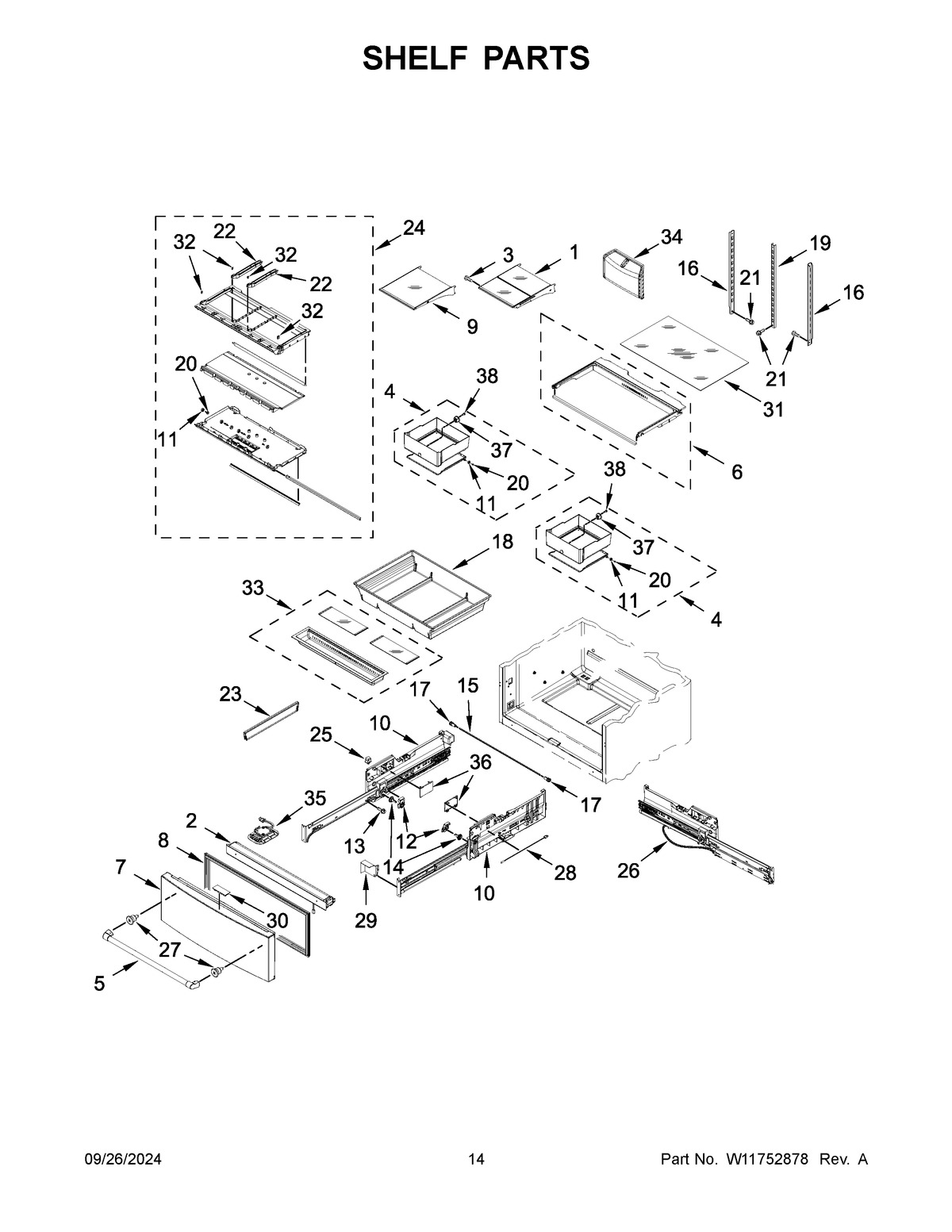

KRMF536RBS01 08 – SHELF PARTS

Products

Position	Product
1	WPW10737428 Whirlpool Refrigerator Glass Shelf
2	W11728384 Whirlpool Mullion Rail
3	W11400994 Whirlpool Refrigerator Screw
4	PAN-CRISPR
5	W11499276 Whirlpool Refrigerator Handle
6	ASSEMBLY, CRISPER COVER (INCLUDES FRONT SUPPORT)
7	DOOR, PANTRY (INCLUDES DOOR GASKET) (BLACK STAINLESS)
8	W10622445 Whirlpool Refrigerator FIP Gasket
9	W10807832 Whirlpool Refrigerator Glass Shelf
10A	ADAPTER, PANTRY (RIGHT HAND)
10	ADAPTER, PANTRY (LEFT HAND)
11	W10788795 Whirlpool Refrigerator Roller
12A	COVER, GEAR (RIGHT HAND)
12	COVER, GEAR (LEFT HAND)
13	12991702 Whirlpool Screw
14	GEAR, SPUR
15	SHAFT, RACK
16	W10467460 Whirlpool Refrigerator Ladder
17	COLLAR, GEAR
18	WPW10530656 Whirlpool Refrigerator Utility Pan
19	W10467461 Whirlpool Refrigerator Ladder
20	67006692 Whirlpool Refrigerator Screw
21	W10423561 Whirlpool Screw
22	GUIDE, CRISPER
23	DIVIDER, LARGE PANTRY
24	ASSEMBLY, FLOOR (INCLUDES HEATER)
25	W11123941 Whirlpool Refrigerator Switch
26	W11170612 Whirlpool Refrigerator Wire Harness
27	W11449276 Whirlpool Handle Support
28	W11168403 Whirlpool Refrigerator Thermistor
29	COVER, CONNECTOR
30	W11728344-includeCORE Whirlpool Electronic Control+Core
31	W11038526 Whirlpool Shelf Glass
32	12702901 Whirlpool Refrigerator Pad
33	W10858273 Whirlpool Refrigerator Bin
34	W10826105 Whirlpool Refrigerator Pro Service
35	W11483116 Whirlpool Refrigerator Module
36	W10731491 Whirlpool Refrigerator Cover
37	SPACER, CRISPER HANDLE
38	WPW10001160 Whirlpool Refrigerator Screw
