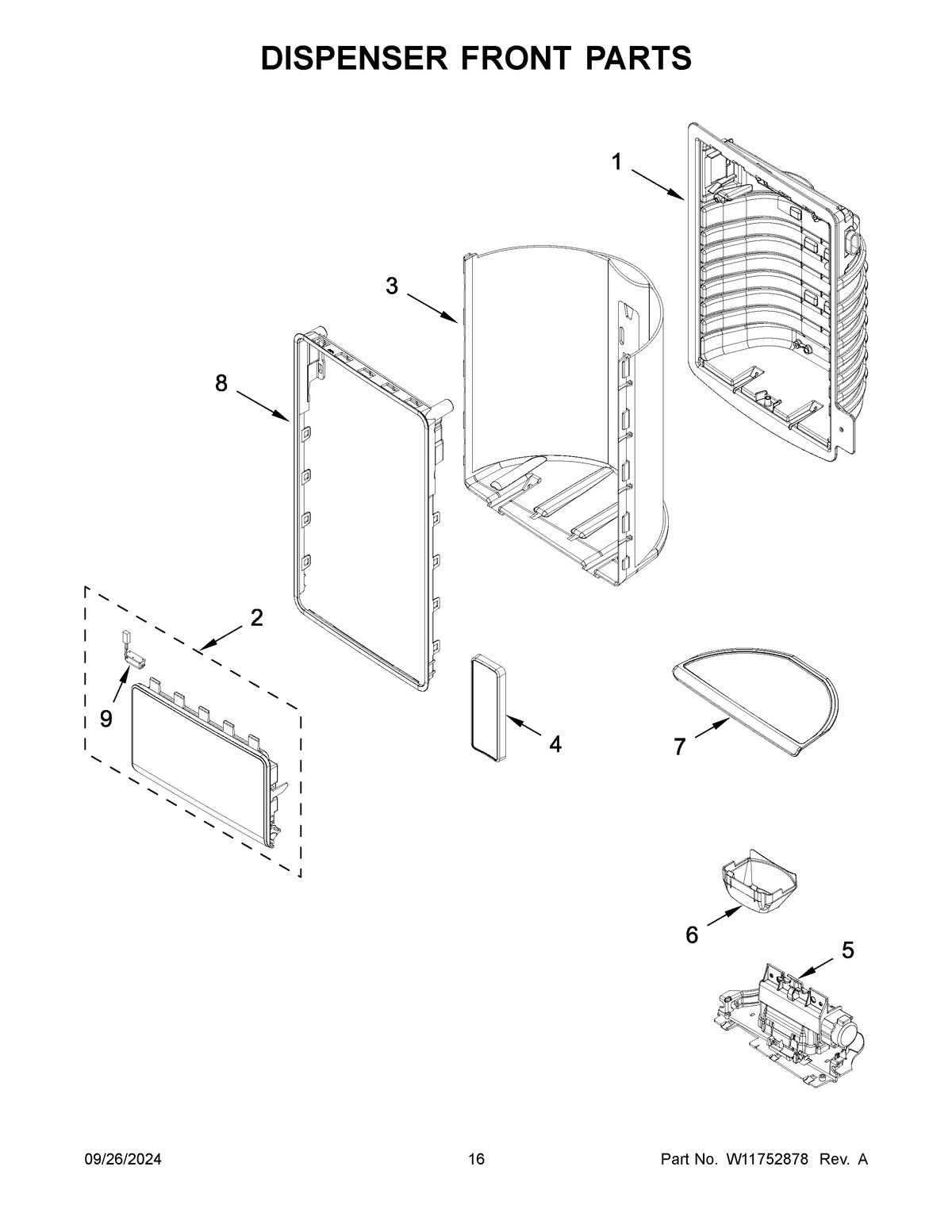

KRMF536RBS01 09 – DISPENSER FRONT PARTS

Written by

Products

Position	Product
1	HOUSING, DISPENSER (NOT SERVICED)
2	PANEL-UI + CORE
3	W10819058 Whirlpool Refrigerator Shield
4	W10853387 Whirlpool Refrigerator Pad
5	WPW10577864 Whirlpool Refrigerator Ice Door
6	WPW10435760 Whirlpool Refrigerator Ice Guide
7	W11448765 Whirlpool Drip Tray
8	WPW10402180 Whirlpool Refrigerator Trim
9	W11290115 Whirlpool Refrigerator Light
