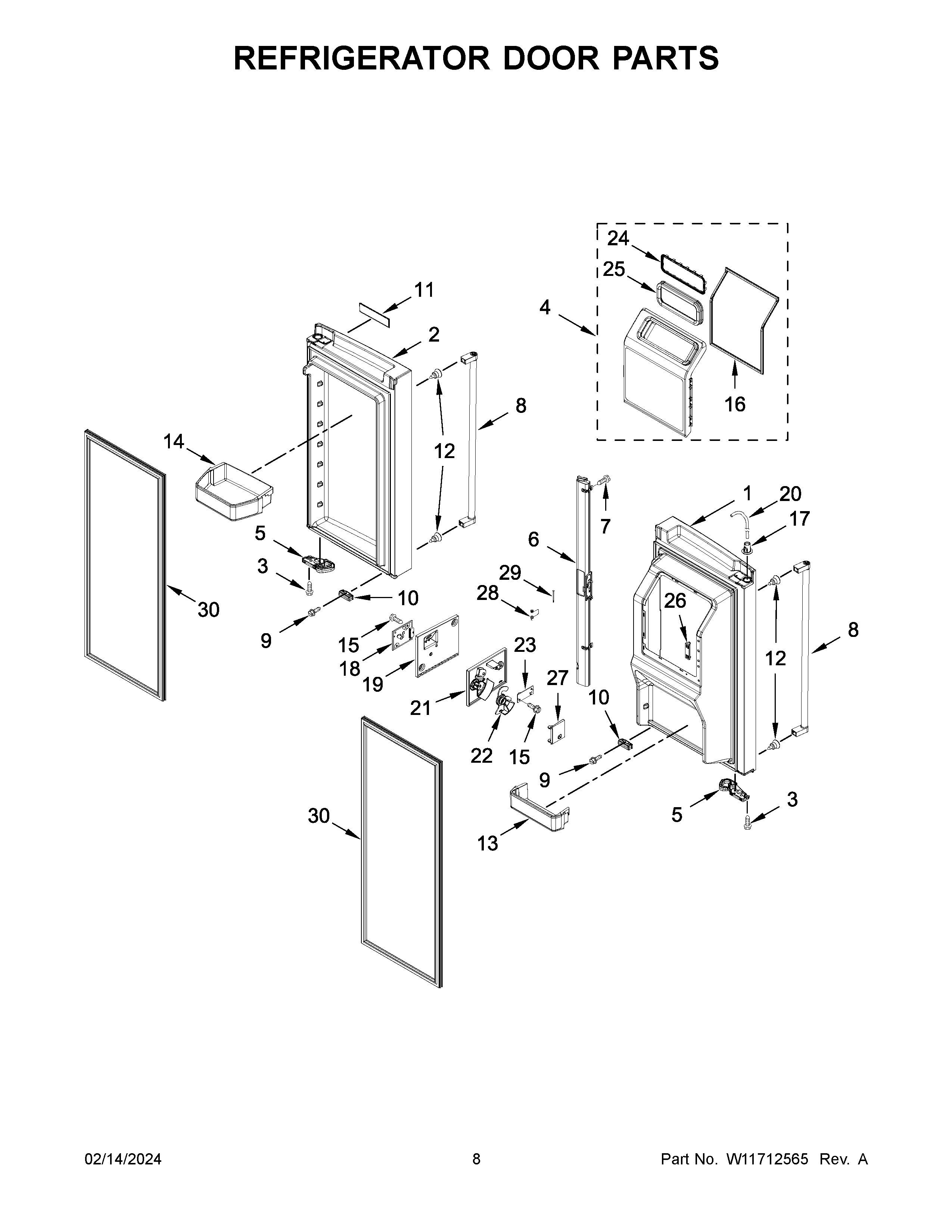

KRMF536RPS00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOR-FIP (DROP SHIP)
2	DOR-FIP (DROP SHIP)
4	W11399564 Whirlpool Refrigerator Ice Door
5A	W11212164 Whirlpool Refrigerator Door Closer
5	W10904595 Whirlpool Refrigerator Closer
6	RAIL-MULLN
7	W11311945 Whirlpool Refrigerator Screw
8	W11497229 Whirlpool Refrigerator Handle
9	WP98165 Whirlpool Screw
10	W11573367 Whirlpool Refrigerator Door Bumper
11	W10876598 Whirlpool Refrigerator Nameplate
12	W11449276 Whirlpool Handle Support
13	W11680598 Whirlpool Trivet
14	W11680597 Whirlpool Bin Containment Cover
15	2006254 Whirlpool Refrigerator Screw
16	W11625019 Whirlpool Refrigerator Gasket
17	W11315302 Whirlpool Refrigerator Clip
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	W10563326 Whirlpool Refrigerator Cover
20	WPW10499015 Whirlpool Refrigerator Water Tube
21	W10563309 Whirlpool Refrigerator Cover
22	W10563328 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	W11504381 Whirlpool Refrigerator Retainer
25	W11504378 Whirlpool Refrigerator Gasket
26	W11684620 Whirlpool Vent
27	W10563323 Whirlpool Refrigerator Flipper
28	WP2198635 Whirlpool Refrigerator Spring
29	W10331749 Whirlpool Refrigerator Door PIN
30	W10846057 Whirlpool Door Gasket
