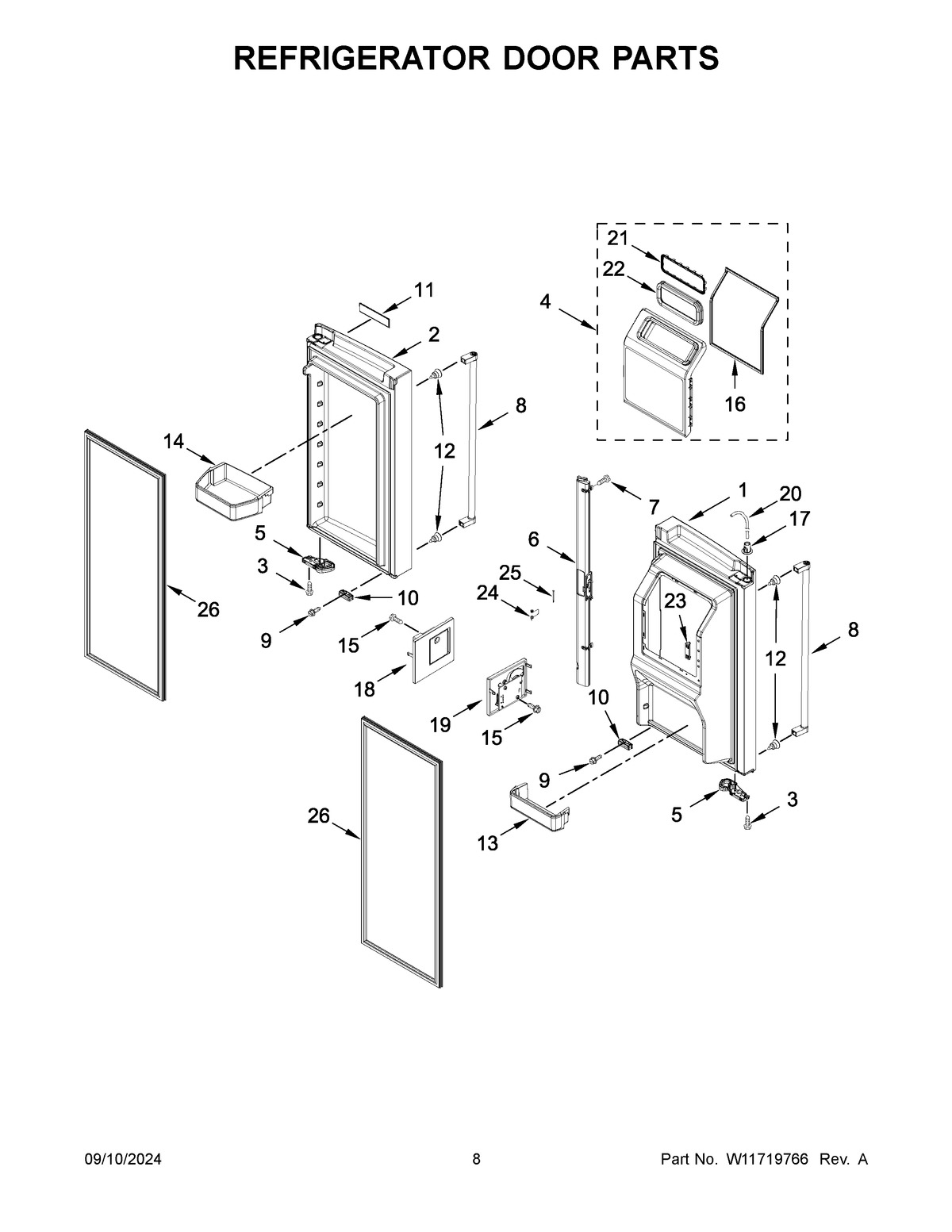

KRMF536RPS01 05 – REFRIGERATOR DOOR PARTS

KRMF536RPS01 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRMF536RPS01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOR-FIP (DROP SHIP)
2DOR-FIP (DROP SHIP)
4W11399564 Whirlpool Refrigerator Ice Door
5AW11212164 Whirlpool Refrigerator Door Closer
5W10904595 Whirlpool Refrigerator Closer
6RAIL-MULLN
7W11311945 Whirlpool Refrigerator Screw
8W11497229 Whirlpool Refrigerator Handle
9WP98165 Whirlpool Screw
10W11573367 Whirlpool Refrigerator Door Bumper
11W10876598 Whirlpool Refrigerator Nameplate
12W11449276 Whirlpool Handle Support
13W11680598 Whirlpool Trivet
14W11680597 Whirlpool Bin Containment Cover
152006254 Whirlpool Refrigerator Screw
16W11625019 Whirlpool Refrigerator Gasket
17W11315303 Whirlpool Refrigerator Clip
18BOARD AND COVER ASSEMBLY, EMITTER
19BOARD AND COVER ASSEMBLY, RECEIVER
20WPW10499015 Whirlpool Refrigerator Water Tube
21W11504381 Whirlpool Refrigerator Retainer
22W11504378 Whirlpool Refrigerator Gasket
23W11684620 Whirlpool Vent
24WP2198635 Whirlpool Refrigerator Spring
25W10331749 Whirlpool Refrigerator Door PIN
26W10846057 Whirlpool Door Gasket
