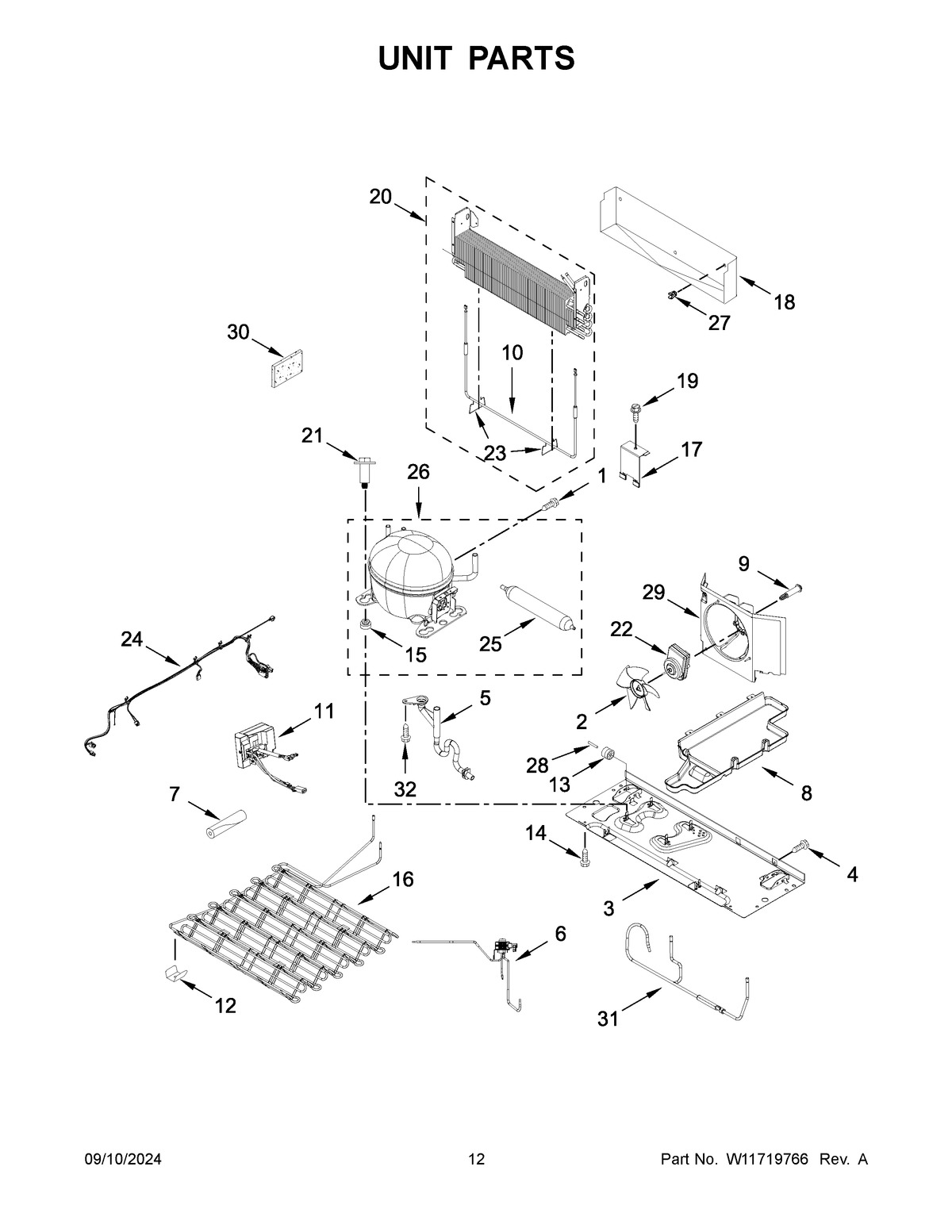

KRMF536RPS01 07 – UNIT PARTS

KRMF536RPS01 07 – UNIT PARTS

Written by

in

KRMF536RPS01 07 – UNIT PARTS

Products

PositionProduct
NIREFRIGERAN
1WPW10141625 Whirlpool Refrigerator Screw Assembly
2WP2188935 Whirlpool Refrigerator Fan Blade
3BASEPLATE, COMPRESSOR
467006425 Whirlpool Refrigerator Screw
5EXTENSION, DRAIN
6BW11506625 Whirlpool Refrigerator Coupler
6ASSEMBLY, 3 WAY VALVE (ALSO ORDER THE FOLLOWING LOKRING PARTS)
7SLEEVE
8W11225840 Whirlpool Refrigerator Evaporator Tray
9W10829281 Whirlpool Refrigerator Screw
10W11575359 Whirlpool Heater Assembly
11INVRTR-BOX
12W10683556 Whirlpool Refrigerator Clip
13WP67005149 Whirlpool Roller
14Screw
15WPW10169124 Whirlpool Refrigerator Grommet
16CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
17W10391376 Whirlpool Bracket Assembly
18W11408656 Whirlpool Refrigerator Drip Tray
19SCREW
20BW11506620 Whirlpool Refrigerator Coupler
20W11598434 Whirlpool Refrigerator Evaporator Repair
21W11417341 Whirlpool Refrigerator Screw
22W11127829 Whirlpool Refrigerator Condenser Motor
23W11380964 Whirlpool Clip Assembly
24W11679643 Whirlpool Wire Harness
25AW11504445 Whirlpool Refrigerator Coupler
25BW11506623 Whirlpool Refrigerator Coupler
25W11109499 Whirlpool Refrigerator Tube
26BW11504415 Whirlpool Refrigerator Coupler
26CW11506621 Whirlpool Refrigerator Coupler
26COMPRESSOR (ALSO ORDER
26AW11504431 Whirlpool Microwave Coupler
26DW11506635 Whirlpool Refrigerator Valve Coupler
27CLIP, EVAP (2)
2867006434 Whirlpool Axle Pin
29WPW10406719 Whirlpool Refrigerator Shroud
30W11553819 Whirlpool Refrigerator Insulation
31WPL W11616171
32W10141518 Whirlpool Refrigerator Screw
