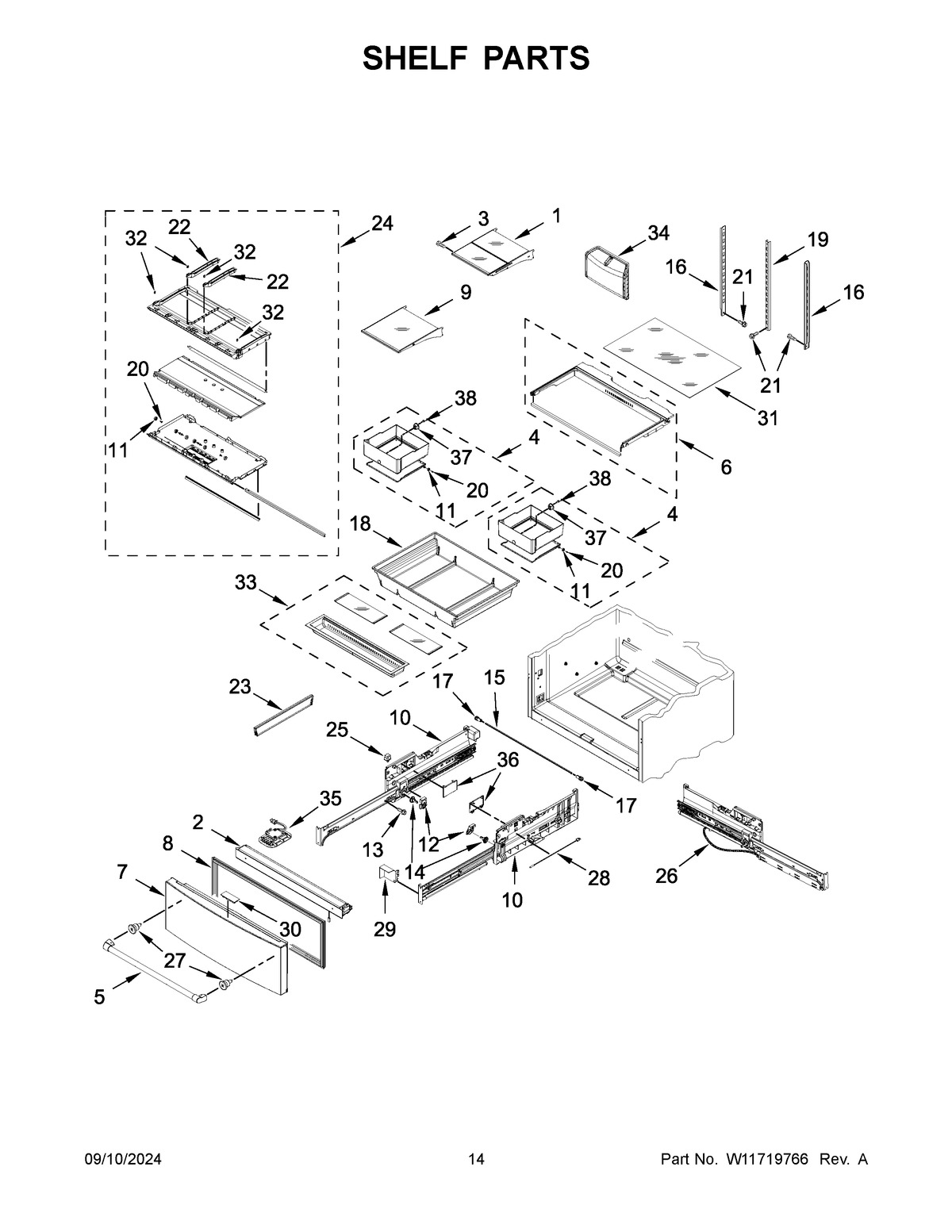

KRMF536RPS01 08 – SHELF PARTSadmin2025-04-26T12:30:23+00:00KRMF536RPS01 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | WPW10737428 Whirlpool Refrigerator Glass Shelf |
| 2 | ASSEMBLY, SECONDARY MULLION |
| 3 | W11400994 Whirlpool Refrigerator Screw |
| 4 | PAN-CRISPR |
| 5 | W11499276 Whirlpool Refrigerator Handle |
| 6 | ASSEMBLY, CRISPER COVER (INCLUDES FRONT SUPPORT) |
| 7 | W11740854 Whirlpool FIP Door |
| 8 | W10622446 Whirlpool Refrigerator Door Gasket |
| 9 | W10807832 Whirlpool Refrigerator Glass Shelf |
| 10A | ADAPTER, PANTRY (RIGHT HAND) |
| 10 | ADAPTER, PANTRY (LEFT HAND) |
| 11 | W10788795 Whirlpool Refrigerator Roller |
| 12 | COVER, GEAR (LEFT HAND) |
| 12A | COVER, GEAR (RIGHT HAND) |
| 13 | 12991702 Whirlpool Screw |
| 14 | GEAR, SPUR |
| 15 | SHAFT, RACK |
| 16 | W10467460 Whirlpool Refrigerator Ladder |
| 17 | COLLAR, GEAR |
| 18 | WPW10530656 Whirlpool Refrigerator Utility Pan |
| 19 | W10467461 Whirlpool Refrigerator Ladder |
| 20 | 67006692 Whirlpool Refrigerator Screw |
| 21 | W10423561 Whirlpool Screw |
| 22 | GUIDE, CRISPER |
| 23 | DIVIDER, LARGE PANTRY |
| 24 | ASSEMBLY, FLOOR (INCLUDES HEATER) |
| 25 | W11123941 Whirlpool Refrigerator Switch |
| 26 | W11170612 Whirlpool Refrigerator Wire Harness |
| 27 | W11449276 Whirlpool Handle Support |
| 28 | W11168403 Whirlpool Refrigerator Thermistor |
| 29 | COVER, CONNECTOR |
| 30 | W11728344-includeCORE Whirlpool Electronic Control+Core |
| 31 | W11038526 Whirlpool Shelf Glass |
| 32 | 12702901 Whirlpool Refrigerator Pad |
| 33 | W10858273 Whirlpool Refrigerator Bin |
| 34 | W10826105 Whirlpool Refrigerator Pro Service |
| 35 | W11483116 Whirlpool Refrigerator Module |
| 36 | W10731491 Whirlpool Refrigerator Cover |
| 37 | SPACER, CRISPER HANDLE |
| 38 | WPW10001160 Whirlpool Refrigerator Screw |
