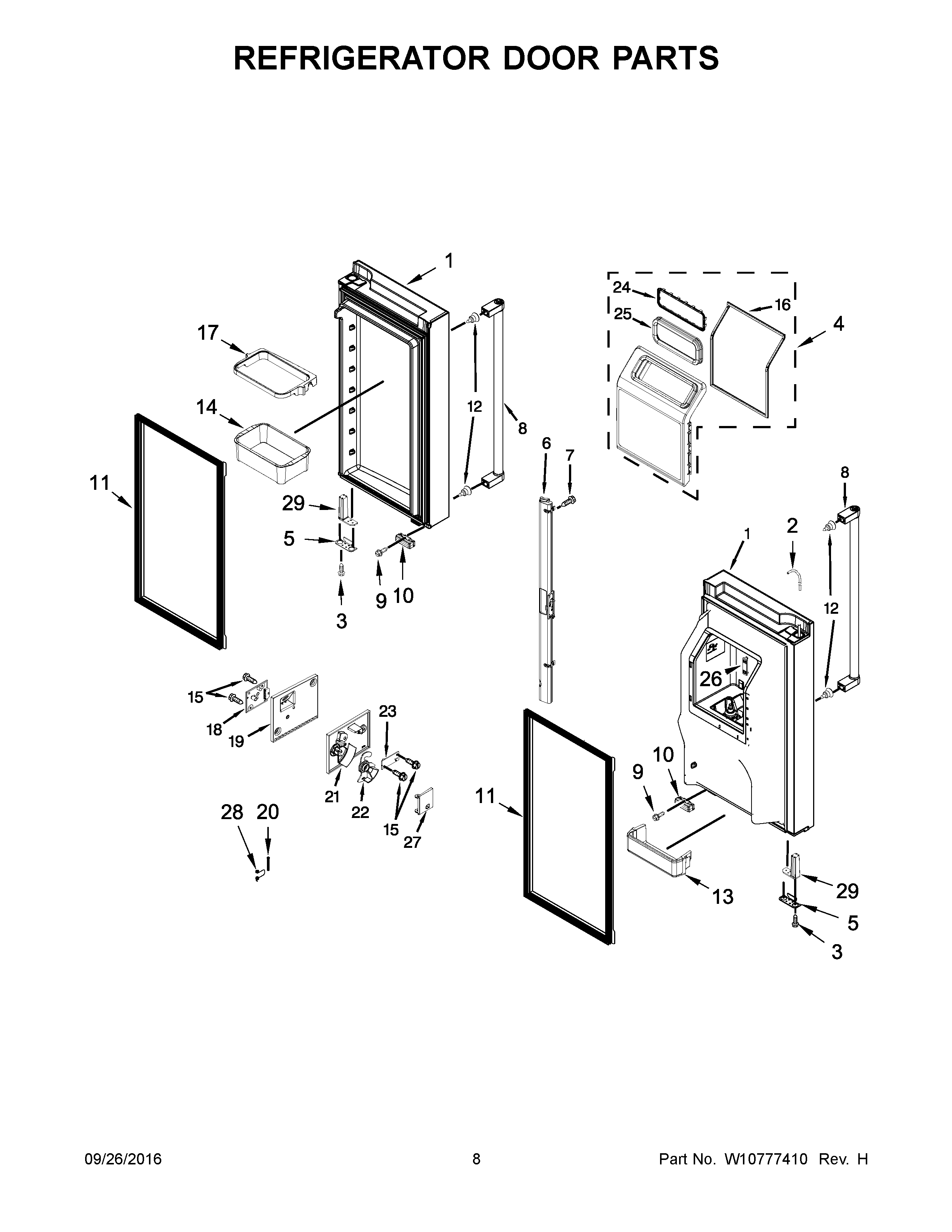

KRMF606ESS00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	W10815682 Whirlpool Refrigerator Stainless Steel Door Assembly
1	W10815693 Whirlpool Refrigerator Stainless Steel Door Assembly
2	W11126260 Whirlpool Refrigerator Water Tube
4	WPW10549590 Whirlpool Refrigerator Ice Door
5	W10708583 Whirlpool Refrigerator Door Stop
6	W11122876 Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W11497229 Whirlpool Refrigerator Handle
9	WP98165 Whirlpool Screw
10	W11573367 Whirlpool Refrigerator Door Bumper
11	W10846057 Whirlpool Door Gasket
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	W11026418 Whirlpool Refrigerator Trivet
14	W11026416 Whirlpool Refrigerator Cantilever Bin
15	2006254 Whirlpool Refrigerator Screw
16	W11624997 Whirlpool Refrigerator Gasket
17	W11098158 Whirlpool Refrigerator Frame Shelf
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	COVER, RECEIVER
20	WP2198634 Whirlpool Door Pin
21	W10258502 Whirlpool Refrigerator Cover
22	W10258540 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	WPW10400825 Whirlpool Refrigerator Retainer
25	WPW10347087 Whirlpool Refrigerator Ice Chute Gasket
26	VENT, THERMISTOR
27	FLIPPER
28	WP2198635 Whirlpool Refrigerator Spring
29A	W11188796 Whirlpool Refrigerator Closer
29	W11163783 Whirlpool Refrigerator Closer
