KRMF606ESS00 06 – FREEZER DOOR PARTS

KRMF606ESS00 06 – FREEZER DOOR PARTS

Written by

in

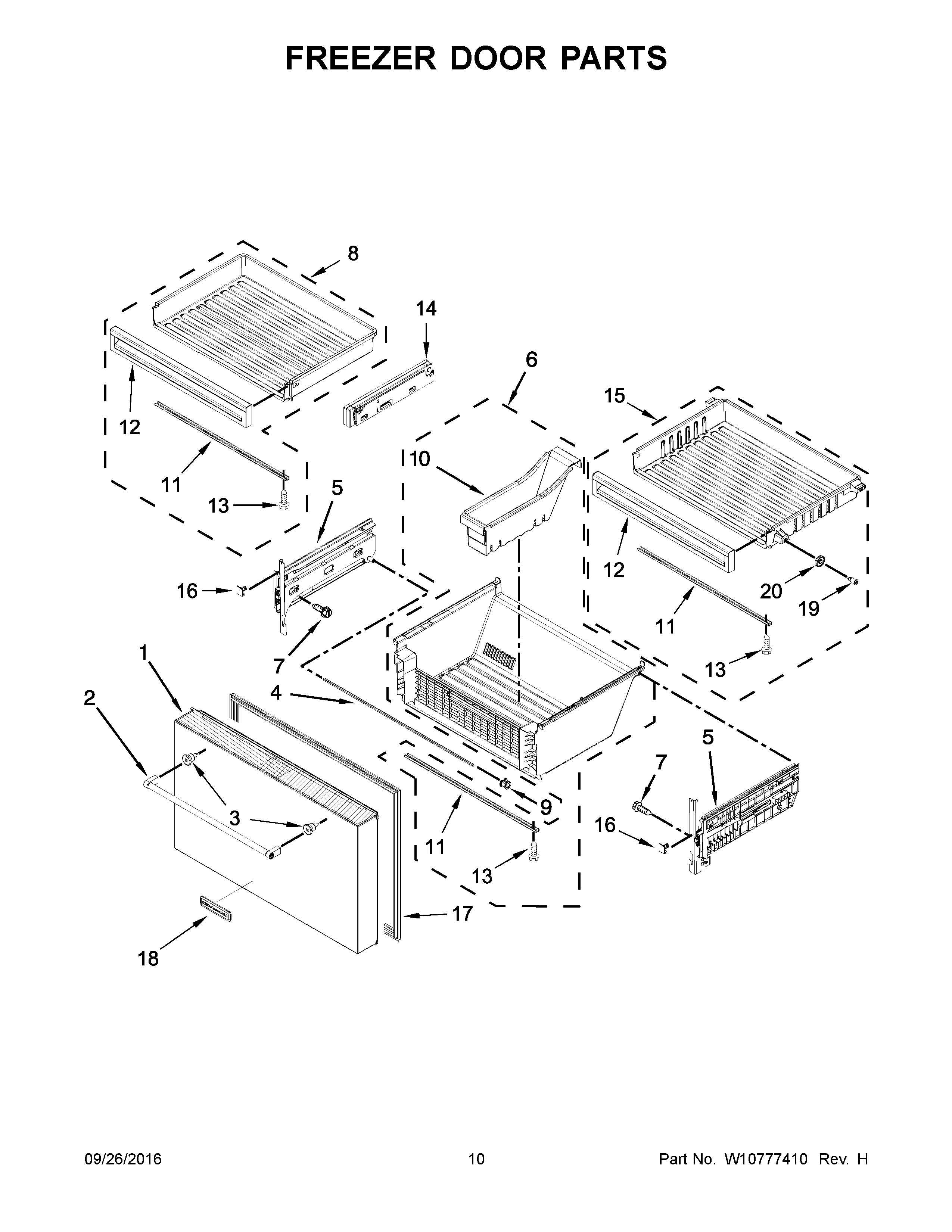

KRMF606ESS00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1W10815699 Whirlpool Refrigerator Stainless Steel Door Assembly
2W11488944 Whirlpool Refrigerator Handle
3W10920281 Whirlpool Screw
4WPW10503522 Whirlpool Refrigerator Shaft
5AW11668671 Whirlpool Refrigerator Left-Hand & Right-Hand Adapter Assembly
6W10680631 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8WPW10493169 Whirlpool Refrigerator Freezer Bin
9W10852685 Whirlpool Clip Assembly
10W10507444 Whirlpool Refrigerator Divider
11W11677723 Whirlpool Support
12W10882849 Whirlpool Refrigerator Front Pan
13WP489443 Whirlpool Refrigerator Screw
14BRACKET
14AW10858092 Whirlpool Refrigerator Bracket
15W10858802 Whirlpool Refrigerator Freezer Bin
16AWPW10485089 Whirlpool Refrigerator Pan Stop
16WPW10485096 Whirlpool Refrigerator Pan Stop
17GASKET-FIP GRAY
18W10839793 Whirlpool Refrigerator Nameplate
19W11573594 Whirlpool Refrigerator Axle
20W11578839 Whirlpool Roller
