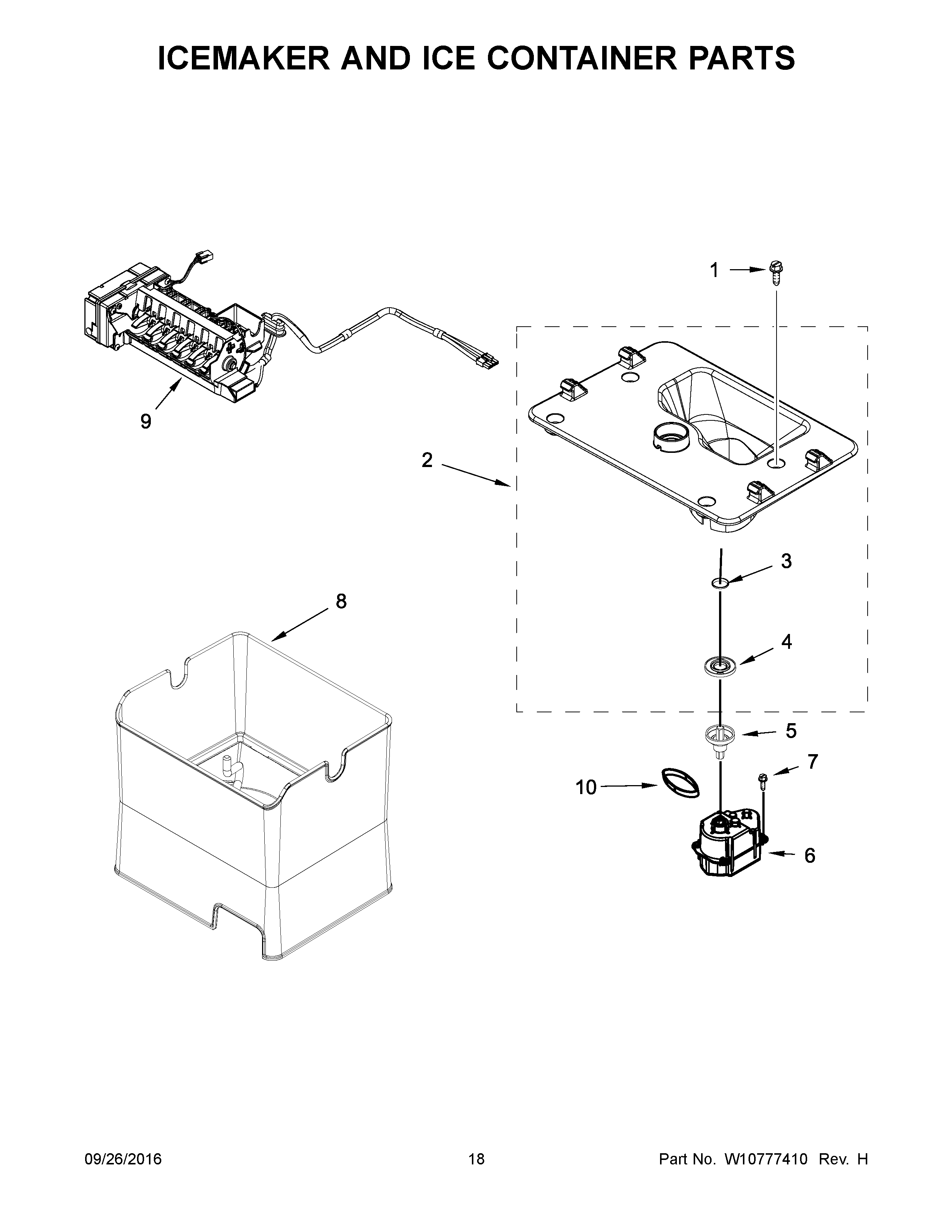

KRMF606ESS00 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
1	WPW10272364 Whirlpool Refrigerator Screw
2	W11347434 Whirlpool Refrigerator Plate
3	WP2198628 Whirlpool Door Seal
4	W10847834 Whirlpool Clip
5	W11509548 Whirlpool Ice Bucket Coupler
6	W10822606 Whirlpool Dishwasher Dispenser Motor
7	WP8281163 Whirlpool Refrigerator Screw
8	WPW10347093 Whirlpool Refrigerator Ice Maker Bucket Assembly
9	ICEMAKER
10	WPW10291905 Whirlpool Seal
