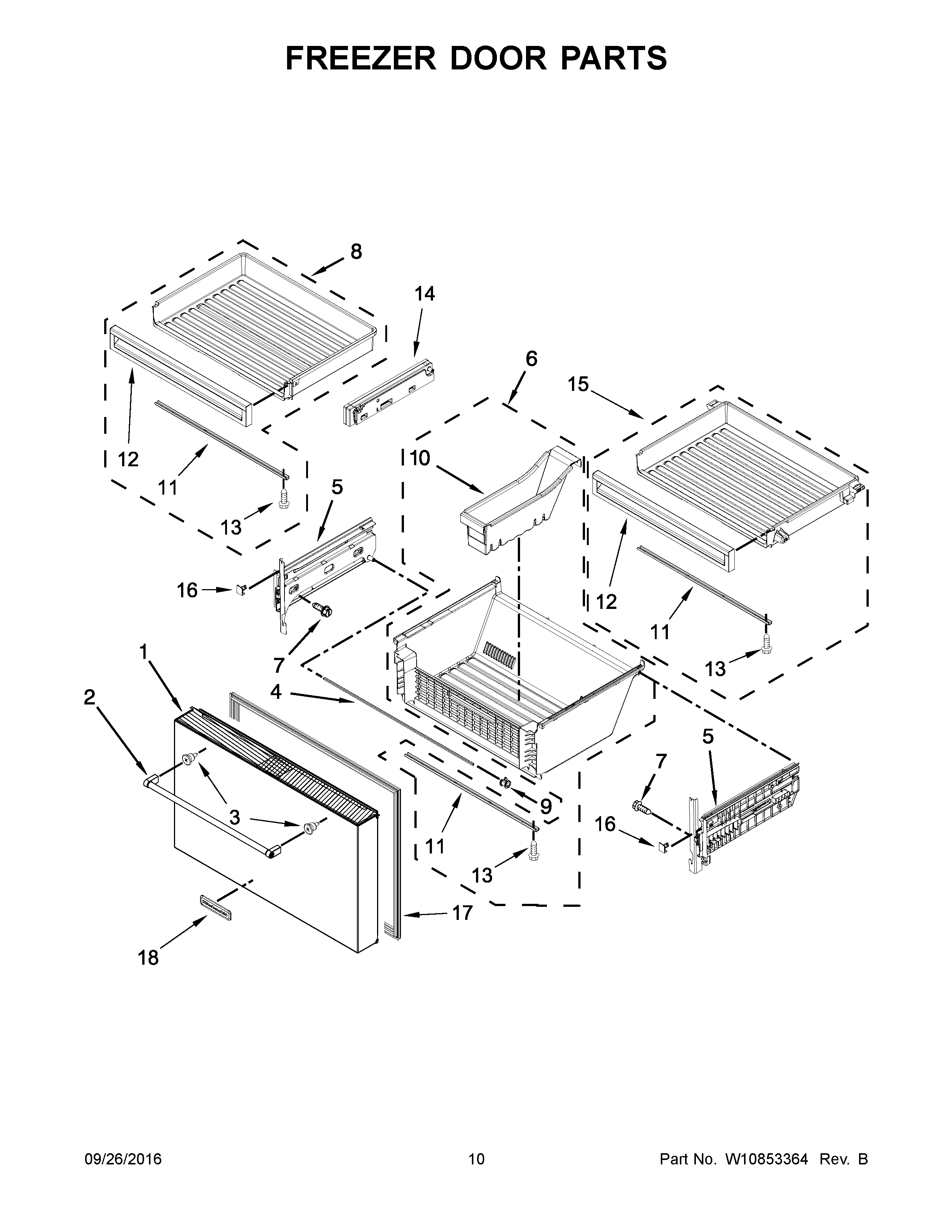

KRMF606ESS01 06 – FREEZER DOOR PARTS

Products

PositionProduct
1W10815699 Whirlpool Refrigerator Stainless Steel Door Assembly
2W11488944 Whirlpool Refrigerator Handle
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4WPW10503522 Whirlpool Refrigerator Shaft
5AW11668671 Whirlpool Refrigerator Left-Hand & Right-Hand Adapter Assembly
6W10680631 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8WPW10493169 Whirlpool Refrigerator Freezer Bin
9W10852685 Whirlpool Clip Assembly
10W10507444 Whirlpool Refrigerator Divider
11W11677723 Whirlpool Support
12W11175811 Whirlpool Refrigerator Front Panel
13WP489443 Whirlpool Refrigerator Screw
14AW10858092 Whirlpool Refrigerator Bracket
14BRACKET
15W10858802 Whirlpool Refrigerator Freezer Bin
16AWPW10485089 Whirlpool Refrigerator Pan Stop
16WPW10485096 Whirlpool Refrigerator Pan Stop
17GASKET-FIP GRAY
18W10839793 Whirlpool Refrigerator Nameplate
