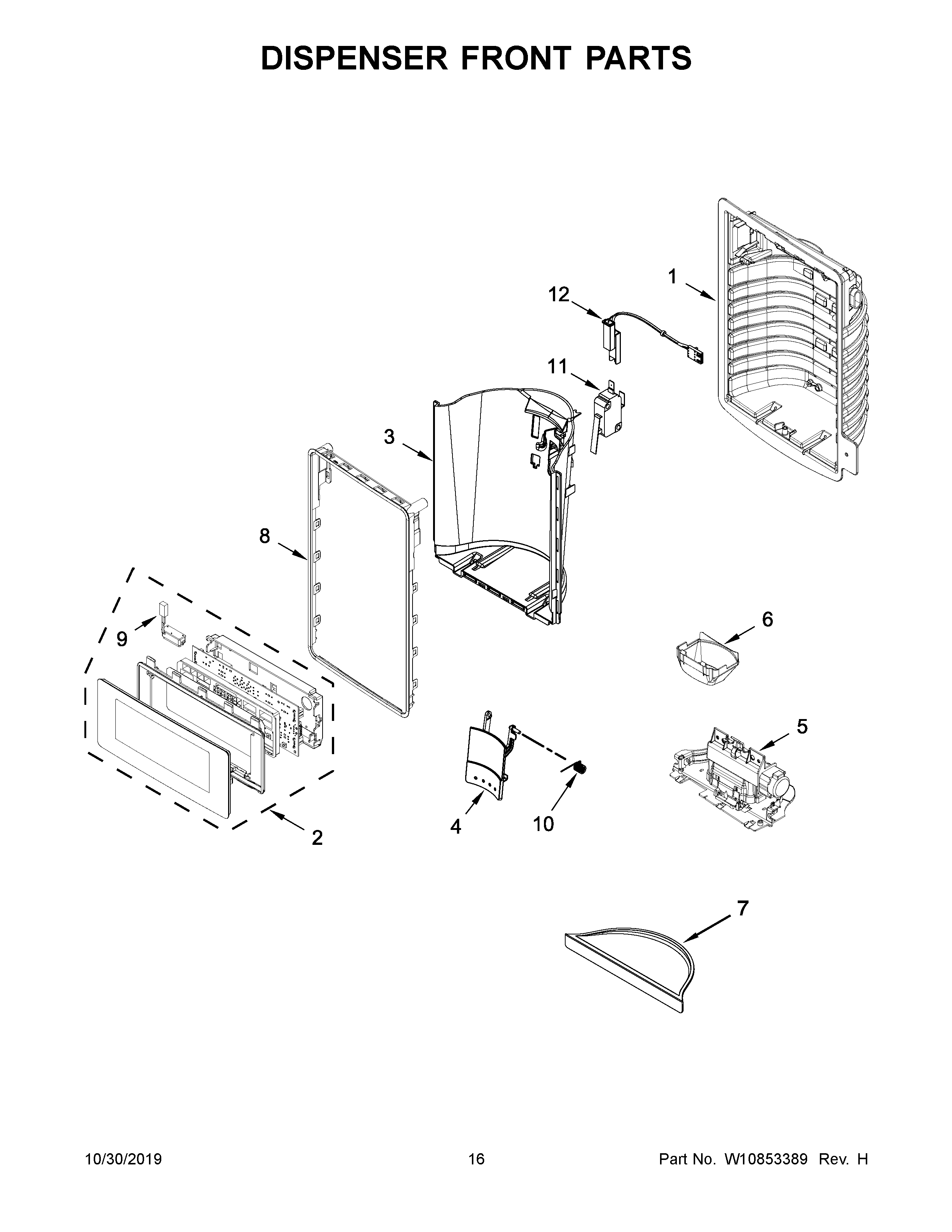

KRMF706EBS01 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11330971-includeCORE Whirlpool W11330971 Refrigerator Electronic Control Board with Core
3W11109614 Whirlpool Refrigerator Shield
4W11109510 Whirlpool Refrigerator Pad
5W11572058 Whirlpool Refrigerator Separator
6WPW10435760 Whirlpool Refrigerator Ice Guide
7W10909034 Whirlpool Refrigerator Dispenser Tray
8W11125932 Whirlpool Refrigerator Trim
9W11290115 Whirlpool Refrigerator Light
10W11109505 Whirlpool Refrigerator Spring
11W11087492 Whirlpool Refrigerator Water Dispenser Switch
12W11238426 Whirlpool Refrigerator Wire Harness
