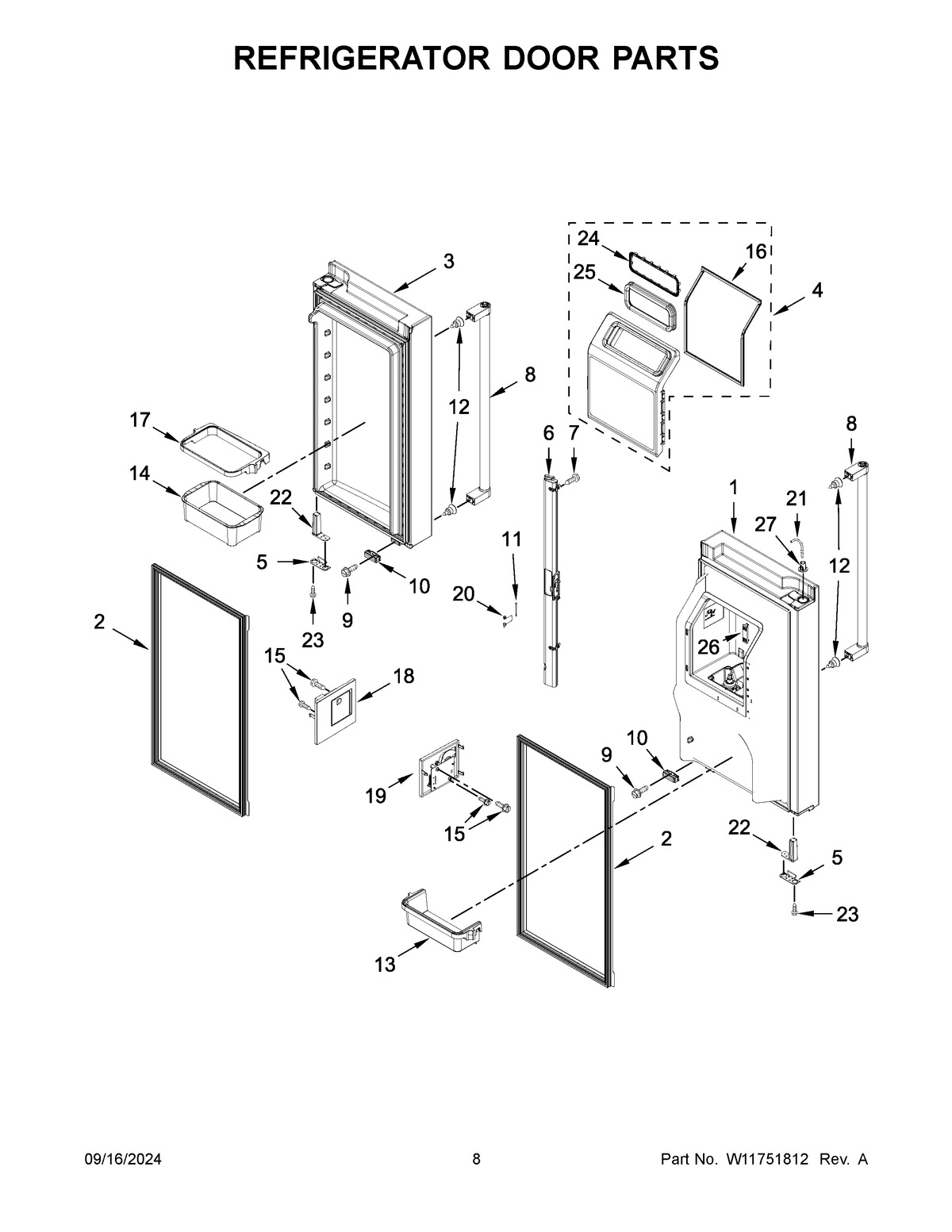

KRMF706EBS06 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11518697 Whirlpool Refrigerator Door Assembly
2W11544658 Whirlpool Gasket Assembly
3W10815686 Whirlpool Refrigerator Door Assembly
4W11399564 Whirlpool Refrigerator Ice Door
5W10708583 Whirlpool Refrigerator Door Stop
6W11256383 Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W11497229 Whirlpool Refrigerator Handle
9WP98165 Whirlpool Screw
10W10407187 Whirlpool Refrigerator Door Bumper
11W10331749 Whirlpool Refrigerator Door PIN
12W11449276 Whirlpool Handle Support
13W11026418 Whirlpool Refrigerator Trivet
14W11026416 Whirlpool Refrigerator Cantilever Bin
152006254 Whirlpool Refrigerator Screw
16W11625019 Whirlpool Refrigerator Gasket
17W11098158 Whirlpool Refrigerator Frame Shelf
18BOARD AND COVER ASSEMBLY, EMITTER
19BOARD AND COVER ASSEMBLY, RECEIVER
20WP2198635 Whirlpool Refrigerator Spring
21W11126260 Whirlpool Refrigerator Water Tube
22AW11188796 Whirlpool Refrigerator Closer
22W11163783 Whirlpool Refrigerator Closer
24W11504381 Whirlpool Refrigerator Retainer
25W11504378 Whirlpool Refrigerator Gasket
26W11684620 Whirlpool Vent
27W11315303 Whirlpool Refrigerator Clip
