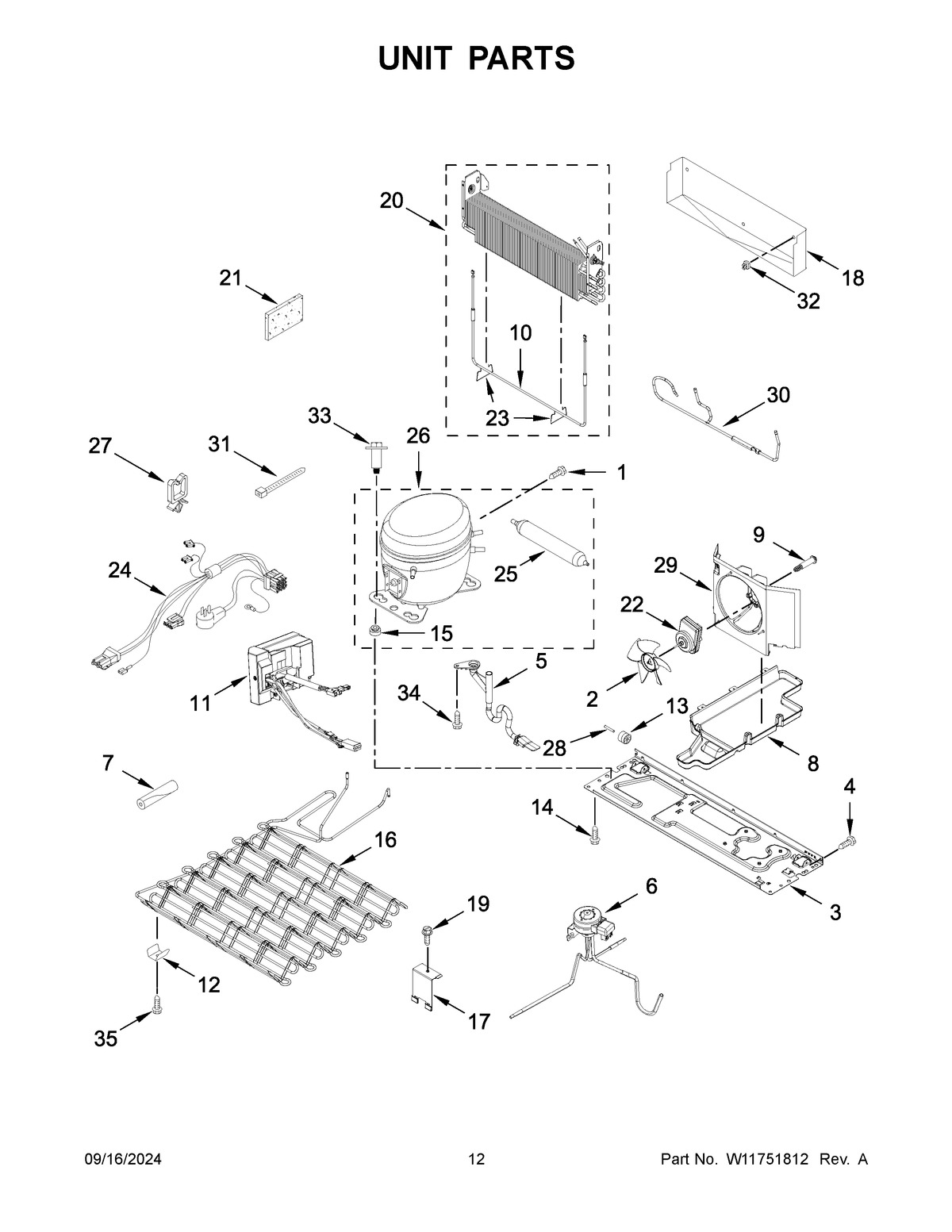

KRMF706EBS06 07 – UNIT PARTS
Written by
in
KRMF706EBS06 07 – UNIT PARTS
Products
Position
Product
NI
REFRIGERANT CHARGE 56 GRAMS (R600A)
1
WPW10141625 Whirlpool Refrigerator Screw Assembly
2
WP2188935 Whirlpool Refrigerator Fan Blade
3
BASEPLATE, COMPRESSOR
4
67006425 Whirlpool Refrigerator Screw
5
EXTENSION, DRAIN
6
ASSEMBLY, 3 WAY VALVE (ALSO ORDER THE FOLLOWING LOKRING PARTS)
6B
W11506625 Whirlpool Refrigerator Coupler
7
SLEEVE
8
W11225840 Whirlpool Refrigerator Evaporator Tray
9
W10829281 Whirlpool Refrigerator Screw
10
W11575359 Whirlpool Heater Assembly
11
INVRTR-BOX
12
W10683556 Whirlpool Refrigerator Clip
13
WP67005149 Whirlpool Roller
14
Screw
15
WPW10169124 Whirlpool Refrigerator Grommet
16
CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
17
W10391376 Whirlpool Bracket Assembly
18
W11408656 Whirlpool Refrigerator Drip Tray
19
W10142255 Whirlpool Screw
20
W11598434 Whirlpool Refrigerator Evaporator Repair
20B
W11506620 Whirlpool Refrigerator Coupler
21
W11553819 Whirlpool Refrigerator Insulation
22
W11127829 Whirlpool Refrigerator Condenser Motor
23
W11380964 Whirlpool Clip Assembly
24
W11679643 Whirlpool Wire Harness
25
W11109499 Whirlpool Refrigerator Tube
25B
W11506623 Whirlpool Refrigerator Coupler
25A
W11504445 Whirlpool Refrigerator Coupler
26B
W11504415 Whirlpool Refrigerator Coupler
26D
W11506635 Whirlpool Refrigerator Valve Coupler
26A
W11504431 Whirlpool Microwave Coupler
26C
W11506621 Whirlpool Refrigerator Coupler
26
COMPRESSOR (ALSO ORDER
27
CLIP
28
67006434 Whirlpool Axle Pin
29
WPW10406719 Whirlpool Refrigerator Shroud
30
WPL W11616171
31
WPW10339879 Whirlpool Wire Tie
32
CLIP, EVAP (2)
33
W11417341 Whirlpool Refrigerator Screw
34
W10141518 Whirlpool Refrigerator Screw
35
W11544659 Whirlpool Refrigerator Screw
←
