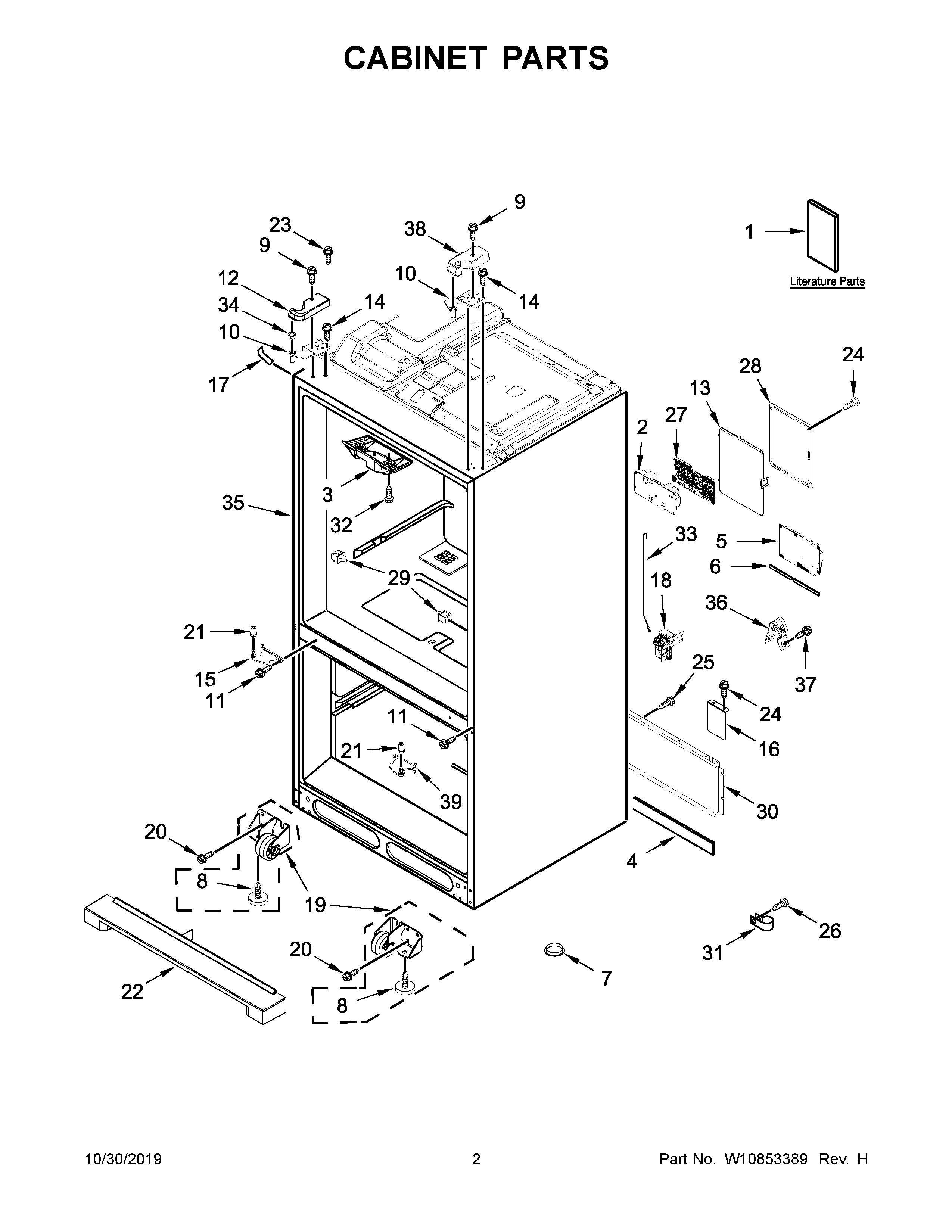

KRMF706ESS01 02 – CABINET PARTS

KRMF706ESS01 02 – CABINET PARTS

Written by

in

KRMF706ESS01 02 – CABINET PARTS

Products

Position	Product
1	TECH SHEET (ENGLISH)
1A	TECH SHEET (FRENCH)
1B	OWNERS MANUAL
1C	TECH SHEET, OWNERS MANUAL
2	WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
3	W10734555 Whirlpool Refrigerator Pivot Block
4	W10505487 Whirlpool Refrigerator Gasket
5	WPW10675033-includeCORE Whirlpool WPW10675033 Refrigerator Electronic Control Board + Core
6	W10415341 Whirlpool Refrigerator Gasket
7	A3076901 Whirlpool Refrigerator Plug
8	WPW10141622 Whirlpool Leveler
9	WP8281196 Whirlpool Screw
10	W11027247 Whirlpool Refrigerator Door Hinge
10A	W11736793 Whirlpool Door Hinge
11	W11573362 Whirlpool Screw Assembly
12A	W10781436 Whirlpool Refrigerator Cover
12	W10781438 Whirlpool Refrigerator Cover
13	W10277839 Whirlpool Refrigerator Cover
14	W11126052 Whirlpool Screw Assembly
15	W10691674 Whirlpool Refrigerator Door Hinge
15A	W11122872 Whirlpool Refrigerator Door Hinge
16	W10336736 Whirlpool Refrigerator Cover
17A	WP12587703AP Whirlpool Refrigerator Filler
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	W10865826 Whirlpool Refrigerator Water Inlet Valve
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	W11223833 Whirlpool Refrigerator Hinge Bushing
22A	W10911309 Whirlpool Toe Kick Plate
22	W11129933 Whirlpool Refrigerator Front Grille
23	W11214483 Whirlpool Refrigerator Screw
24	W11686675 Whirlpool Screw
26	67006425 Whirlpool Refrigerator Screw
27	W10804160-includeCORE Whirlpool W10804160 Refrigerator Electronic Control Board + Core
28	W10754591 Whirlpool Refrigerator Cover
29	W11289496 Whirlpool Refrigerator Switch
30	W11482027 Whirlpool Refrigerator Back Cover
31	W11456069 Whirlpool Refrigerator Clamp
32	W10854958 Whirlpool Refrigerator Screw
33	W11209890 Whirlpool Refrigerator Water Tube
34	W10705239 Whirlpool Refrigerator Grommet
35	CABINET (NOT A SERVICEABLE PART)
36	549193 Whirlpool Refrigerator Power Clamp
37	SCREW
38	W10709867 Whirlpool Refrigerator Cover
38A	W10709866 Whirlpool Refrigerator Cover
39A	W11167119 Whirlpool Refrigerator Door Hinge
39	W10691700 Whirlpool Refrigerator Door Hinge
