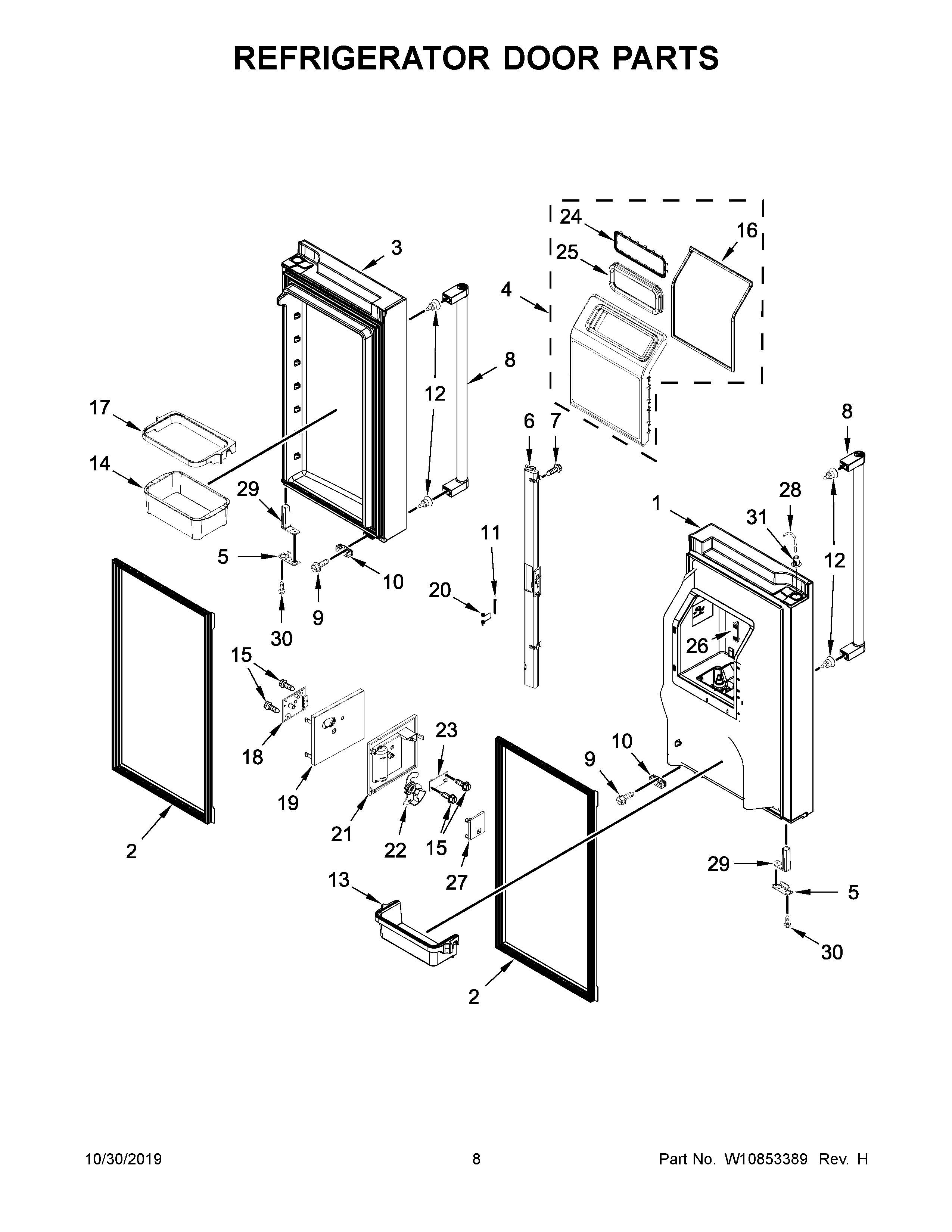

KRMF706ESS01 05 – REFRIGERATOR DOOR PARTS

KRMF706ESS01 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRMF706ESS01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11158592 Whirlpool Tool
1	W10815694 Whirlpool Refrigerator Door Assembly
1A	W10815695 Whirlpool Refrigerator Stainless Steel Door Assembly
2	W11544658 Whirlpool Gasket Assembly
2A	W10846057 Whirlpool Door Gasket
3	W10815686 Whirlpool Refrigerator Door Assembly
3A	W10815687 Whirlpool Refrigerator Stainless Steel Door Assembly
4	W11399564 Whirlpool Refrigerator Ice Door
5	W10708583 Whirlpool Refrigerator Door Stop
6A	W11176246 Whirlpool Refrigerator Mullion Rail
6	W11256383 Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W11497229 Whirlpool Refrigerator Handle
9	WP98165 Whirlpool Screw
10A	W11573367 Whirlpool Refrigerator Door Bumper
10	W10407187 Whirlpool Refrigerator Door Bumper
11	W10331749 Whirlpool Refrigerator Door PIN
12	W11449276 Whirlpool Handle Support
13	W11026418 Whirlpool Refrigerator Trivet
14	W11026416 Whirlpool Refrigerator Cantilever Bin
15	2006254 Whirlpool Refrigerator Screw
16	W11625019 Whirlpool Refrigerator Gasket
17	W11098158 Whirlpool Refrigerator Frame Shelf
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	W10563326 Whirlpool Refrigerator Cover
20	WP2198635 Whirlpool Refrigerator Spring
21	W10563309 Whirlpool Refrigerator Cover
22	W10563328 Whirlpool Refrigerator Slide
23	W10870822 Whirlpool Refrigerator Electronic Control Board
24	W11504381 Whirlpool Refrigerator Retainer
25	W11504378 Whirlpool Refrigerator Gasket
26	W11684620 Whirlpool Vent
27	W10563323 Whirlpool Refrigerator Flipper
28	W11126260 Whirlpool Refrigerator Water Tube
29A	W11188796 Whirlpool Refrigerator Closer
29	W11163783 Whirlpool Refrigerator Closer
31	W11315303 Whirlpool Refrigerator Clip
