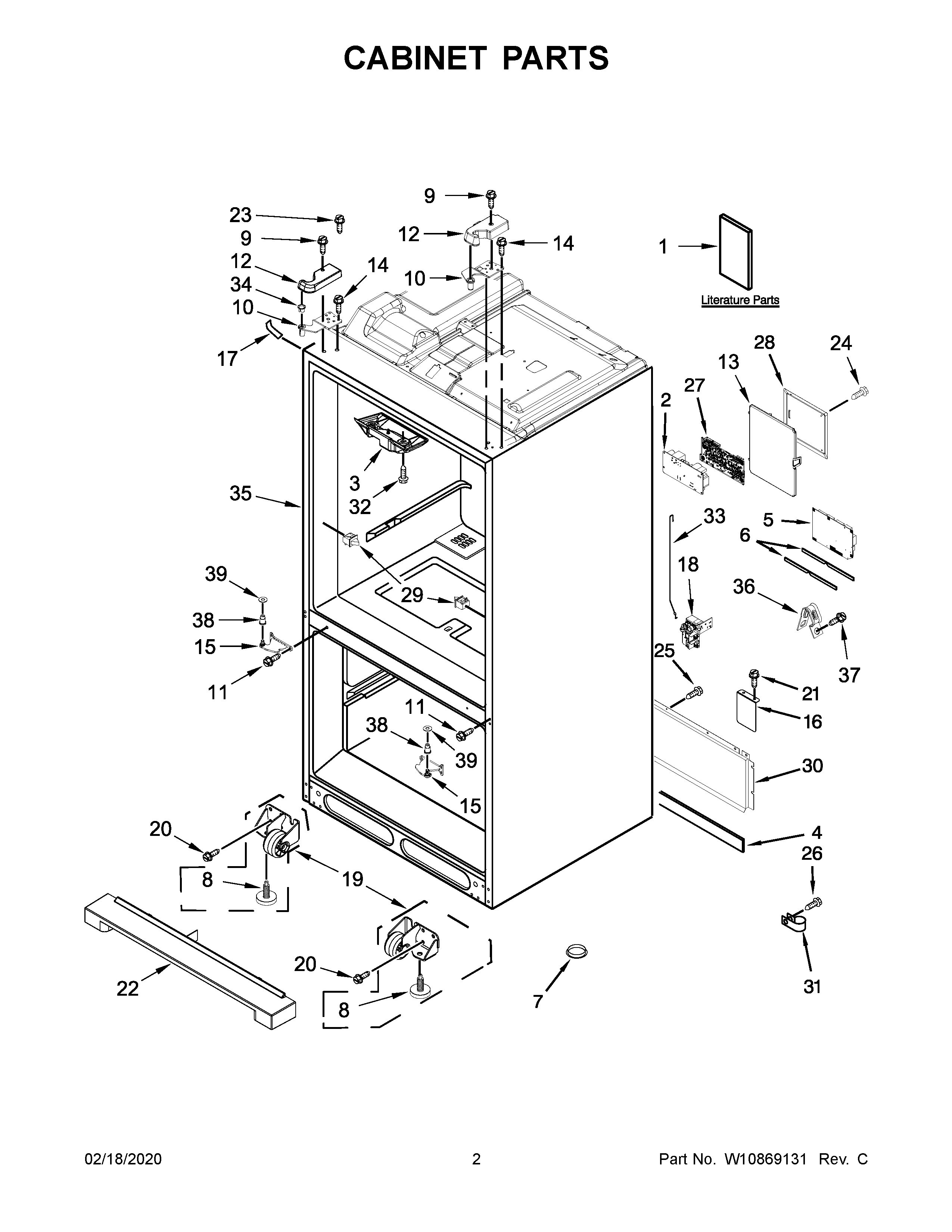

KRMF706ESS02 02 – CABINET PARTS

KRMF706ESS02 02 – CABINET PARTS

Written by

in

KRMF706ESS02 02 – CABINET PARTS

Products

PositionProduct
1BOWNERS MANUAL
1CENERGY GUIDE
1TECH SHEET (ENGLISH)
1ATECH SHEET (FRENCH)
2WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
3W10734555 Whirlpool Refrigerator Pivot Block
4W10505487 Whirlpool Refrigerator Gasket
5WPW10675033-includeCORE Whirlpool WPW10675033 Refrigerator Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10AW11736793 Whirlpool Door Hinge
10W11027247 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12W10781436 Whirlpool Refrigerator Cover
12AW10709866 Whirlpool Refrigerator Cover
13W10277839 Whirlpool Refrigerator Cover
14W11126052 Whirlpool Screw Assembly
15AW11167119 Whirlpool Refrigerator Door Hinge
15W11122872 Whirlpool Refrigerator Door Hinge
16W10336736 Whirlpool Refrigerator Cover
17WP12587703AP Whirlpool Refrigerator Filler
18W10865826 Whirlpool Refrigerator Water Inlet Valve
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WP33001882 Whirlpool Screw
22W10911309 Whirlpool Toe Kick Plate
23W11214483 Whirlpool Refrigerator Screw
24W11686675 Whirlpool Screw
2667006425 Whirlpool Refrigerator Screw
27W10804160-includeCORE Whirlpool W10804160 Refrigerator Electronic Control Board + Core
28W10754591 Whirlpool Refrigerator Cover
29W11123941 Whirlpool Refrigerator Switch
30COVER, UNIT
31W11456069 Whirlpool Refrigerator Clamp
32W10854958 Whirlpool Refrigerator Screw
33W11209890 Whirlpool Refrigerator Water Tube
34W10705239 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36549193 Whirlpool Refrigerator Power Clamp
37SCREW
38W11223833 Whirlpool Refrigerator Hinge Bushing
39W11109515 Whirlpool Refrigerator Washer
