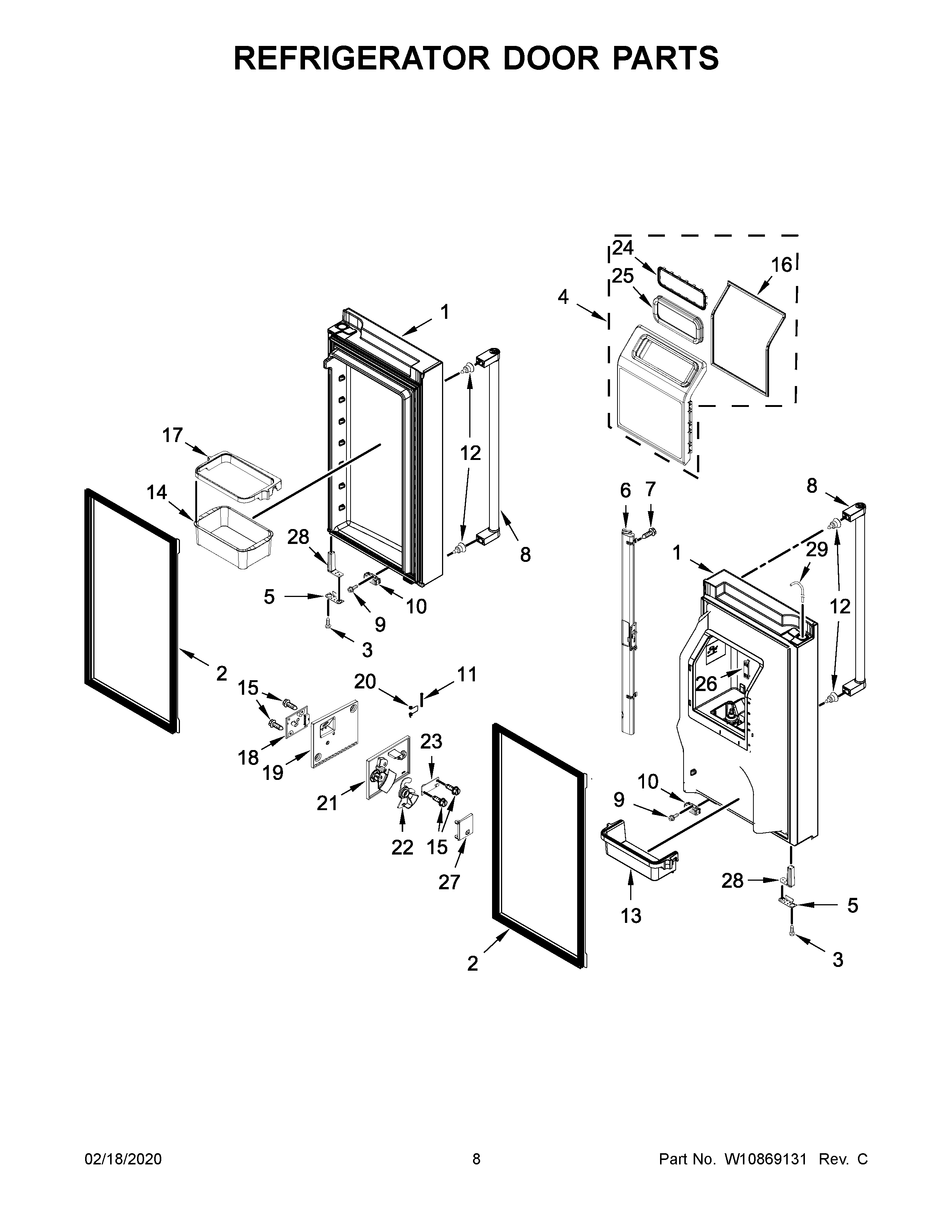

KRMF706ESS02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1AW10815687 Whirlpool Refrigerator Stainless Steel Door Assembly
1W10815695 Whirlpool Refrigerator Stainless Steel Door Assembly
2W10846057 Whirlpool Door Gasket
4W11399564 Whirlpool Refrigerator Ice Door
5W10708583 Whirlpool Refrigerator Door Stop
6W11176246 Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W11497229 Whirlpool Refrigerator Handle
9WP98165 Whirlpool Screw
10W11573367 Whirlpool Refrigerator Door Bumper
11W10331749 Whirlpool Refrigerator Door PIN
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13W11026418 Whirlpool Refrigerator Trivet
14W11026416 Whirlpool Refrigerator Cantilever Bin
152006254 Whirlpool Refrigerator Screw
16W11625019 Whirlpool Refrigerator Gasket
17W11098158 Whirlpool Refrigerator Frame Shelf
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19W10563326 Whirlpool Refrigerator Cover
20WP2198635 Whirlpool Refrigerator Spring
21W10563309 Whirlpool Refrigerator Cover
22W10563328 Whirlpool Refrigerator Slide
23W10870822 Whirlpool Refrigerator Electronic Control Board
24W11504381 Whirlpool Refrigerator Retainer
25W11504378 Whirlpool Refrigerator Gasket
26W11684620 Whirlpool Vent
27W10563323 Whirlpool Refrigerator Flipper
28AW11188796 Whirlpool Refrigerator Closer
28W11163783 Whirlpool Refrigerator Closer
29W11126260 Whirlpool Refrigerator Water Tube
