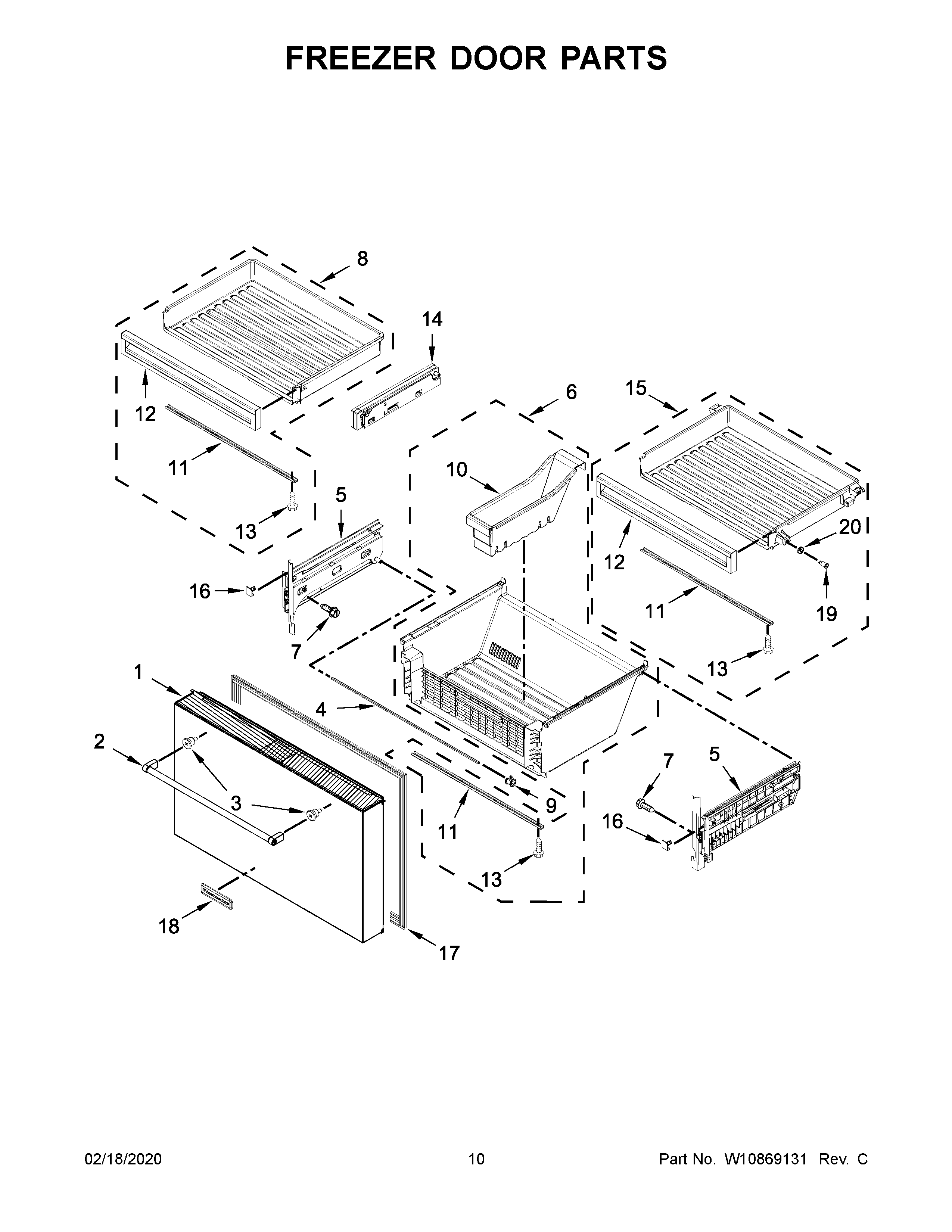

KRMF706ESS02 06 – FREEZER DOOR PARTS

KRMF706ESS02 06 – FREEZER DOOR PARTS

Written by

in

KRMF706ESS02 06 – FREEZER DOOR PARTS

Products

PositionProduct
1W10815701 Whirlpool Refrigerator Stainless Steel Door Assembly
2W11488944 Whirlpool Refrigerator Handle
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4WPW10503522 Whirlpool Refrigerator Shaft
5W11668672 Whirlpool Bracket
6W10634640 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8W11387053 Whirlpool Refrigerator Freezer Bin
9W10852685 Whirlpool Clip Assembly
10W10562492 Whirlpool Divider
11W11677723 Whirlpool Support
12W11336585 Whirlpool Refrigerator Front Panel
13WP489443 Whirlpool Refrigerator Screw
14W11131390 Whirlpool Refrigerator Bracket
14AW11161915 Whirlpool Refrigerator Bracket
15W11387048 Whirlpool Refrigerator Freezer Bin
16W10585151 Whirlpool Refrigerator Stop Pan
16AW10585150 Whirlpool Refrigerator Stop Pan
17GASKET-FIP GRAY
18W10839793 Whirlpool Refrigerator Nameplate
19W11573594 Whirlpool Refrigerator Axle
20W11578839 Whirlpool Roller
