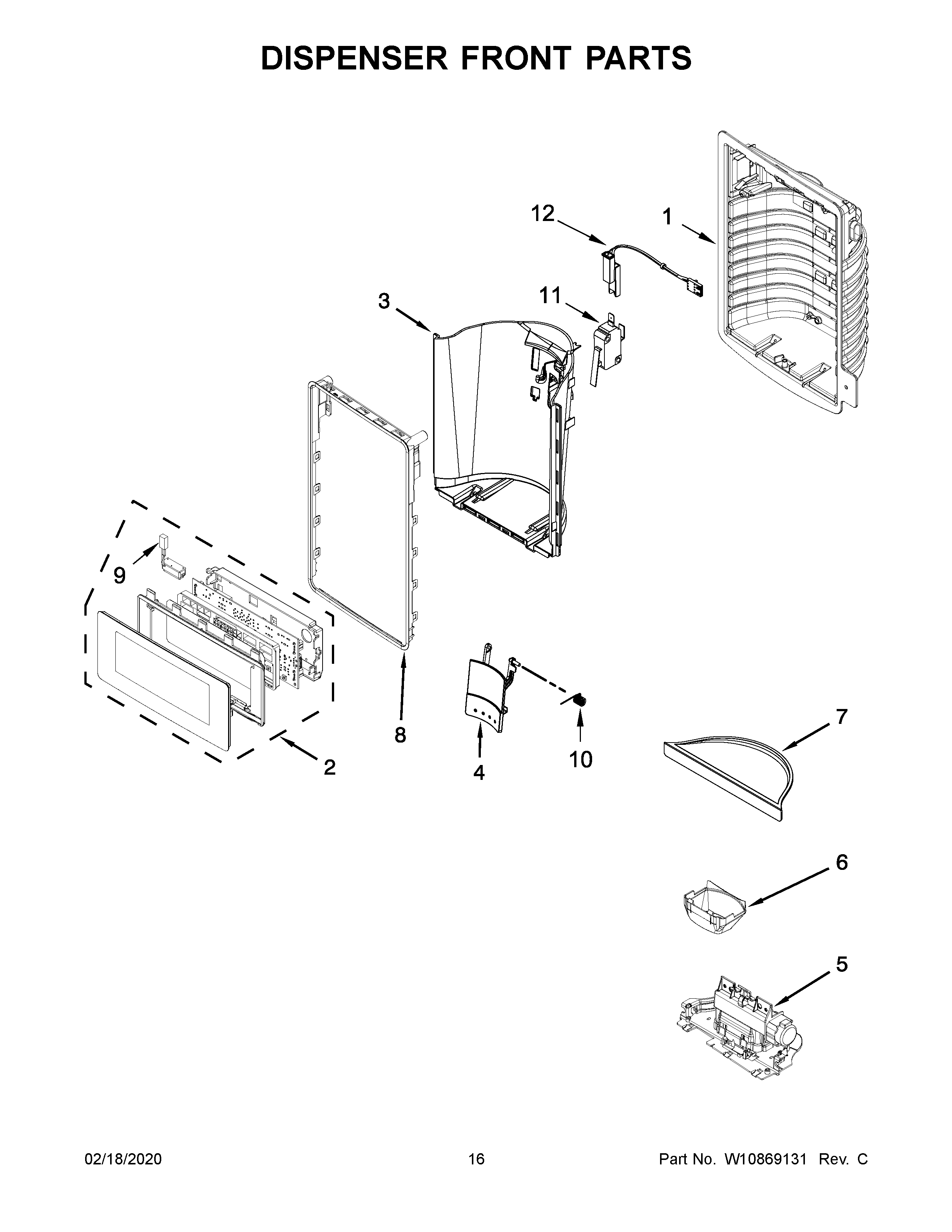

KRMF706ESS02 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10870824 Whirlpool Refrigerator Electronic Control Board
3	W11109614 Whirlpool Refrigerator Shield
4	W11109510 Whirlpool Refrigerator Pad
5	W11572058 Whirlpool Refrigerator Separator
6	WPW10435760 Whirlpool Refrigerator Ice Guide
7	W10909034 Whirlpool Refrigerator Dispenser Tray
8	W11125932 Whirlpool Refrigerator Trim
9	W11290115 Whirlpool Refrigerator Light
10	W11109505 Whirlpool Refrigerator Spring
11	W11087492 Whirlpool Refrigerator Water Dispenser Switch
12	W11238426 Whirlpool Refrigerator Wire Harness
