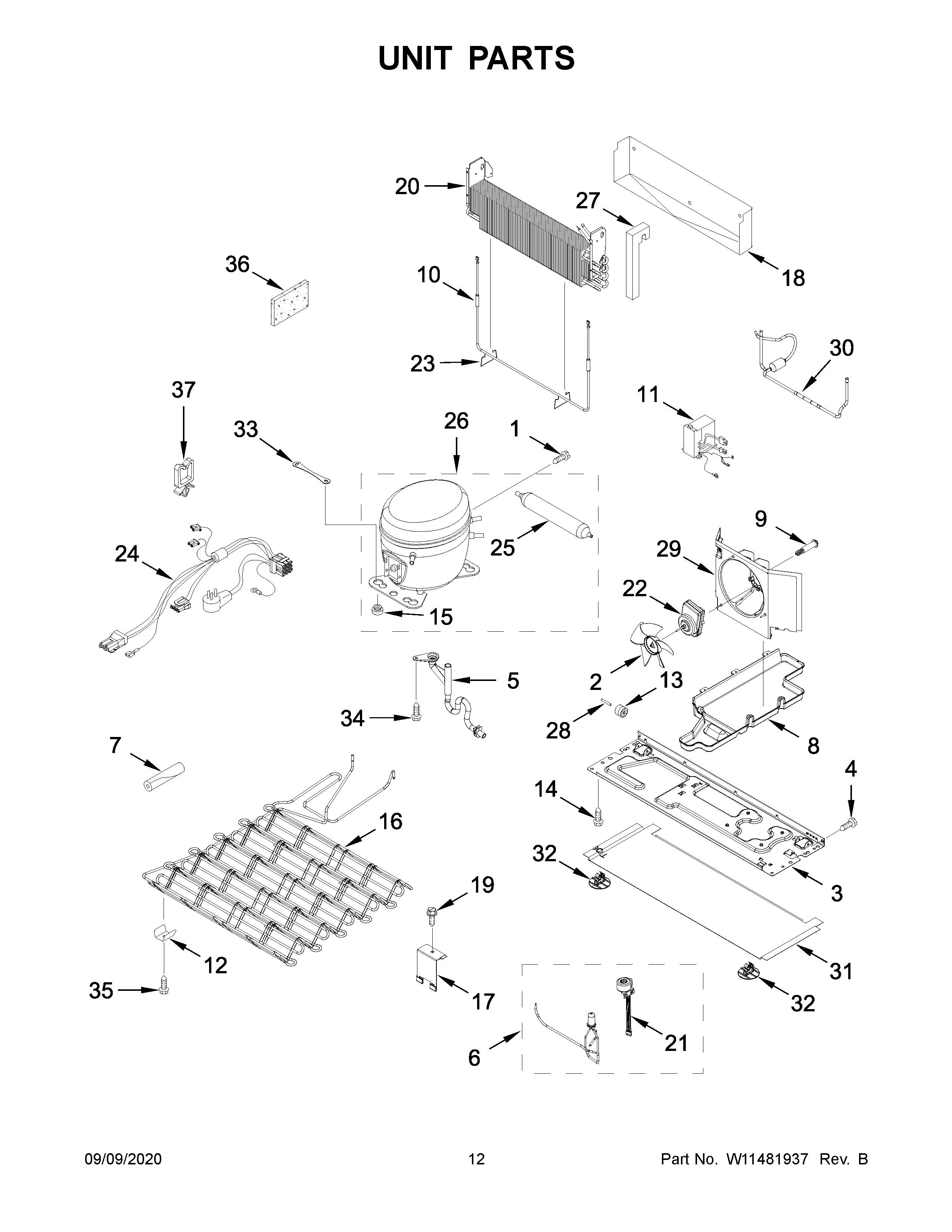

KRMF706ESS04 07 – UNIT PARTS

KRMF706ESS04 07 – UNIT PARTS

Written by

in

KRMF706ESS04 07 – UNIT PARTS

Products

PositionProduct
NI978030 Whirlpool Refrigerator Valve
NIVALVE, ACCESS (5/8“)
NI876764 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI978027 Whirlpool Refrigerator Primary Valve
NIWP978025 Whirlpool Refrigerator Valve
NICABINET (NOT A SERVICEABLE PART)
1WPW10141625 Whirlpool Refrigerator Screw Assembly
2WP2188935 Whirlpool Refrigerator Fan Blade
3W10570074 Whirlpool Refrigerator Plate
467006425 Whirlpool Refrigerator Screw
5W11745092 Whirlpool Dual Evaporator Drain Extension
6W11575003 Whirlpool Refrigerator Valve
7SLEEVE
8W11225840 Whirlpool Refrigerator Evaporator Tray
9W10829281 Whirlpool Refrigerator Screw
10HEATER
11W11087200 Whirlpool Refrigerator Inverter Box
12W10683556 Whirlpool Refrigerator Clip
13WP67005149 Whirlpool Roller
14Screw
15WPW10169124 Whirlpool Refrigerator Grommet
16W10758093 Whirlpool Refrigerator Condenser
17W10391376 Whirlpool Bracket Assembly
18TRAY, DRIP
19W10142255 Whirlpool Screw
20WPW10608485 Whirlpool Refrigerator Evaporator
21W11429989 Whirlpool Refrigerator Solenoid
22W11127829 Whirlpool Refrigerator Condenser Motor
23W11673433 Whirlpool Clip
24W11679643 Whirlpool Wire Harness
25WPW10143759 Whirlpool Dryer Filter
26W10832994 Whirlpool Refrigerator Compressor
27W10491355 Whirlpool Refrigerator Air Gasket
2867006434 Whirlpool Axle Pin
29WPW10406719 Whirlpool Refrigerator Shroud
30WPW10626970 Whirlpool Refrigerator Tube
31W10278140 Whirlpool Refrigerator Unit Cover
32W10815861 Whirlpool Refrigerator Clip
33W10236396 Whirlpool Refrigerator Strap
34W10141518 Whirlpool Refrigerator Screw
35W11544659 Whirlpool Refrigerator Screw
36W11553819 Whirlpool Refrigerator Insulation
37CLIP
