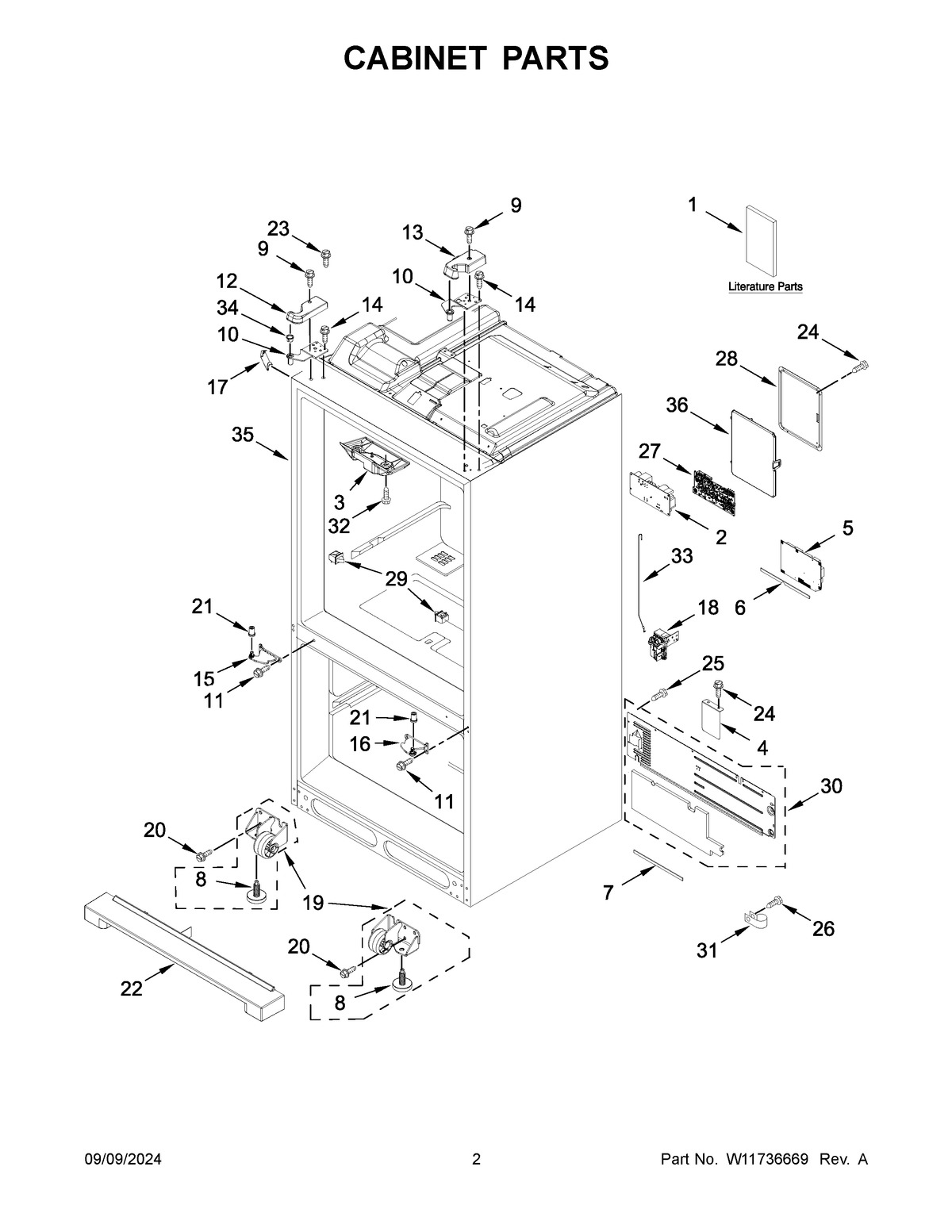

KRMF706ESS06 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1	TECH SHEET
1A	TECH SHEET, OWNERS MANUAL
2	WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
3	W10734555 Whirlpool Refrigerator Pivot Block
4	W10336736 Whirlpool Refrigerator Cover
5	WPW10675033-includeCORE Whirlpool WPW10675033 Refrigerator Electronic Control Board + Core
6	W10415341 Whirlpool Refrigerator Gasket
7	W11534848 Whirlpool Gasket
8	WPW10141622 Whirlpool Leveler
9	WP8281196 Whirlpool Screw
10A	W11736793 Whirlpool Door Hinge
10	W11027247 Whirlpool Refrigerator Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	W10781436 Whirlpool Refrigerator Cover
13	W10709866 Whirlpool Refrigerator Cover
14	W11126052 Whirlpool Screw Assembly
15	W11122872 Whirlpool Refrigerator Door Hinge
16	W11167119 Whirlpool Refrigerator Door Hinge
17	WP12587703AP Whirlpool Refrigerator Filler
18	VALVE
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	W11223833 Whirlpool Refrigerator Hinge Bushing
22	W10911309 Whirlpool Toe Kick Plate
23	W11214483 Whirlpool Refrigerator Screw
24	W11686675 Whirlpool Screw
25	W10141518 Whirlpool Refrigerator Screw
26	SCREW
27	W10804160-includeCORE Whirlpool W10804160 Refrigerator Electronic Control Board + Core
28	W10754591 Whirlpool Refrigerator Cover
29	W11289496 Whirlpool Refrigerator Switch
30	W11482027 Whirlpool Refrigerator Back Cover
31	W11456069 Whirlpool Refrigerator Clamp
32	W10854958 Whirlpool Refrigerator Screw
33	W11482381 Whirlpool Refrigerator Water Tube
34	W10705239 Whirlpool Refrigerator Grommet
35	CABINET (NOT A SERVICABLE PART)
36	W10277839 Whirlpool Refrigerator Cover
