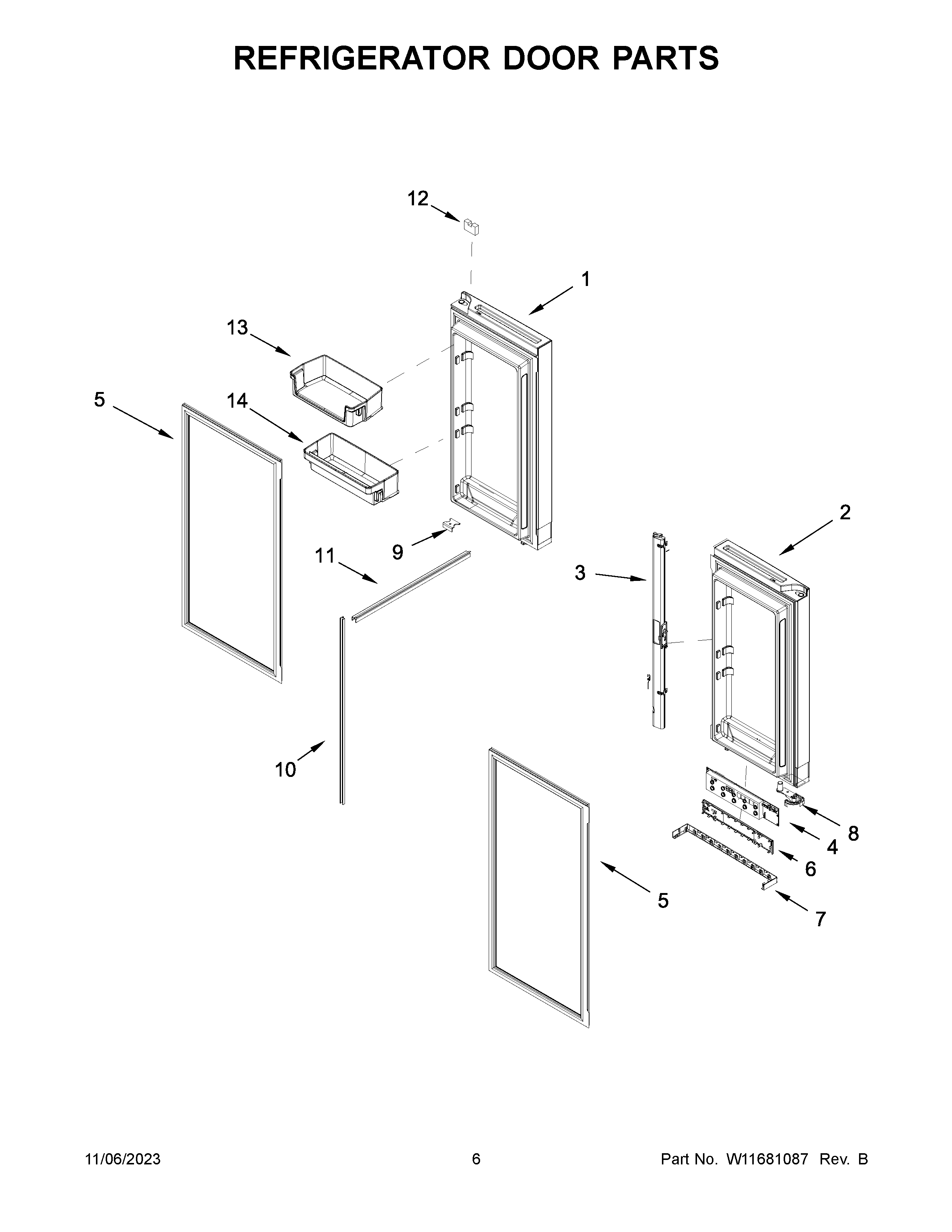

KRQC506MPS00 04 – REFRIGERATOR DOOR PARTS

KRQC506MPS00 04 – REFRIGERATOR DOOR PARTS

Written by

in

KRQC506MPS00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW10839793 Whirlpool Refrigerator Nameplate
1W11658641 Whirlpool FIP Door
2REFRIGERATOR DOOR (LEFT HAND)
3W11654249 Whirlpool Rail Mulling
4W11654052 Whirlpool Electronic Control
5W11456682 Whirlpool Refrigerator Door Gasket
6W11654053 Whirlpool Fascia
7W11095783 Whirlpool End Cap
8W11110855 Whirlpool Closer Assembly
8AW11110854 Whirlpool Refrigerator Closer
9W11110857 Whirlpool Refrigerator Door Stop
10W11306508 Whirlpool Extension Flap
11HORIZONTAL INNER DOOR SEAL
12W11024885 Whirlpool Door Magnet
13GALLON DOOR BIN
14STADIUM BIN, BOTTOM DOOR BIN
