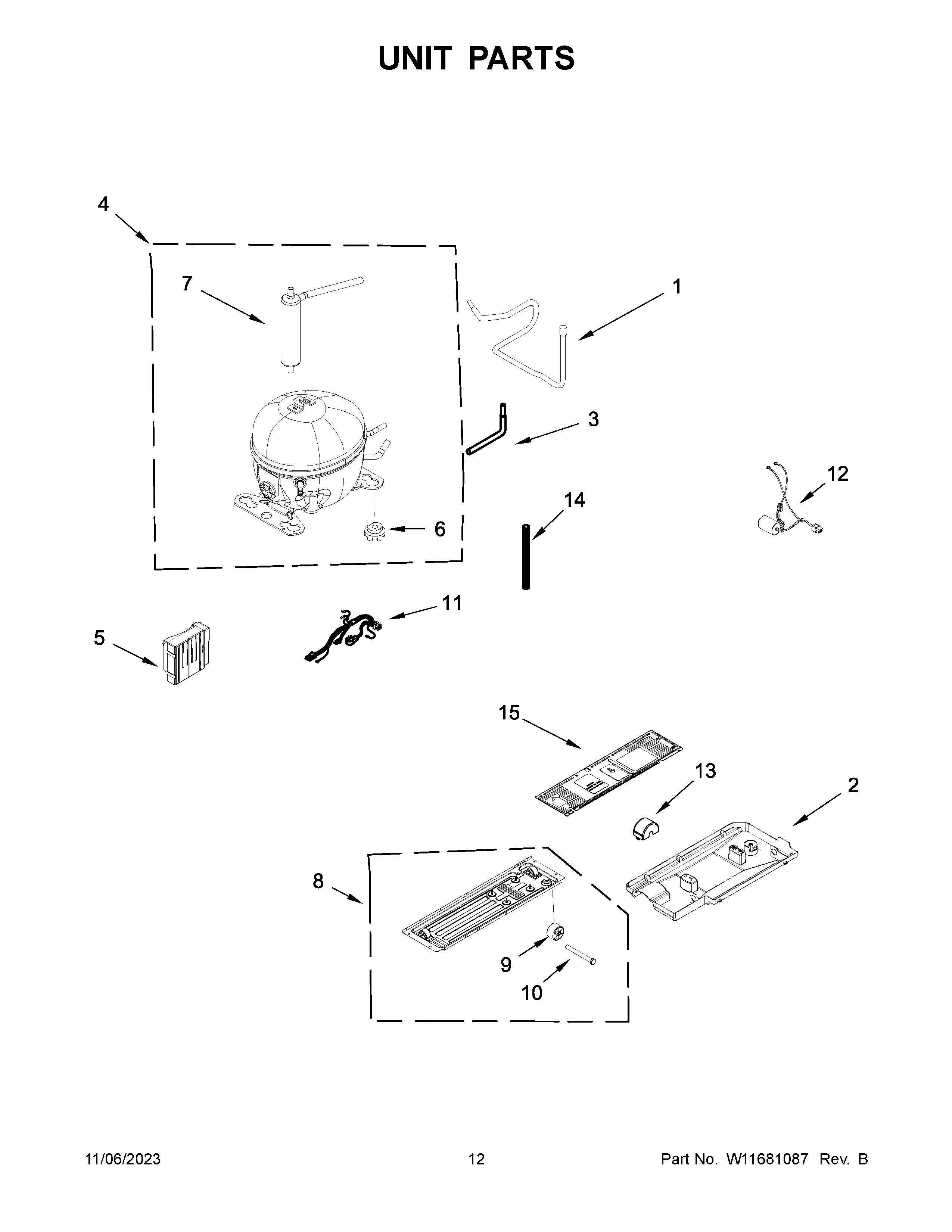

KRQC506MPS00 07 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 77.0 GRAMS (R600A)
1	W11200488 Whirlpool Tube
2	TRAY, EVAPORATOR
3	W11047160 Whirlpool Tube
4	W11455472 Whirlpool Refrigerator Compressor
4A	W11504420 Whirlpool Microwave Coupler
4C	W11504431 Whirlpool Microwave Coupler
4B	W11506635 Whirlpool Refrigerator Valve Coupler
5	W11733966 Whirlpool Inverter Box
6	WP4387558 Whirlpool Refrigerator Compressor Grommet
7	W11109499 Whirlpool Refrigerator Tube
7B	W11504447 Whirlpool Refrigerator Coupler
7A	W11504445 Whirlpool Refrigerator Coupler
7C	W11506624 Whirlpool Refrigerator Coupler
8	PLATE, COMPRESSOR BASE
9	ROLLER (NOT SERVICED)
10	BOLT (NOT SERVICED)
11	W11674368 Whirlpool Power Cord
12	W11117895 Whirlpool Wire Harness
13	COVER, COMPRESSOR ROLLER
14	W11029075 Whirlpool Drain Tube
15	W11039081 Whirlpool Refrigerator Back Cover
