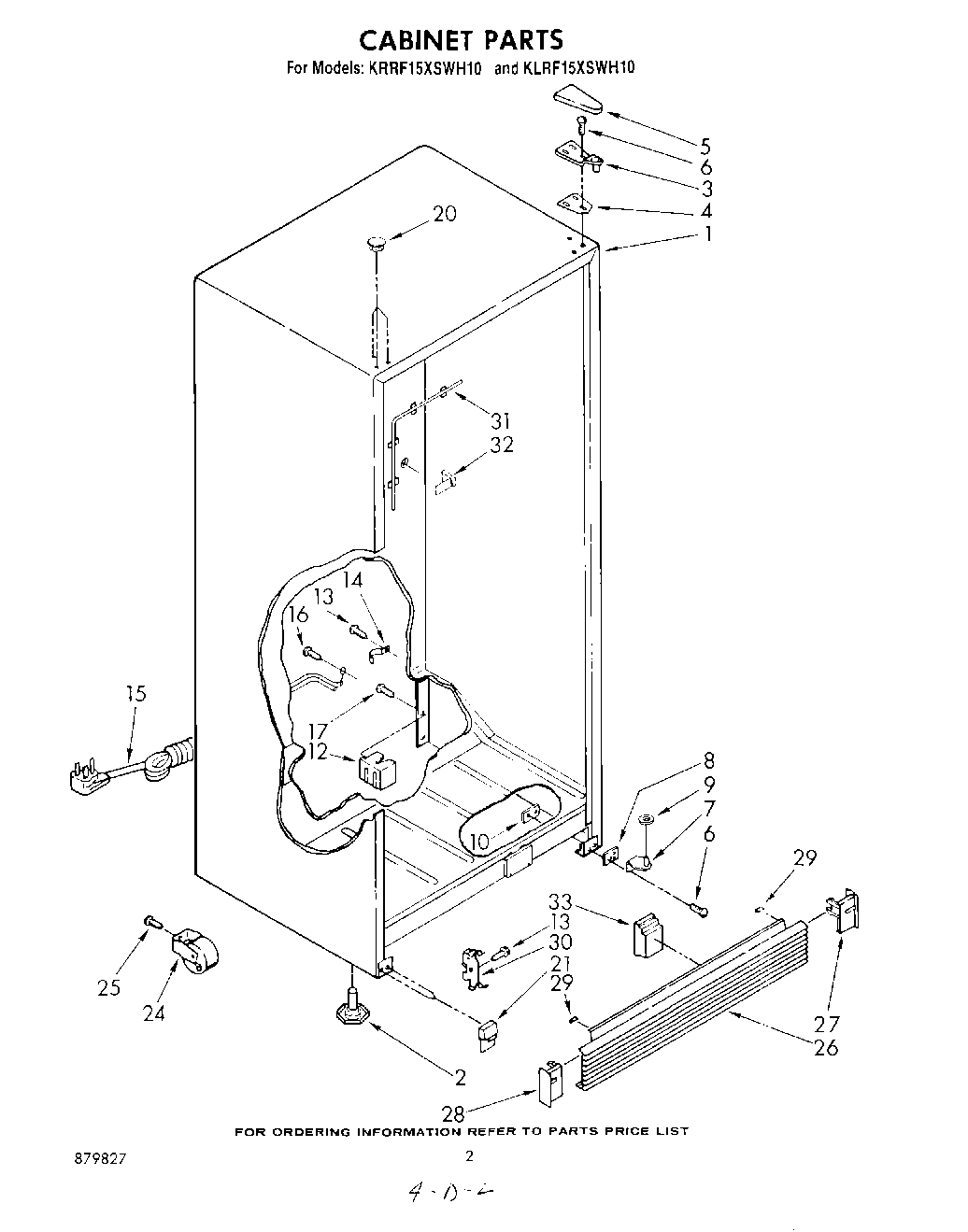

KRRF15XSWH10 02 – CABINETadmin2025-04-26T12:31:03+00:00KRRF15XSWH10 02 – CABINET
Products
| Position | Product |
|---|
| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Leveler (2) |
| 3 | Hinge, Top |
| 4 | WPL 836151 |
| 5 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 6 | Screw (Repair) |
| 6 | WP999367 Whirlpool Refrigerator Screw |
| 7 | Hinge (Bottom) |
| 7 | WPL 836687 |
| 8 | Shim, Bottom Hinge |
| 9 | WP487802 Whirlpool Refrigerator Washer |
| 10 | Tap Plate |
| 12 | WPL 549947 |
| 13 | W11624204 Whirlpool Screw |
| 14 | 549193 Whirlpool Refrigerator Power Clamp |
| 15 | Cord, Service |
| 16 | Screw, 8-32 x 3/8 |
| 17 | WP488729 Whirlpool Refrigerator Door Screw |
| 20 | Hole Plug (2) (White) |
| 20 | Hole Plug (2) (Almond) |
| 21 | Filler, Grille |
| 24 | WPW10250570 Whirlpool Refrigerator Cabinet Roller |
| 25 | Screw, 1/4-28 x 1/2 (2) |
| 26 | Grille |
| 27 | Grille, End Cap (R.S) |
| 28 | Grille, End Cap (L.S.) |
| 29 | Bumper, Grille (2) |
| 30 | WPL 989068 |
| 31 | Stile Heater |
| 32 | WPL 935663 |
| 33 | Insert, Air Baffle Grille |
