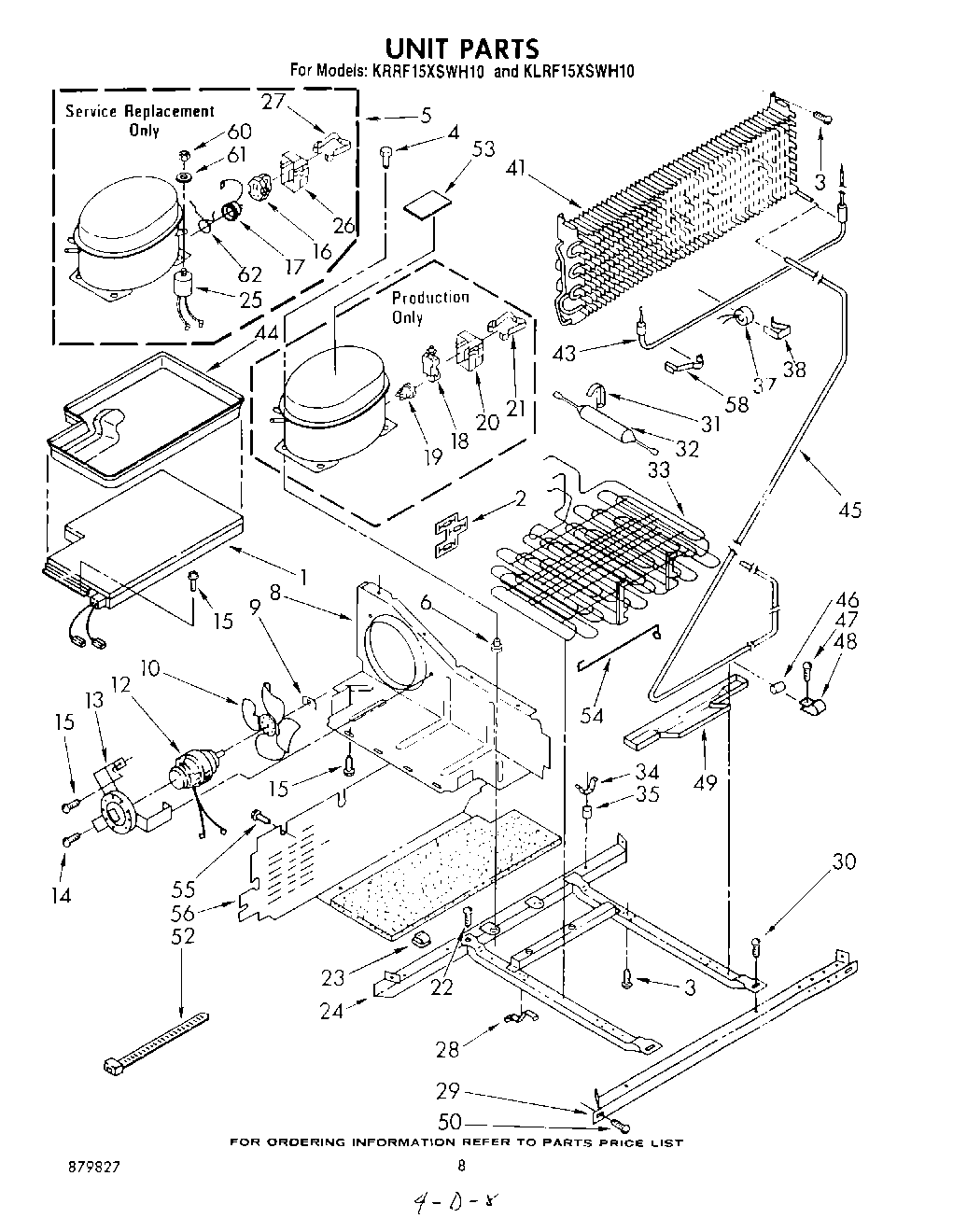

KRRF15XSWH10 05 – UNIT

Products

Position	Product
1	Condensate, Heater
2	Spacer, Condenser
3	W11624204 Whirlpool Screw
5	Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
5	876765 Whirlpool Primary Mounting Kit Refrigerator
6	876811 Whirlpool Grommet
8	Baffle
9	WP486692 Whirlpool Refrigerator Nut
10	Fan, Blade
12	833697 Whirlpool Condenser Fan Motor
13	Bracket, Motor
14	681390 Whirlpool Refrigerator Screw
15	Screw, 8 x 3/8
16	WP2262181 Whirlpool Refrigerator Start Relay
17	Overload
18	Relay
19	Overload (Used W/Original Compressor)
20	Terminal Cover
22	303776 Whirlpool Dishwasher Screw
23	Clip, Wire (2)
24	Frame
25	Capacitor
26	Cover, Terminal
27	Strap
28	Clip (2)
29	Rail, Front
30	489340 Whirlpool Refrigerator Screw
31	Clamp
32	W10843121 Whirlpool Refrigerator Tube
33	Condencer
34	Clamp (4)
35	Grommet (4)
37	Defrost, Bimetal
38	Clamp
41	Evaporator
43	Heater, Defrost
44	Evaporating, Tray
45	Exchanger, Heat
46	Dampener (2)
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	Clamp Tube
49	Pan, Drip
50	Screw, 1/4-28 x 1/2 (2)
52	Strap
53	Pad, Sound
54	Guard, Fan
56	Cover
58	Clip, Heater
60	Nut
61	Washer
62	Overload Spring
62	VALVE, ACCESS (1/2“)
62	978026 Whirlpool Refrigerator Primary Valve
62	978030 Whirlpool Refrigerator Valve
62	978027 Whirlpool Refrigerator Primary Valve
62	876764 Whirlpool Refrigerator Primary Valve
62	VALVE, ACCESS (5/8“)
62	WP978025 Whirlpool Refrigerator Valve
