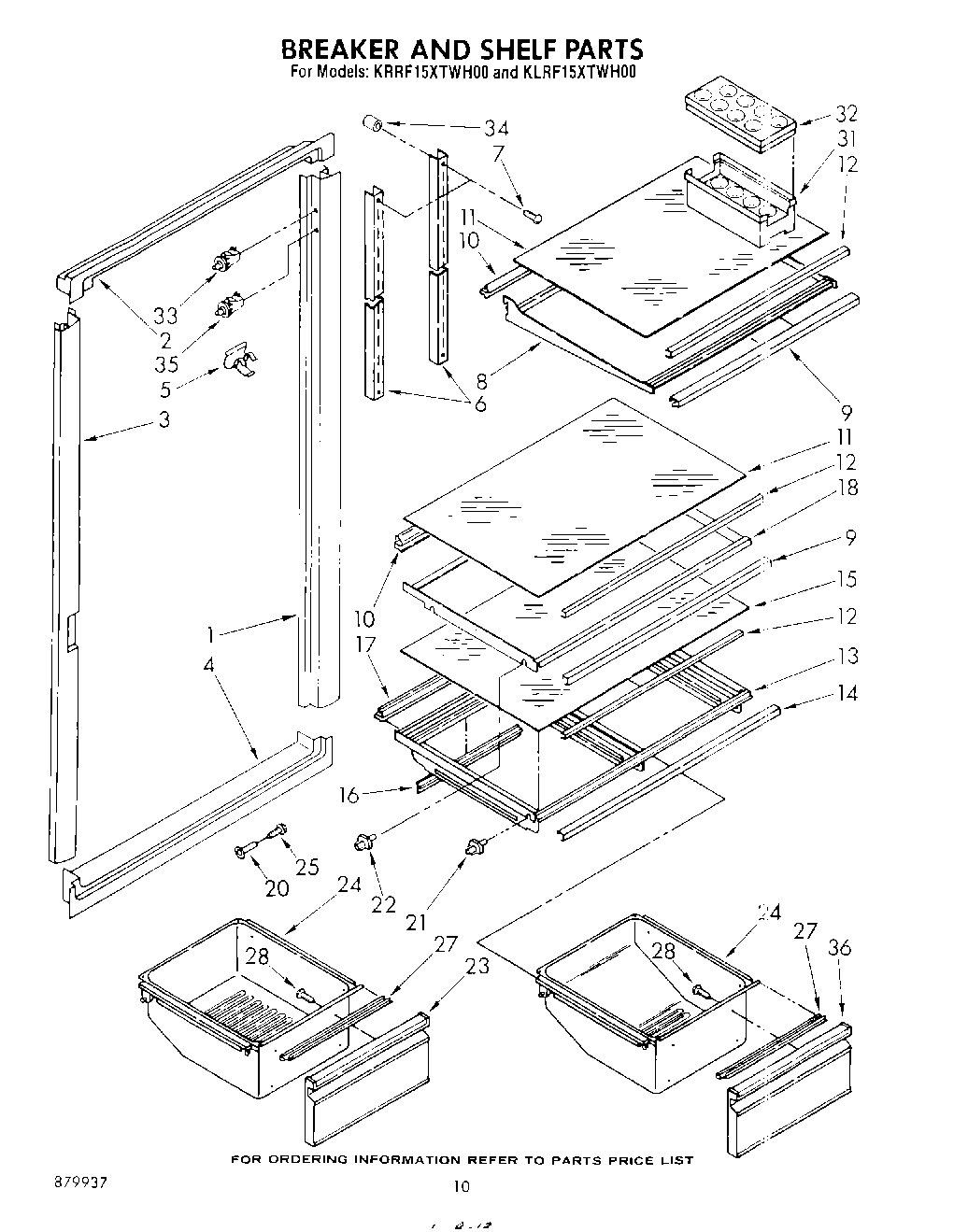

KRRF15XTWH00 06 – BREAKER AND SHELF

Products

Position	Product
1	Breaker Trim (R.S)
1	Breaker, R.S.
2	Breaker, Top
3	Breaker Trim (L.S) (With Switch Holes)
3	Breaker, L.S.
4	Breaker, Refrigerator (Bottom)
5	Breaker, Trim Clip
6	Shelf Ladder (2)
7	Screw, 8 x 1-1/4 (3)
8	Shelf, Cantilever
9	Trim, Shelf Front
10	Reflector, Glass Shelf
11	Glass, Cantilever Shelf
12	Shelf Gasket, Glass
13	Cover Frame (2)
14	Trim, Frame (2)
15	Glass, Cover (2)
16	Gasket, Rear (2)
17	Reflector, Glass Shelf (2)
18	Shelf, Fixed
20	Stud, Shelf
21	Stud, Shelf (4)
22	Stud, Fixed Shelf
23	Front Pan, Crisper
24	Pan (4)
25	Screw, 8-15 x 1
27	Front Pan, Gasket (4)
28	Screw (Repair)
28	WP488729 Whirlpool Refrigerator Door Screw
31	Egg Container, Bottom
32	Egg Container, Top
33	Switch, Light
34	Spacer Ground
35	Fan Motor, Switch
36	Front, Meat Pan
