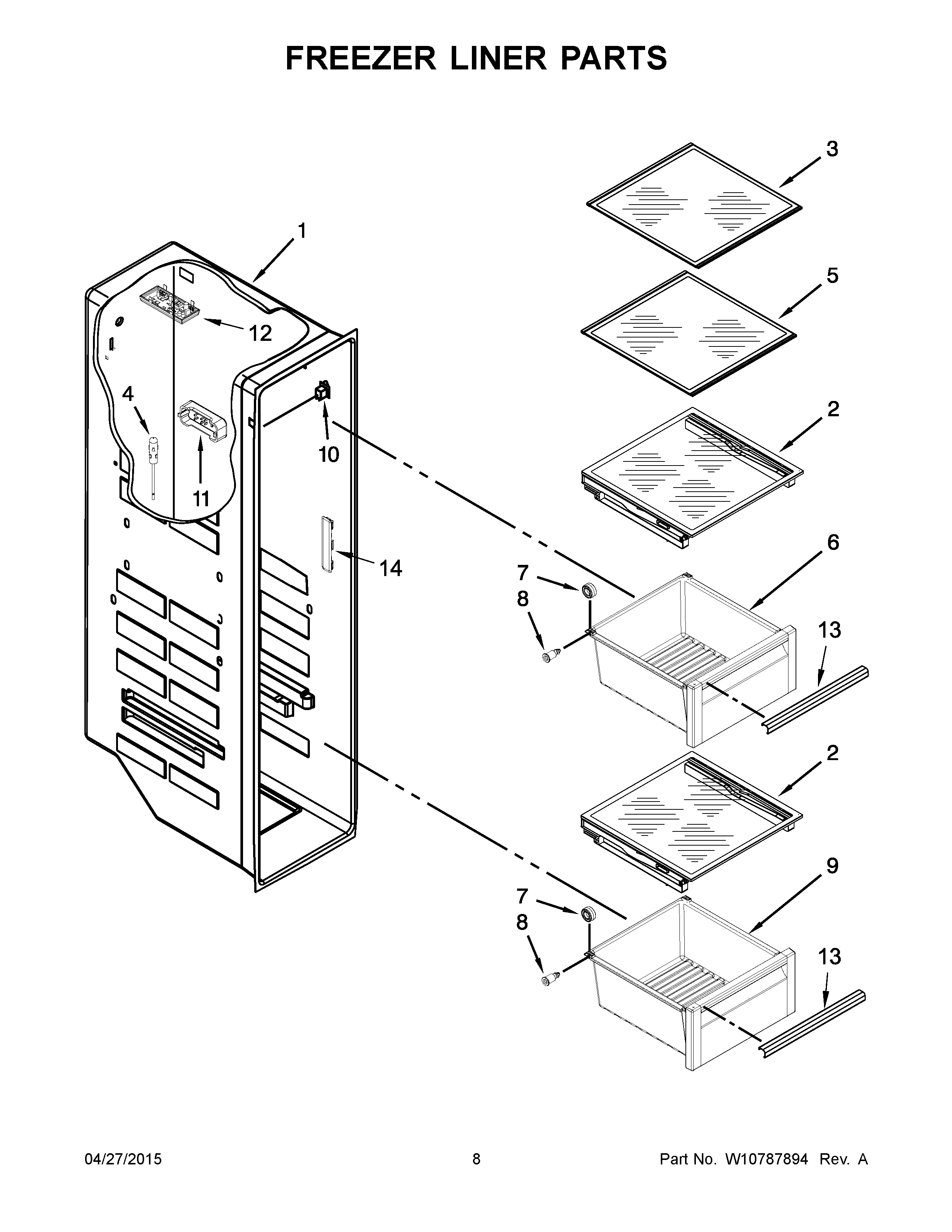

KRSC500ESS00 05 – FREEZER LINER PARTS

KRSC500ESS00 05 – FREEZER LINER PARTS

Written by

in

KRSC500ESS00 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER ASSEMBLY
3W10802753 Whirlpool Refrigerator Glass Shelf
4THERMISTOR
5W10802752 Whirlpool Refrigerator Glass Shelf
6W10725170 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8WPW10257246 Whirlpool Refrigerator Axle
9W10726001 Whirlpool Refrigerator Freezer Bin
10W11457217 Whirlpool Refrigerator Rocker Switch Combination
11WPW10425252 Whirlpool Refrigerator Cover
12W11226500 Whirlpool LED Light
13W10542017 Whirlpool Refrigerator Trim Pan
14W10876365 Whirlpool Refrigerator Light
