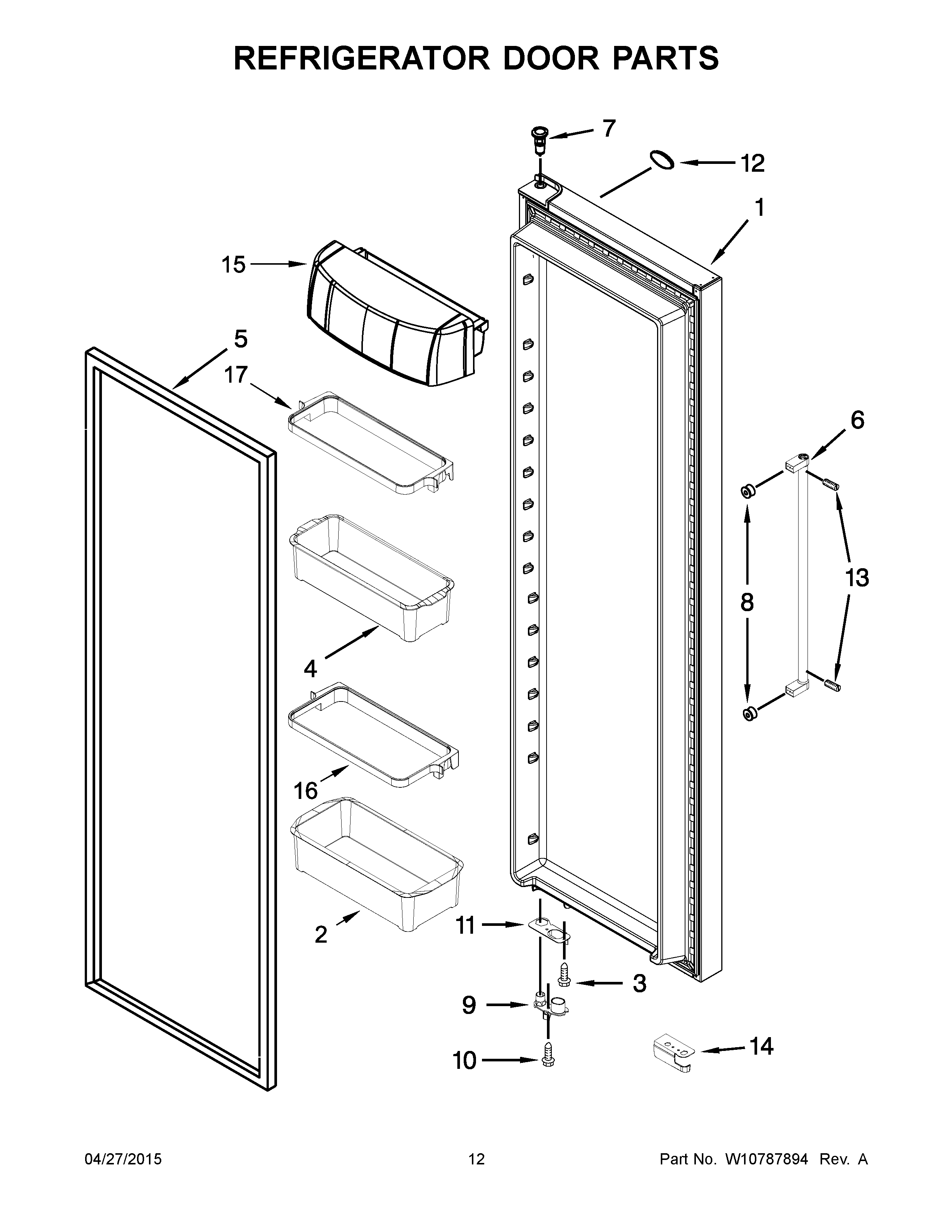

KRSC500ESS00 07 – REFRIGERATOR DOOR PARTS

KRSC500ESS00 07 – REFRIGERATOR DOOR PARTS

Written by

in

KRSC500ESS00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10757191 Whirlpool Refrigerator Door FIP
2WPW10316457 Whirlpool Refrigerator Gallon Door Bin
3SCREW
4WPW10316461 Whirlpool Refrigerator Door Shelf Bin Clear
5W10355582 Whirlpool Refrigerator Door Gasket
6W11340150 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12W10839793 Whirlpool Refrigerator Nameplate
13WPW10307614 Whirlpool Dishwasher Screw
14W11661847 Whirlpool Wire Cover
15WPW10324760 Whirlpool Refrigerator Door Shelf Bin
16WPW10494334 Whirlpool Bin Frame
17WPW10494333 Whirlpool Refrigerator Silver Door Bin Frame
