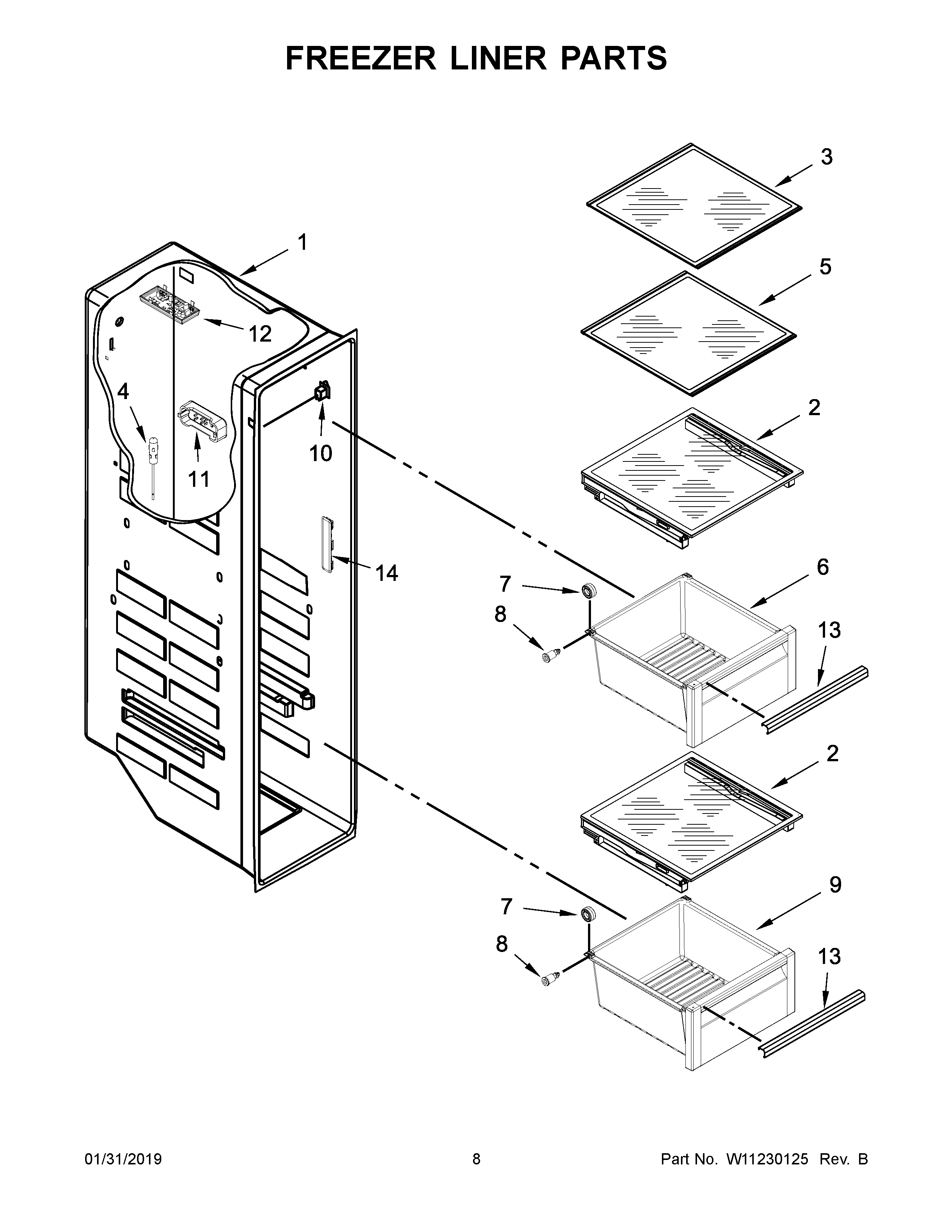

KRSC500ESS01 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER ASSEMBLY
3W11340165 Whirlpool Refrigerator Glass Shelf
4THERMISTOR
5W11340169 Whirlpool Refrigerator Glass Shelf
6W10725170 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8W11175807 Whirlpool Axle Assembly
9W10726001 Whirlpool Refrigerator Freezer Bin
10W11396033 Whirlpool Refrigerator Rocker Switch
11WPW10425252 Whirlpool Refrigerator Cover
12W11226500 Whirlpool LED Light
13W10542017 Whirlpool Refrigerator Trim Pan
14W10876365 Whirlpool Refrigerator Light
