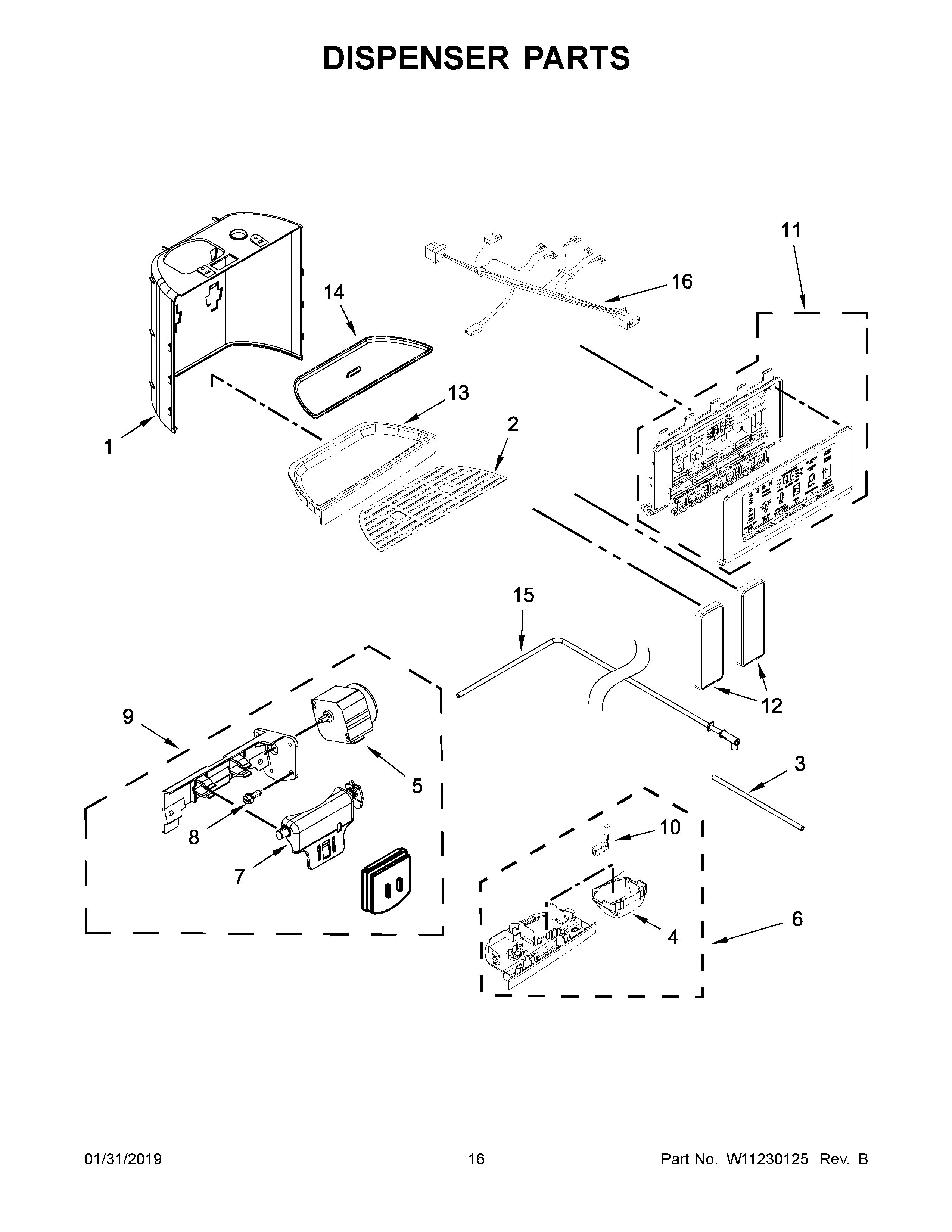

KRSC500ESS01 09 – DISPENSER PARTS

Products

Position	Product
1	W10317255 Whirlpool Refrigerator Separator
2	WPW10317270 Whirlpool Refrigerator Grille
3	W11620106 Whirlpool Water Tube
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	W10353593 Whirlpool Refrigerator Separator
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	DOOR-ICE
10	W11290115 Whirlpool Refrigerator Light
11	W10822646-includeCORE Whirlpool W10822646 Refrigerator Electronic Control Board
12	WPW10346924 Whirlpool Refrigerator Pad
13	WPW10317261 Whirlpool Refrigerator Drip Tray
14	W10859920 Whirlpool Refrigerator Drip Tray
15	WPW10386778 Whirlpool Refrigerator Water Tube
16	W10605336 Whirlpool Refrigerator Wire Harness
