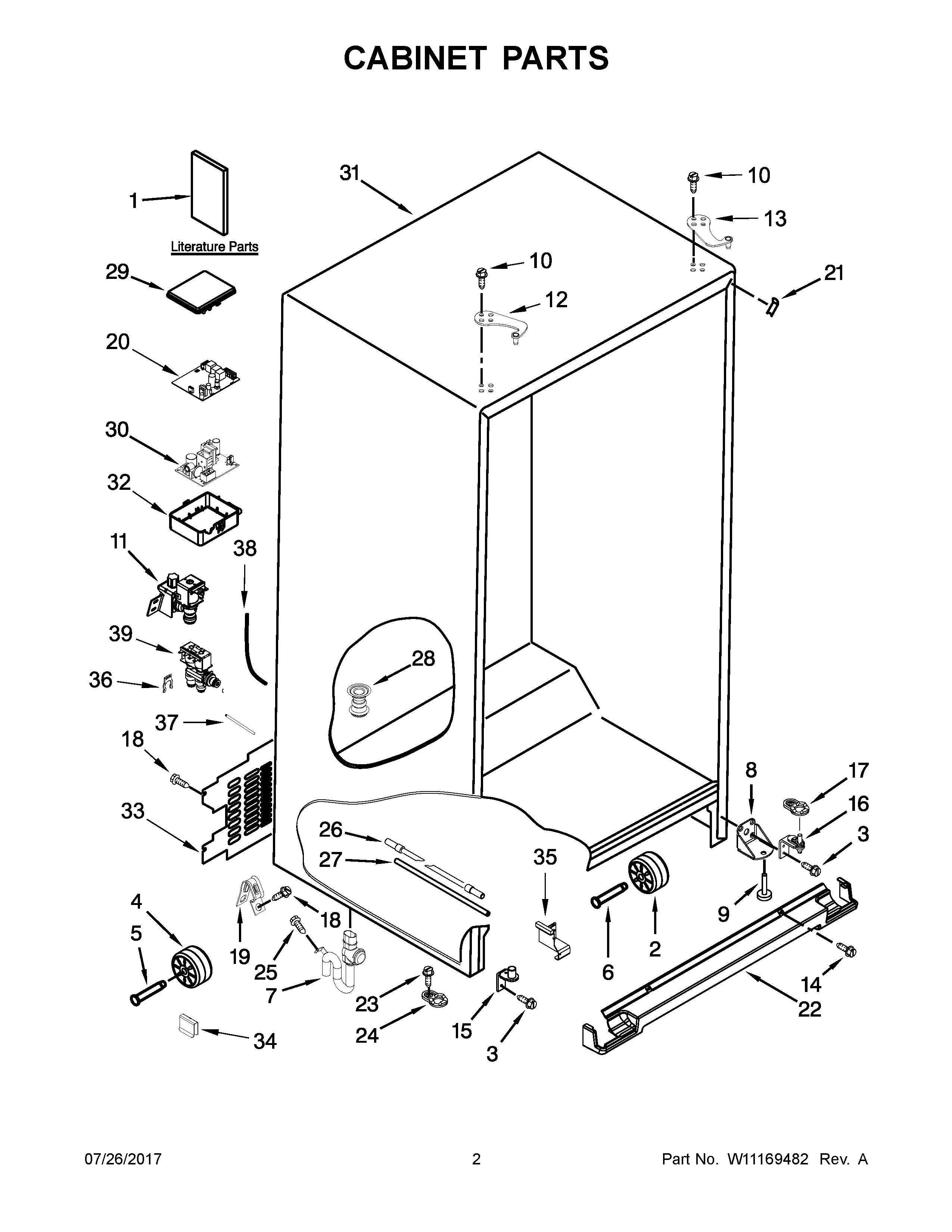

KRSC503EBS00 02 – CABINET PARTS

KRSC503EBS00 02 – CABINET PARTS

Written by

in

KRSC503EBS00 02 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1ASERVICE & WIRING SHEET
1BENERGY GUIDE
2WPW10475495 Whirlpool Roller Assembly
3WPW10297485 Whirlpool Refrigerator Screw
4WP67005149 Whirlpool Roller
567006434 Whirlpool Axle Pin
6W11208384 Whirlpool Refrigerator Rivet
7W11519143 Whirlpool Refrigerator Extension
8W11266052 Whirlpool Refrigerator Bracket
9WPW10141622 Whirlpool Leveler
10WPW10308751 Whirlpool Screw
11VALVE-INLT REFR
12W10901052 Whirlpool Refrigerator Door Hinge
13W11568758 Whirlpool Top Hinge
14WP98008545 Whirlpool Screw
15W11088196 Whirlpool Refrigerator Door Hinge
16W11311416 Whirlpool Refrigerator Door Hinge
17W11311686 Whirlpool Closing Cam
18SCREW
19549193 Whirlpool Refrigerator Power Clamp
20WPW10226427 Whirlpool Refrigerator Electronic Control Board
2167003485 Whirlpool Refrigerator Corner Cover (Black)
22WPW10713158 Whirlpool Refrigerator Grille
23WP489483 Whirlpool Screw
24W10770895 Whirlpool Refrigerator Door Cam
25WP489464 Whirlpool Refrigerator Screw
26WPW10279882 Whirlpool Water Line
27WPW10279885 Whirlpool Refrigerator Water Tube
28W10247979 Whirlpool Refrigerator Fitting
29LID, HV BOX
30W11172798 Whirlpool Refrigerator Electronic Control Board + Core
31CABINET (NOT A SERVICEABLE PART)
32WPW10247993 Whirlpool Refrigerator Control Box
33WPW10333887 Whirlpool Refrigerator Unit Cover
34W11545866 Whirlpool Refrigerator Clip
35W10499011 Whirlpool Refrigerator Bracket
36W10782424 Whirlpool Refrigerator Ring
36AW10782423 Whirlpool Refrigerator Ring
37WPL W10811573
38WPW10238092 Whirlpool Refrigerator Water Tube
39VALVE-INLT REFR
