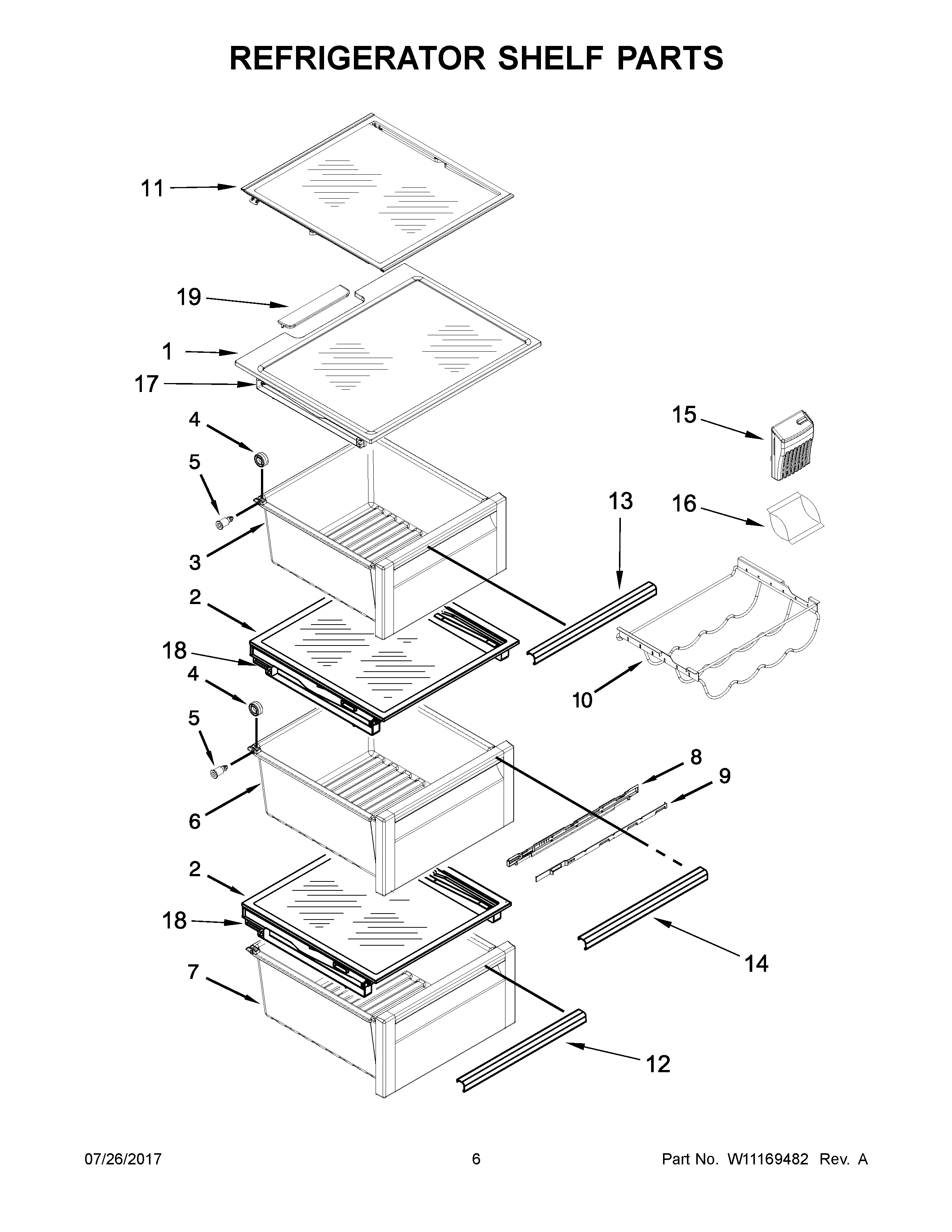

KRSC503EBS00 04 – REFRIGERATOR SHELF PARTS

KRSC503EBS00 04 – REFRIGERATOR SHELF PARTS

Written by

in

KRSC503EBS00 04 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1WPW10440265 Whirlpool Refrigerator Cover
2WPW10440266 Whirlpool Refrigerator Cover
3WPW10542037 Whirlpool Refrigerator Snack Pan
4W11164152 Whirlpool Drawer Roller
5W11175807 Whirlpool Axle Assembly
6WPW10531081 Whirlpool Refrigerator Crisper Pan
7WPW10531082 Whirlpool Refrigerator Meat Pan
8HOUSING, HUMIDITY
9W10257334 Whirlpool Refrigerator Slide
10W10395554 Whirlpool Refrigerator XL Wine Rack
11ASSEMBLY, SHELF
12WPW10531022 Whirlpool Refrigerator Pan Trim
13WPW10542020 Whirlpool Refrigerator Pan Trim
14WPW10531023 Whirlpool Refrigerator Trim Pan
15WPW10408747 Whirlpool Refrigerator Housing
16W10346771A Whirlpool Fresh Flow Produce Preserver
17AW11678966 Whirlpool Rail
17RAIL
18AW11685636 Whirlpool Refrigerator Rail
18W11678574 Whirlpool Refrigerator Track
19W10392412 Whirlpool Refrigerator Filler
