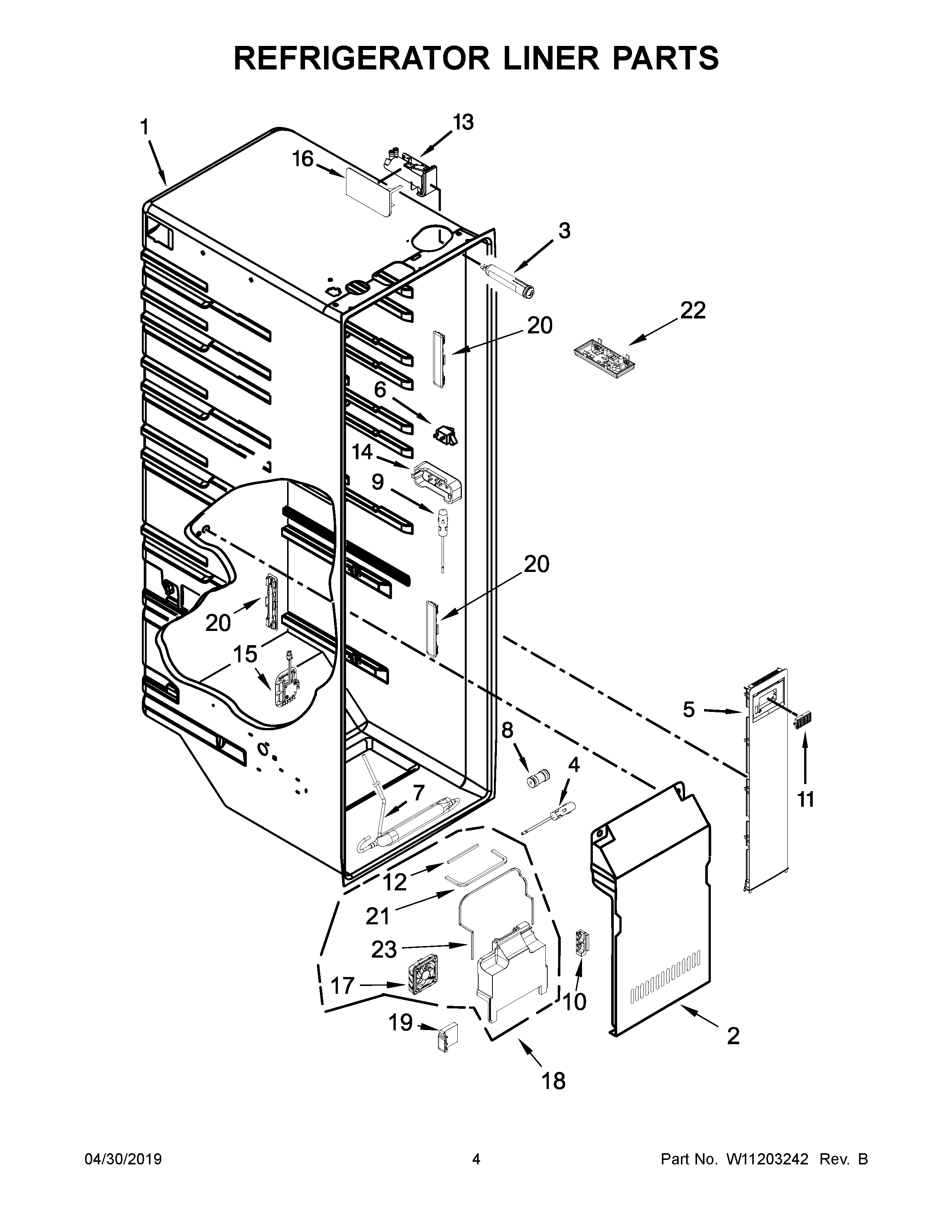

KRSC503EBS01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10387382 Whirlpool Refrigerator Evaporator Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W10316760 Whirlpool Thermistor Kit
5W11565237 Whirlpool Air Tower
6W11123941 Whirlpool Refrigerator Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WPW10271543 Whirlpool Refrigerator Connector
9THERMISTOR
10W10837626 Whirlpool Refrigerator Support
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12W11676538 Whirlpool Gasket
13WPW10394053 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15MODULE
16W11501035 Whirlpool Refrigerator Filter Cover
17FAN-SCROLL
18W11098695 Whirlpool Refrigerator Fan Scroll
19W11028224 Whirlpool Refrigerator Support
20W10876365 Whirlpool Refrigerator Light
21W11676537 Whirlpool Gasket
22W11226500 Whirlpool LED Light
23W11702233 Whirlpool Gasket
