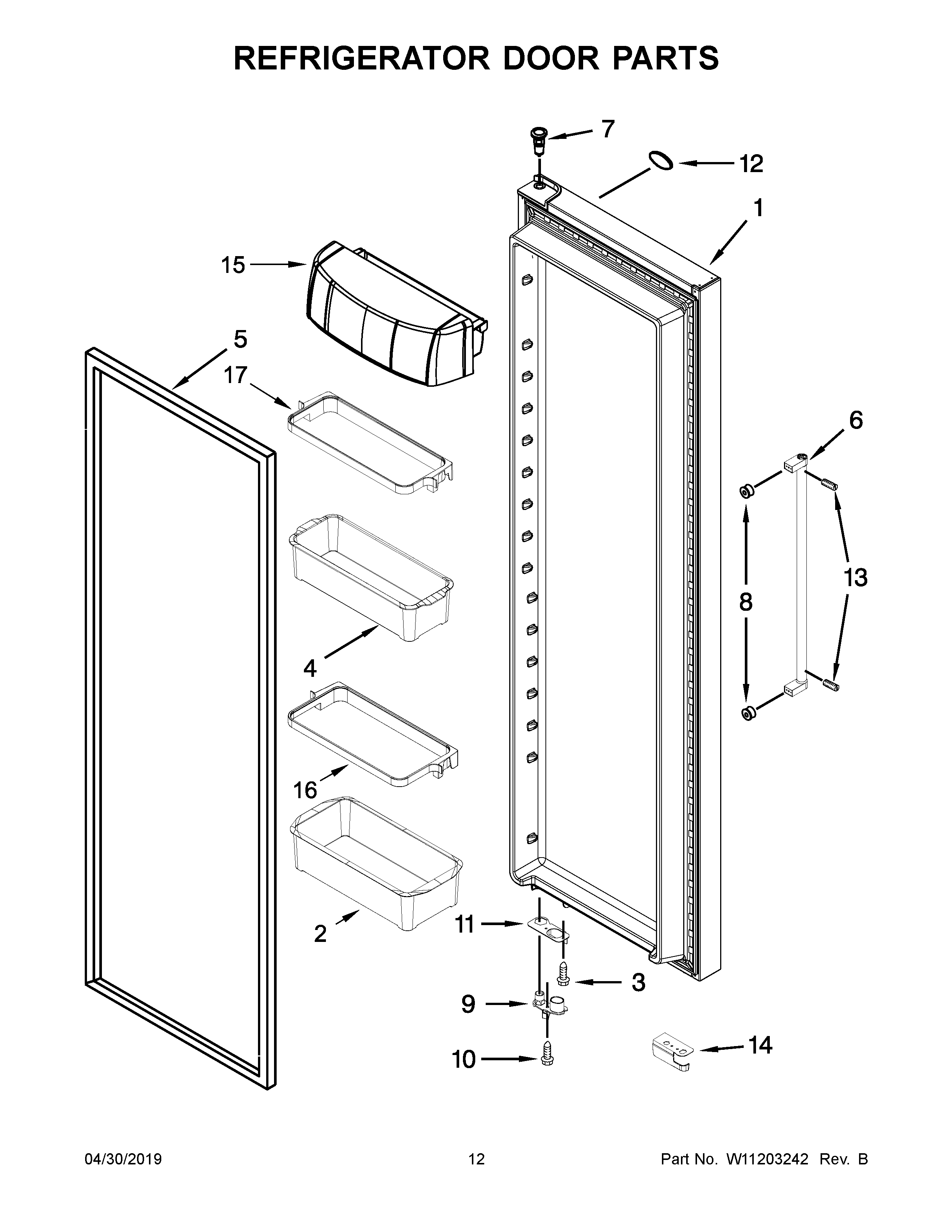

KRSC503EBS01 07 – REFRIGERATOR DOOR PARTS

KRSC503EBS01 07 – REFRIGERATOR DOOR PARTS

Written by

in

KRSC503EBS01 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1ALW10771436 Whirlpool Refrigerator DOR FIP
1LW10864694 Whirlpool Refrigerator FIP Door
2WPW10316457 Whirlpool Refrigerator Gallon Door Bin
3SCREW
4WPW10316461 Whirlpool Refrigerator Door Shelf Bin Clear
5AW10355588 Whirlpool Refrigerator FIP Gasket
5GASKET-FIP
6W11340150 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9WPW10257201 Whirlpool Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12W10839793 Whirlpool Refrigerator Nameplate
13SCREW
14W10789145 Whirlpool Refrigerator Wire Cover
15WPW10324760 Whirlpool Refrigerator Door Shelf Bin
16WPW10494334 Whirlpool Bin Frame
17WPW10494333 Whirlpool Refrigerator Silver Door Bin Frame
