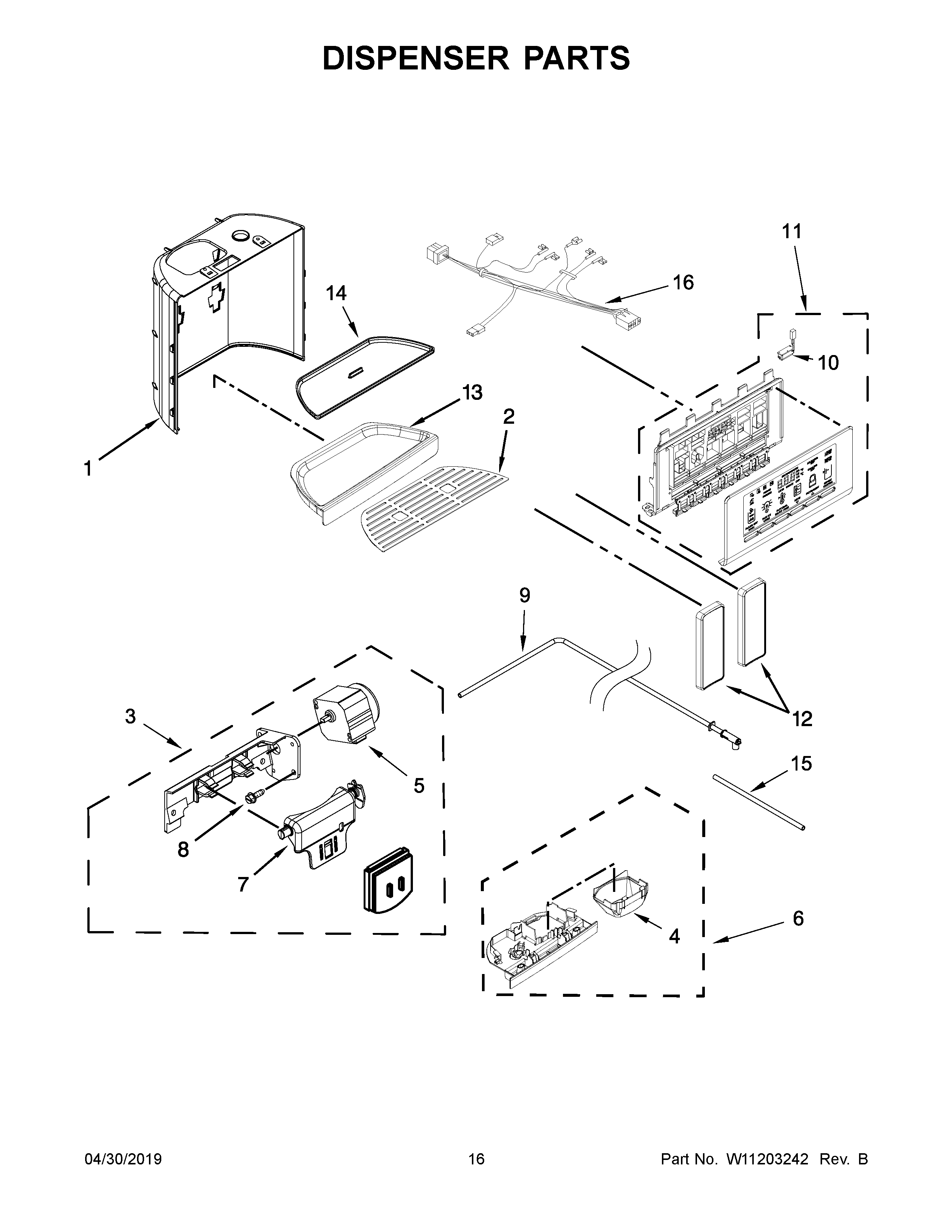

KRSC503EBS01 09 – DISPENSER PARTS

KRSC503EBS01 09 – DISPENSER PARTS

Written by

in

KRSC503EBS01 09 – DISPENSER PARTS

Products

PositionProduct
1AW10317255 Whirlpool Refrigerator Separator
1W10317259 Whirlpool Refrigerator Separator
2WPW10317270 Whirlpool Refrigerator Grille
3DOOR-ICE
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10353593 Whirlpool Refrigerator Separator
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W11669938 Whirlpool Water Tube
10W11290115 Whirlpool Refrigerator Light
11W11340158-includeCORE Whirlpool W11340158 Microwave Electronic Control Board + Core
12W11561037 Whirlpool Refrigerator Pad
12AWPW10346924 Whirlpool Refrigerator Pad
13AWPW10317261 Whirlpool Refrigerator Drip Tray
13W10317265 Whirlpool Refrigerator Drip Tray
14W10317275 Whirlpool Refrigerator Drip Tray
14AW10859920 Whirlpool Refrigerator Drip Tray
15W11620106 Whirlpool Water Tube
16W10605343 Whirlpool Refrigerator Wire Harness
