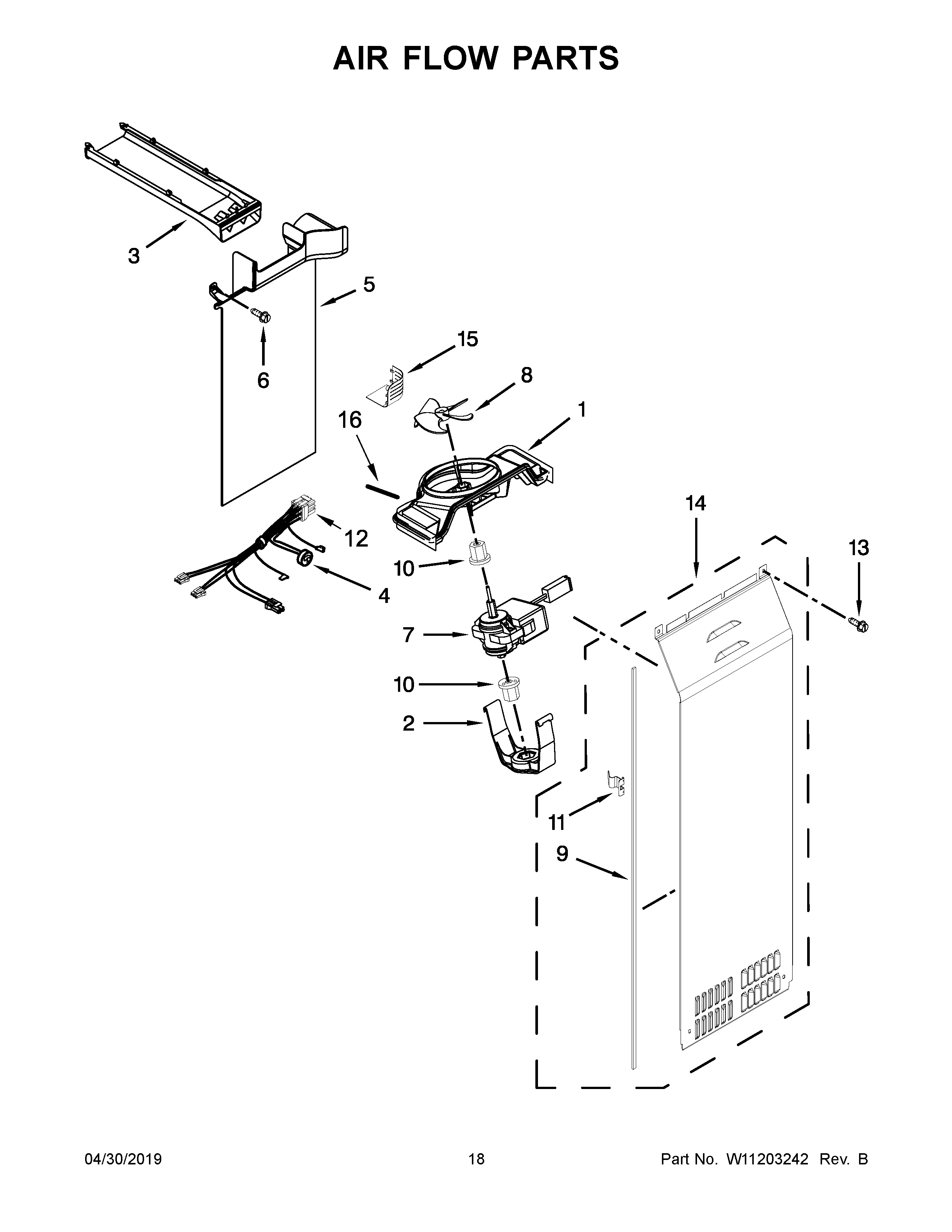

KRSC503EBS01 10 – AIR FLOW PARTSadmin2025-04-26T12:28:41+00:00KRSC503EBS01 10 – AIR FLOW PARTS ProductsPositionProduct1W10251462 Whirlpool Refrigerator Scroll Fan28201663 Whirlpool Refrigerator Primary Fan Blade3W10897511 Whirlpool Refrigerator Air Duct4CABINET (NOT A SERVICEABLE PART)5WPW10382902 Whirlpool Refrigerator Air Duct6WP489478 Whirlpool Refrigerator Screw7W11396715 Whirlpool Refrigerator Evaporator Motor8WP2169142 Whirlpool Fan Blade9W10240370 Whirlpool Refrigerator Gasket10W11669856 Whirlpool Grommet11W11232019 Whirlpool Refrigerator Clip12WIRE ASSY-EVAP FAN13WP693995 Whirlpool Screw14WPW10388269 Whirlpool Refrigerator Evaporator Cover15W10260382 Whirlpool Refrigerator Cover16W11205489 Whirlpool Foam Insert
