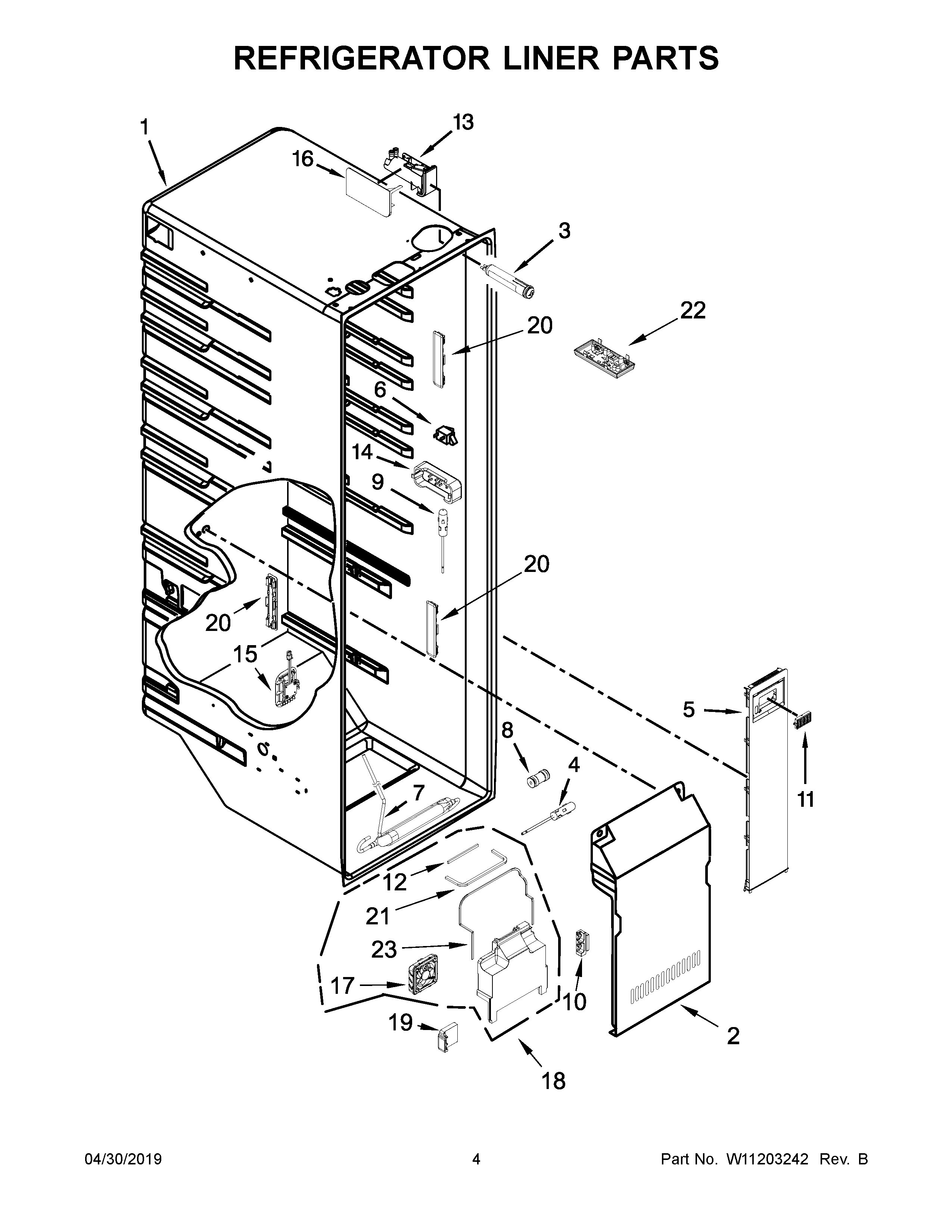

KRSC503ESS01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10387382 Whirlpool Refrigerator Evaporator Cover
3	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4	W10316760 Whirlpool Thermistor Kit
5	W11565237 Whirlpool Air Tower
6	W11123941 Whirlpool Refrigerator Switch
7	W11204869 Whirlpool Refrigerator Reservoir
8	WPW10271543 Whirlpool Refrigerator Connector
9	THERMISTOR
10	W10837626 Whirlpool Refrigerator Support
11	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12	W11676538 Whirlpool Gasket
13	WPW10394053 Whirlpool Refrigerator Housing
14	WPW10425252 Whirlpool Refrigerator Cover
15	MODULE
16	W11501035 Whirlpool Refrigerator Filter Cover
17	FAN-SCROLL
18	W11098695 Whirlpool Refrigerator Fan Scroll
19	W11028224 Whirlpool Refrigerator Support
20	W10876365 Whirlpool Refrigerator Light
21	W11676537 Whirlpool Gasket
22	W11226500 Whirlpool LED Light
23	W11702233 Whirlpool Gasket
