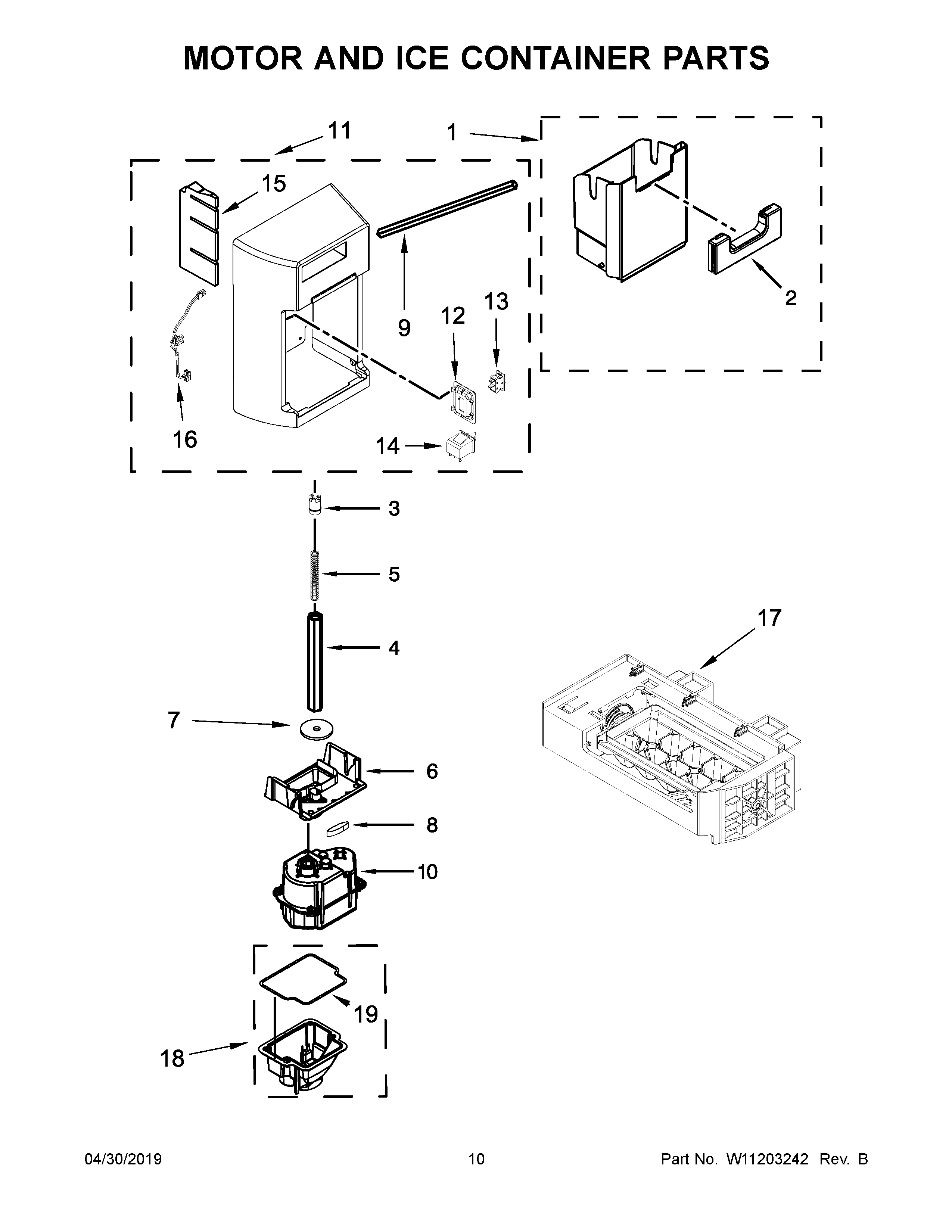

KRSC503ESS01 06 – MOTOR AND ICE CONTAINER PARTS

KRSC503ESS01 06 – MOTOR AND ICE CONTAINER PARTS

Written by

in

KRSC503ESS01 06 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1W11109888 Whirlpool Refrigerator Ice Container
2W11652042 Whirlpool Bin Latch
3WP2220458 Whirlpool Drive Cam
4WPW10258544 Whirlpool Refrigerator Shaft
5W10852956 Whirlpool Refrigerator Spring
6CHUTE
7WP2305382 Whirlpool Refrigerator Washer
8WPW10291905 Whirlpool Seal
9WPW10400435 Whirlpool Refrigerator Gasket
10W11202789 Whirlpool Auger Motor
11W11126296 Whirlpool Refrigerator Front Cover
12W10691248 Whirlpool Refrigerator Plate
13W10918003 Whirlpool Refrigerator RKR Switch
14W11123943 Whirlpool Refrigerator Switch
15W10749467 Whirlpool Refrigerator Insulation
16W11684619 Whirlpool Refrigerator Jumper Wire
17W10873791 Whirlpool Refrigerator Ice Maker Assembly
18W11678273 Whirlpool Bracket
19W10166854 Whirlpool Refrigerator Gasket
