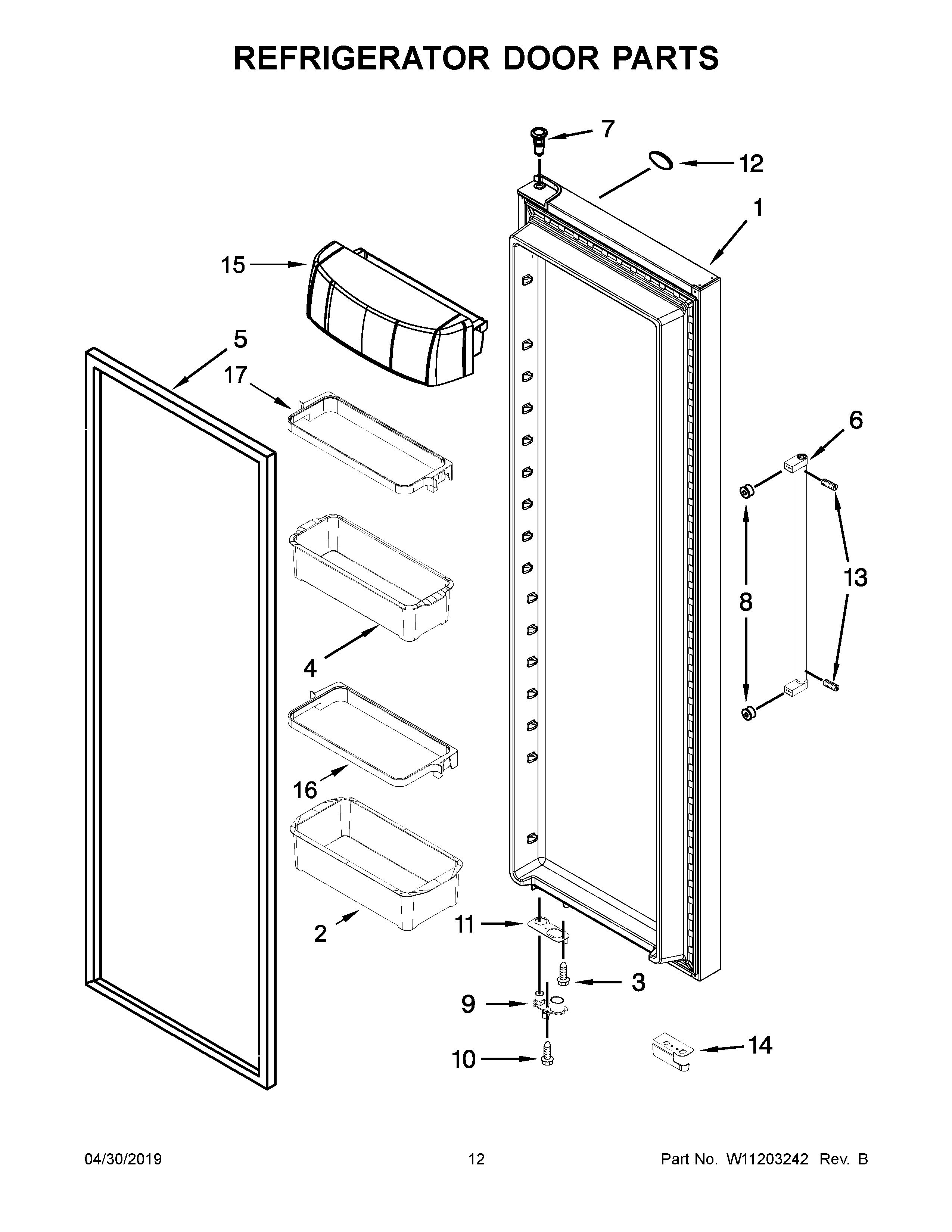

KRSC503ESS01 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	LW10771436 Whirlpool Refrigerator DOR FIP
1	LW10864694 Whirlpool Refrigerator FIP Door
2	WPW10316457 Whirlpool Refrigerator Gallon Door Bin
3	SCREW
4	WPW10316461 Whirlpool Refrigerator Door Shelf Bin Clear
5A	W10355588 Whirlpool Refrigerator FIP Gasket
5	GASKET-FIP
6	W11340150 Whirlpool Refrigerator Handle
7	WP2182181 Whirlpool Refrigerator Thimble
8	WPW10661886 Whirlpool Refrigerator Door Handle Screw
9	WPW10257201 Whirlpool Door Closing Cam
10	WPW10296804 Whirlpool Refrigerator Screw
11	W11037957 Whirlpool Refrigerator Bracket
12	W10839793 Whirlpool Refrigerator Nameplate
13	SCREW
14	W10789145 Whirlpool Refrigerator Wire Cover
15	WPW10324760 Whirlpool Refrigerator Door Shelf Bin
16	WPW10494334 Whirlpool Bin Frame
17	WPW10494333 Whirlpool Refrigerator Silver Door Bin Frame
