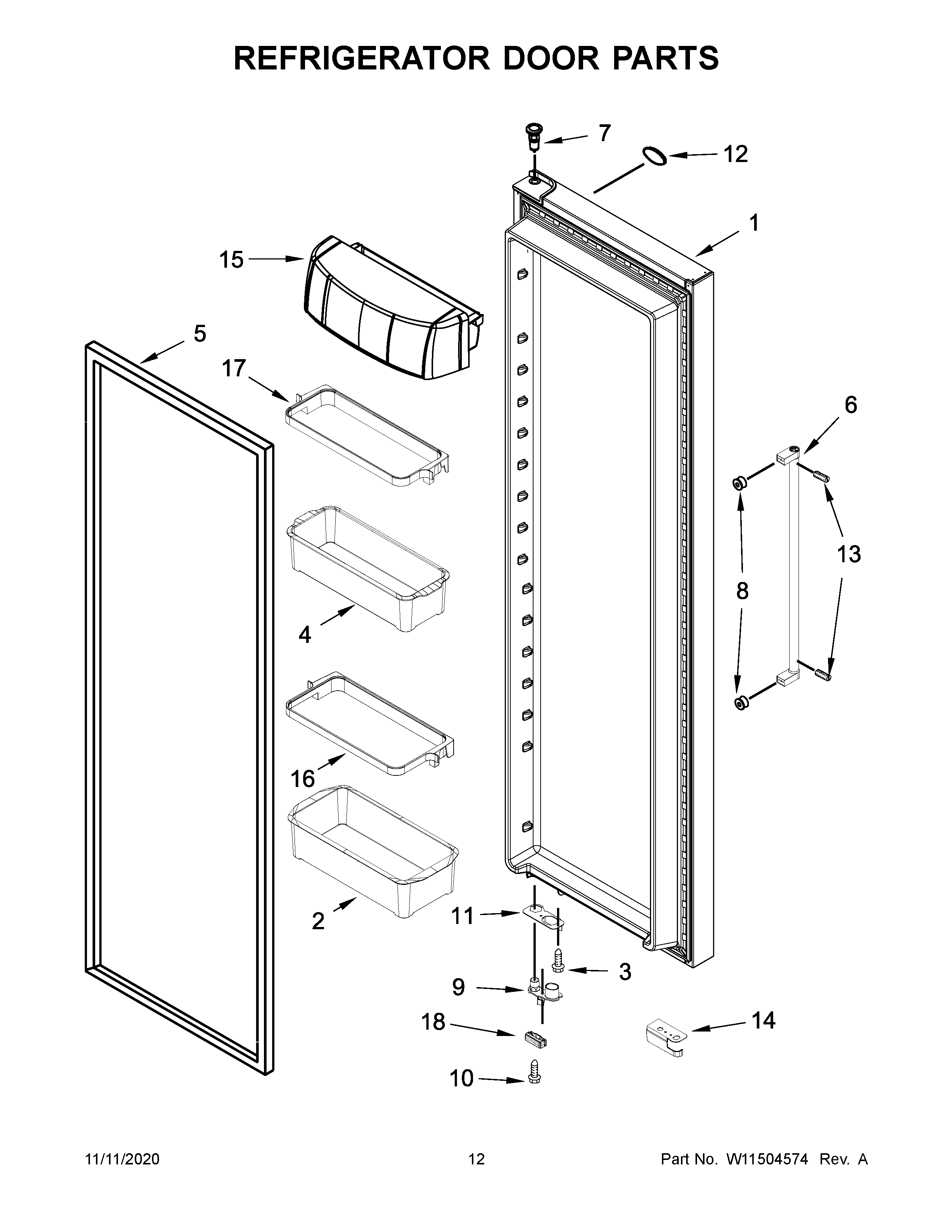

KRSC700HBS01 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	W11395841 Whirlpool Refrigerator Door Assembly
1	W11395840 Whirlpool Refrigerator Door Assembly
2	WPW10316457 Whirlpool Refrigerator Gallon Door Bin
3	SCREW
4	WPW10316461 Whirlpool Refrigerator Door Shelf Bin Clear
5	WPW10249912 Whirlpool Refrigerator FIP Gasket
5A	W10355582 Whirlpool Refrigerator Door Gasket
6	W11340150 Whirlpool Refrigerator Handle
7	WP2182181 Whirlpool Refrigerator Thimble
8	WPW10661886 Whirlpool Refrigerator Door Handle Screw
9A	WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
9	WPW10257201 Whirlpool Door Closing Cam
10	SCREW
11	W11037957 Whirlpool Refrigerator Bracket
12	W10839793 Whirlpool Refrigerator Nameplate
13	SCREW
14	W10789145 Whirlpool Refrigerator Wire Cover
14A	W11661847 Whirlpool Wire Cover
15	WPW10324760 Whirlpool Refrigerator Door Shelf Bin
16	WPW10494334 Whirlpool Bin Frame
17	WPW10494333 Whirlpool Refrigerator Silver Door Bin Frame
18	W10407187 Whirlpool Refrigerator Door Bumper
