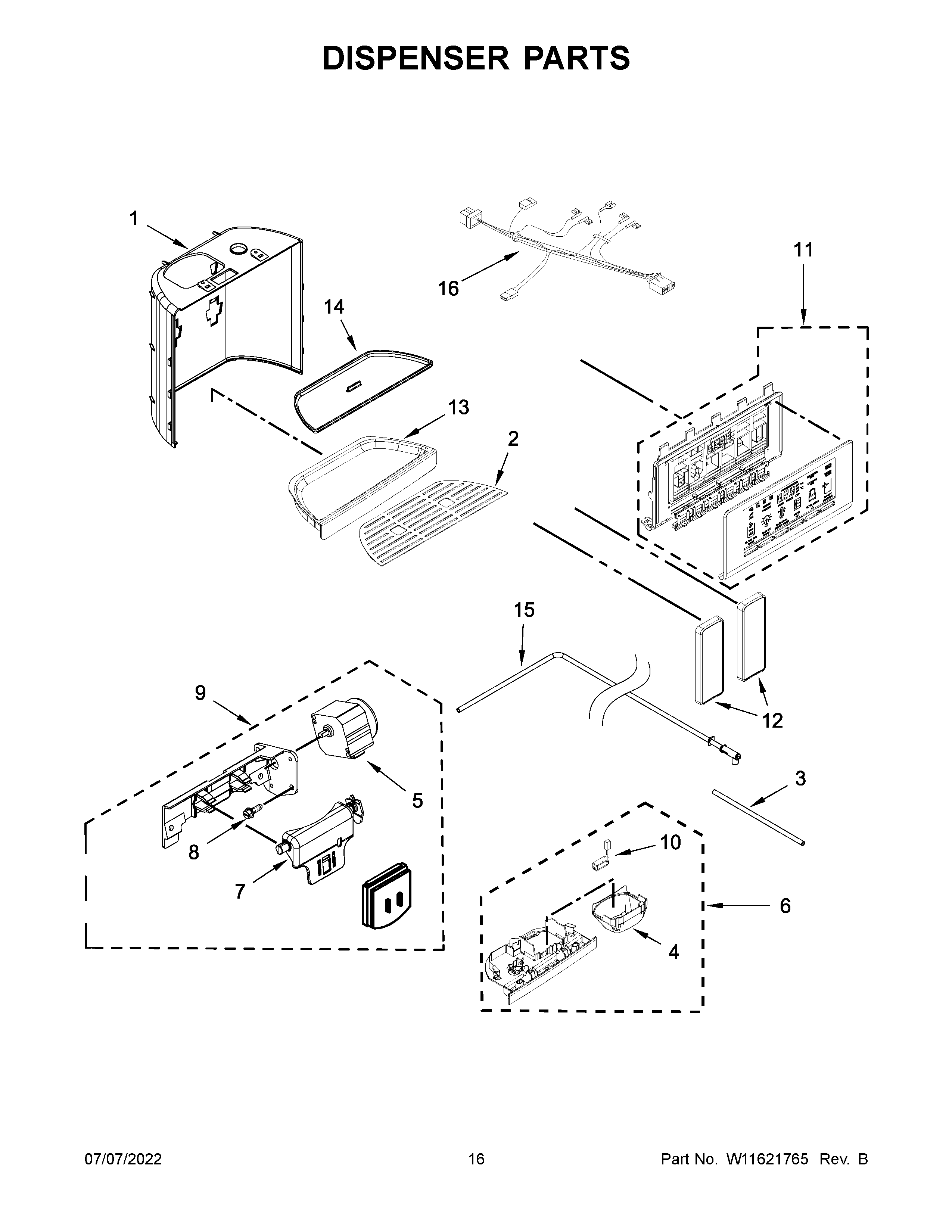

KRSC700HBS04 09 – DISPENSER PARTS

Products

Position	Product
1	W10317259 Whirlpool Refrigerator Separator
2	WPW10317270 Whirlpool Refrigerator Grille
3	W11533098 Whirlpool Refrigerator Water Tube
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	W10353593 Whirlpool Refrigerator Separator
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	DOOR-ICE
10	W11290115 Whirlpool Refrigerator Light
11	W11623068-includeCORE Whirlpool W11623068 Refrigerator Electronic Control Board + Core
12A	WPW10346924 Whirlpool Refrigerator Pad
12	W11561037 Whirlpool Refrigerator Pad
13	W10317265 Whirlpool Refrigerator Drip Tray
14	DRIP TRAY, INSERT (BLACK)
15	W11567542 Whirlpool Refrigerator Water Tube
16	W11025771 Whirlpool Wire Harness
