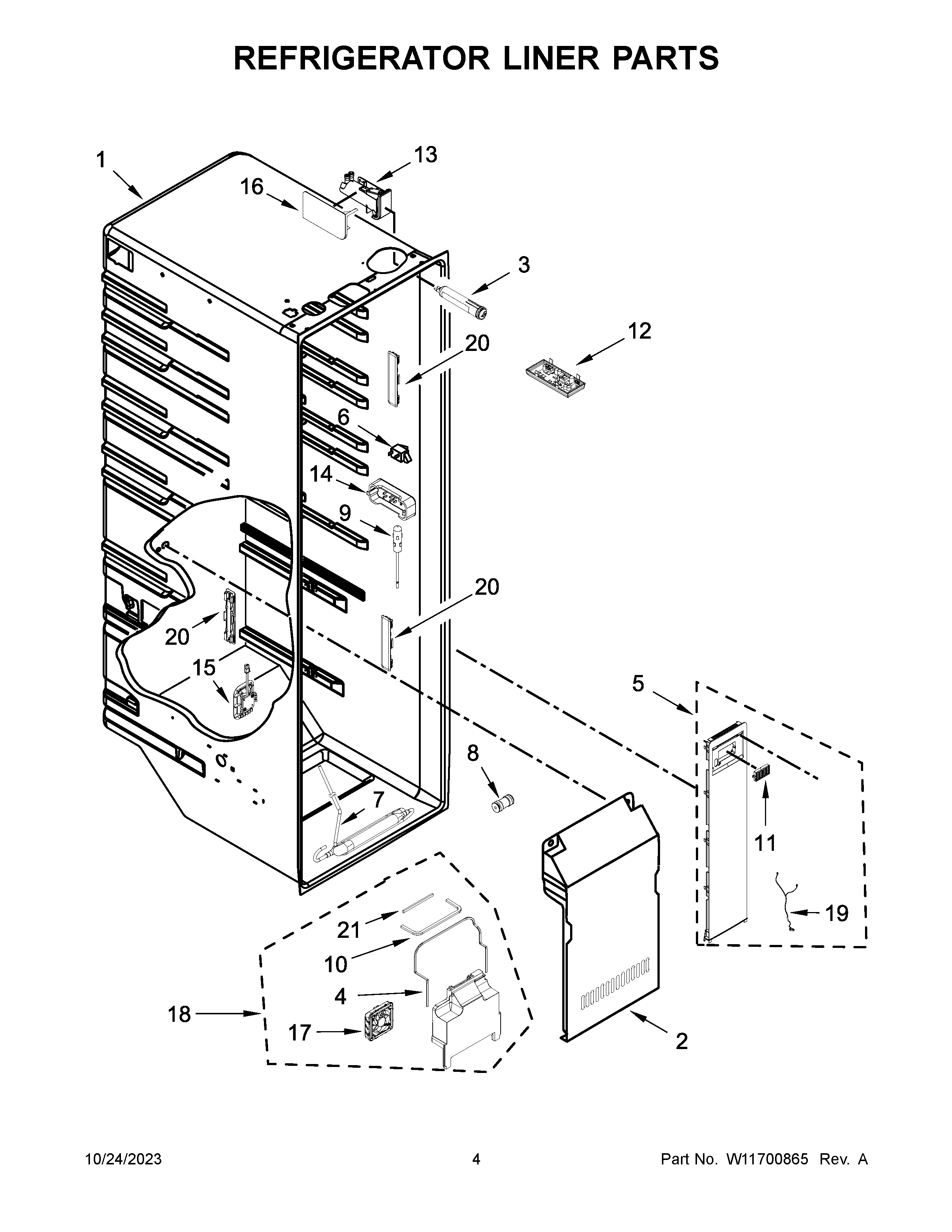

KRSC700HBS05 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2WPW10387382 Whirlpool Refrigerator Evaporator Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W11702233 Whirlpool Gasket
5W10903407 Whirlpool Refrigerator Air Tower
6W11123941 Whirlpool Refrigerator Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9THERMISTOR
10W11676537 Whirlpool Gasket
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12W11226500 Whirlpool LED Light
13WPW10394053 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15LIGHTING, LED
16W11501035 Whirlpool Refrigerator Filter Cover
17FAN-SCROLL
18W11608966 Whirlpool Fan Scroll
19W10777986 Whirlpool Wire Jumper
20W10876365 Whirlpool Refrigerator Light
21W11676538 Whirlpool Gasket
