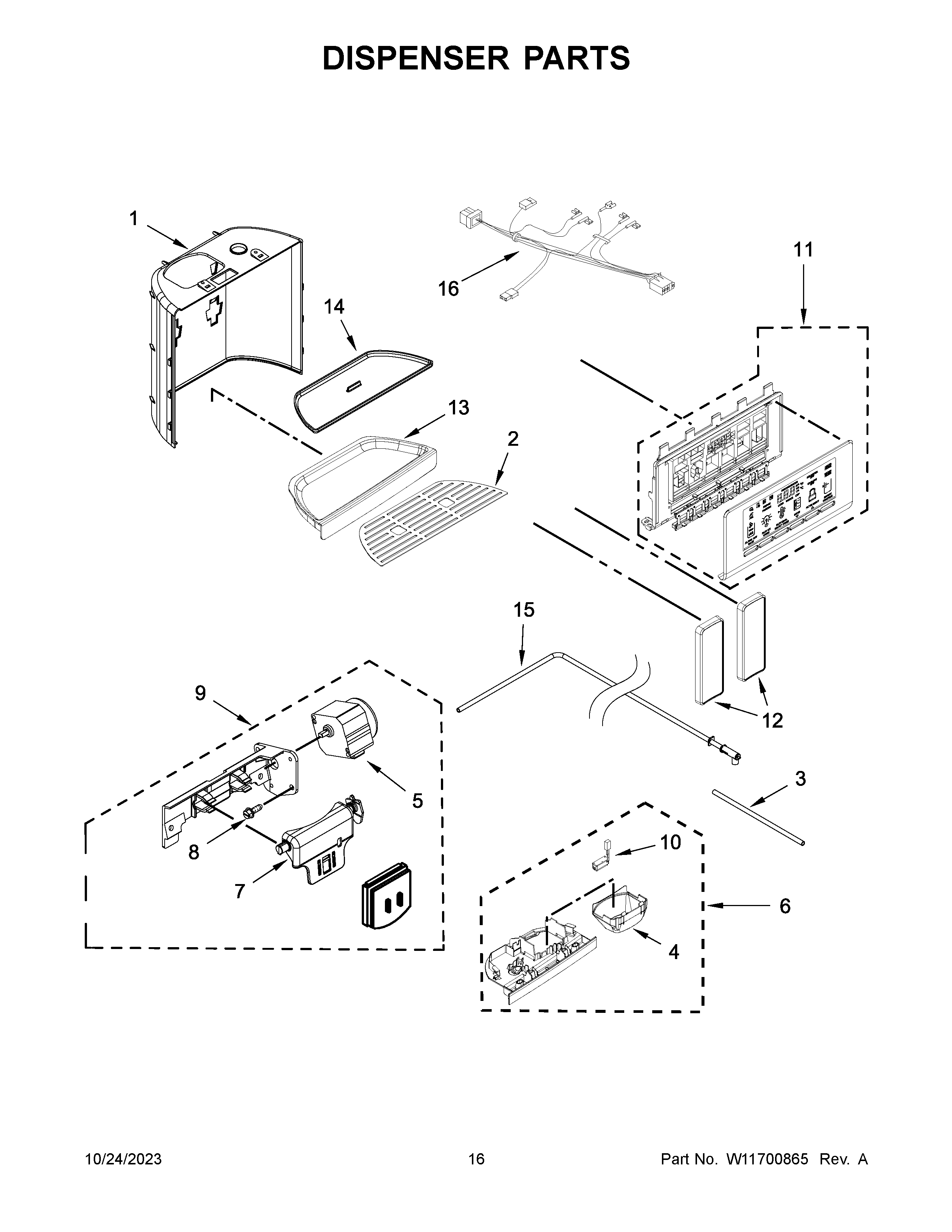

KRSC700HBS05 09 – DISPENSER PARTS

Products

PositionProduct
1W10317259 Whirlpool Refrigerator Separator
2WPW10317270 Whirlpool Refrigerator Grille
3W11533098 Whirlpool Refrigerator Water Tube
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10353593 Whirlpool Refrigerator Separator
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9DOOR-ICE
10W11290115 Whirlpool Refrigerator Light
11W11623068-includeCORE Whirlpool W11623068 Refrigerator Electronic Control Board + Core
12W11561037 Whirlpool Refrigerator Pad
13W10317265 Whirlpool Refrigerator Drip Tray
14DRIP TRAY, INSERT (BLACK)
15W11567542 Whirlpool Refrigerator Water Tube
16W11025771 Whirlpool Wire Harness
