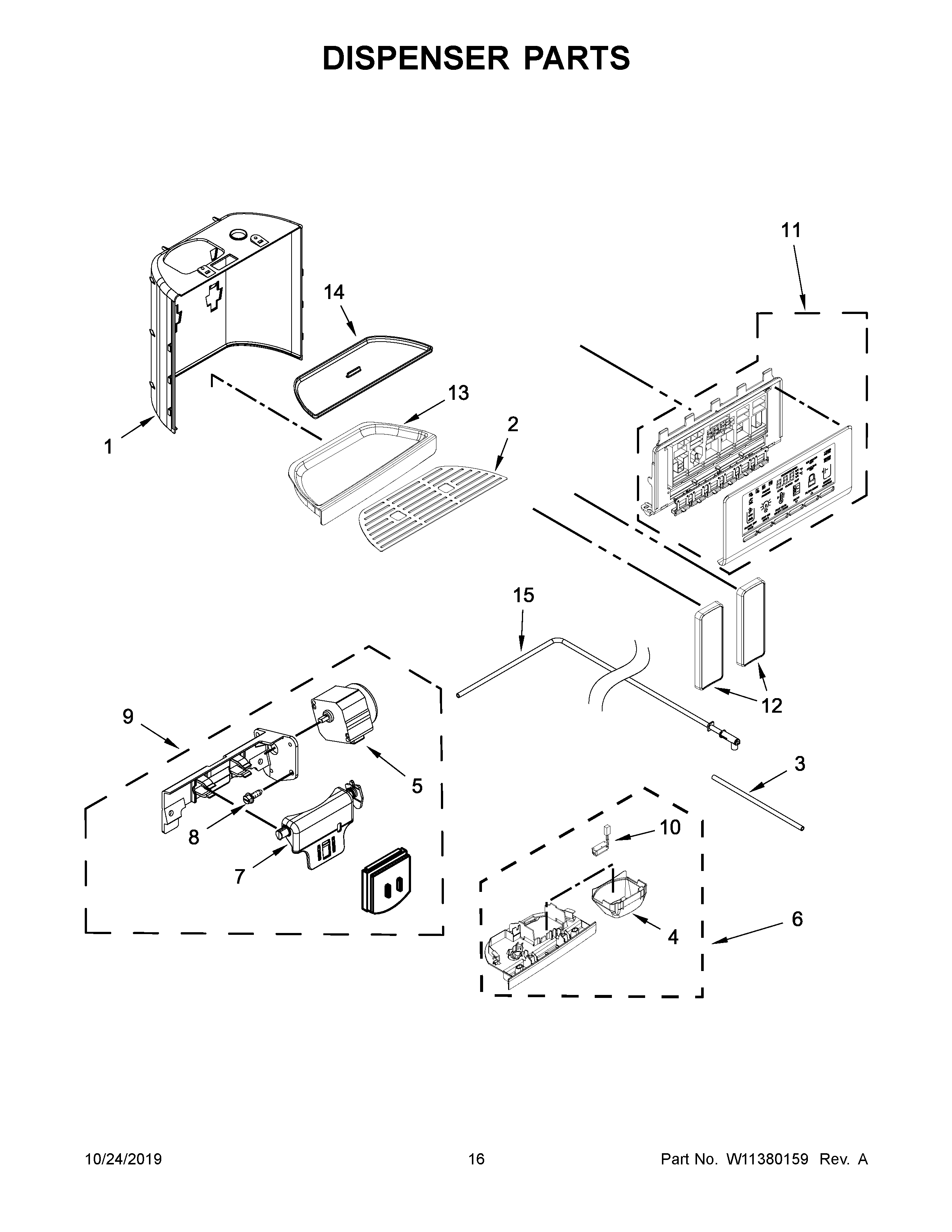

KRSC700HPS00 09 – DISPENSER PARTS

KRSC700HPS00 09 – DISPENSER PARTS

Written by

in

KRSC700HPS00 09 – DISPENSER PARTS

Products

PositionProduct
1W10317259 Whirlpool Refrigerator Separator
2WPW10317270 Whirlpool Refrigerator Grille
3W11620106 Whirlpool Water Tube
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10353593 Whirlpool Refrigerator Separator
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9DOOR-ICE
10W11290115 Whirlpool Refrigerator Light
11W10822646-includeCORE Whirlpool W10822646 Refrigerator Electronic Control Board
12W11561037 Whirlpool Refrigerator Pad
12AWPW10346924 Whirlpool Refrigerator Pad
13W10317265 Whirlpool Refrigerator Drip Tray
14W10317275 Whirlpool Refrigerator Drip Tray
15WPW10386778 Whirlpool Refrigerator Water Tube
