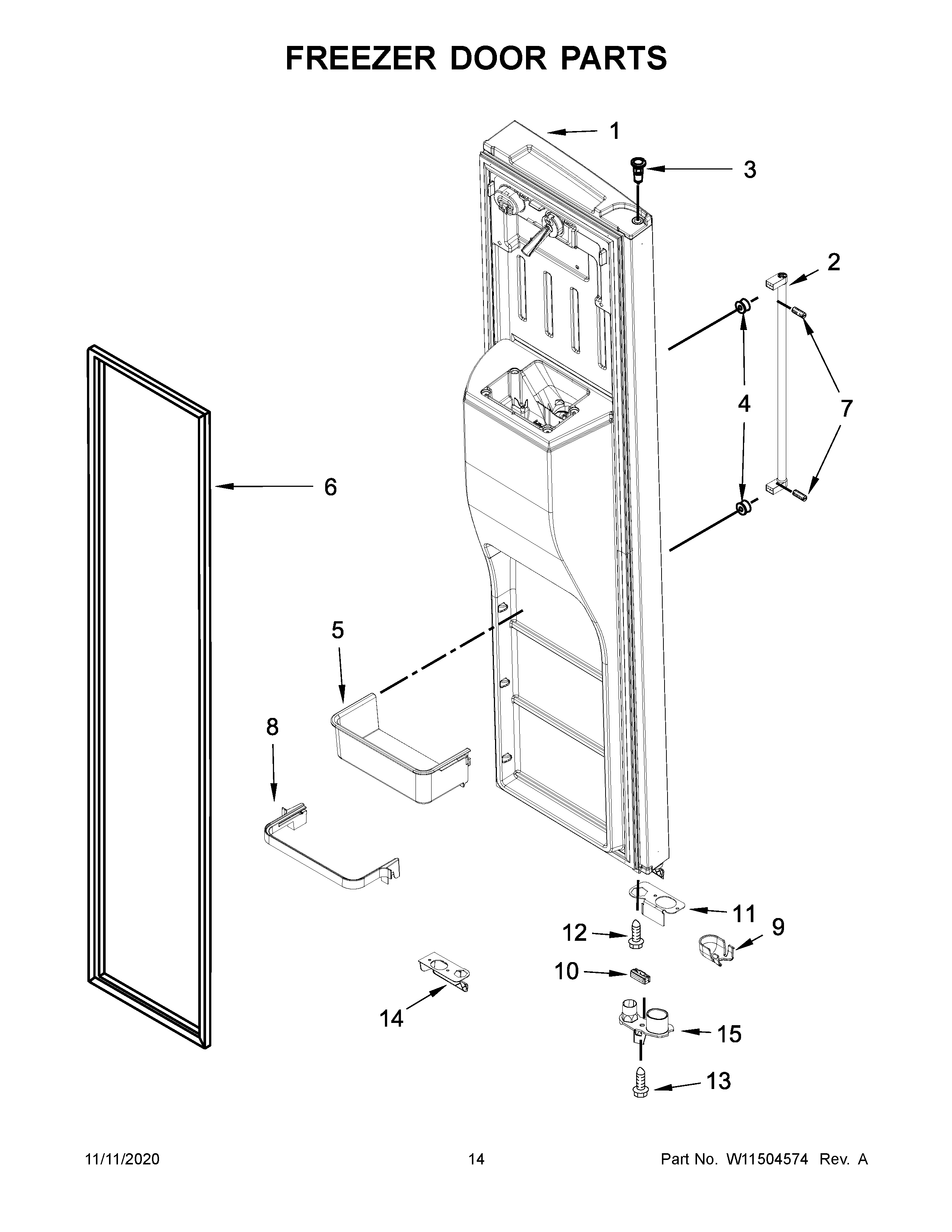

KRSC700HPS01 08 – FREEZER DOOR PARTS

KRSC700HPS01 08 – FREEZER DOOR PARTS

Written by

in

KRSC700HPS01 08 – FREEZER DOOR PARTS

Products

PositionProduct
1AW11465912 Whirlpool Refrigerator Door Assembly
1DOR-FIP (DROP SHIP)
2W11340150 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10661886 Whirlpool Refrigerator Door Handle Screw
5WPW10434529 Whirlpool Refrigerator Bin
6WPW10249913 Whirlpool Refrigerator FIP Gasket
6AWPW10355585 Whirlpool Refrigerator Door Gasket + AH
7SCREW
8WPW10494336 Whirlpool Refrigerator Bin Frame
9W10323148 Whirlpool Refrigerator Wire Cover
10W10407187 Whirlpool Refrigerator Door Bumper
11W11293380 Whirlpool Refrigerator Bracket
12SCREW
13SCREW
14W10632060 Whirlpool Refrigerator Wire Cover
15W11607100 Whirlpool Refrigerator Thimble Cam
