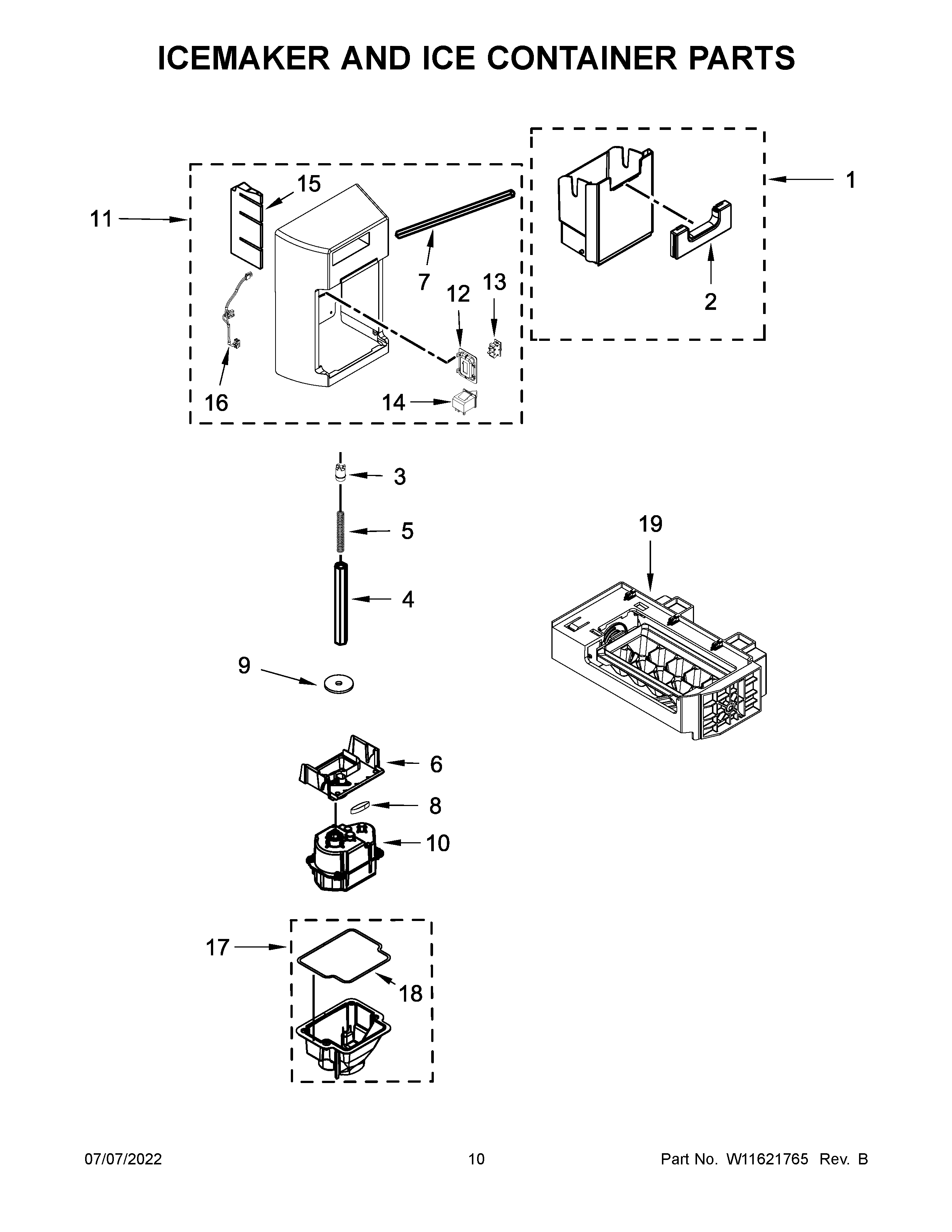

KRSC700HPS04 06 – ICEMAKER AND ICE CONTAINER PARTS

KRSC700HPS04 06 – ICEMAKER AND ICE CONTAINER PARTS

Written by

in

KRSC700HPS04 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1W11347840 Whirlpool Refrigerator Ice Container
2W11652042 Whirlpool Bin Latch
3WP2220458 Whirlpool Drive Cam
4WPW10258544 Whirlpool Refrigerator Shaft
5W10852956 Whirlpool Refrigerator Spring
6CHUTE
7WPW10400435 Whirlpool Refrigerator Gasket
8WPW10291905 Whirlpool Seal
9WP2305382 Whirlpool Refrigerator Washer
10W11202789 Whirlpool Auger Motor
11W11558186 Whirlpool Refrigerator Front Cover
12W11341247 Whirlpool Plate
13W11469740 Whirlpool Refrigerator Switch
14W11123943 Whirlpool Refrigerator Switch
15W10749467 Whirlpool Refrigerator Insulation
16W11684619 Whirlpool Refrigerator Jumper Wire
17W11678273 Whirlpool Bracket
18W10166854 Whirlpool Refrigerator Gasket
19W10873791 Whirlpool Refrigerator Ice Maker Assembly
