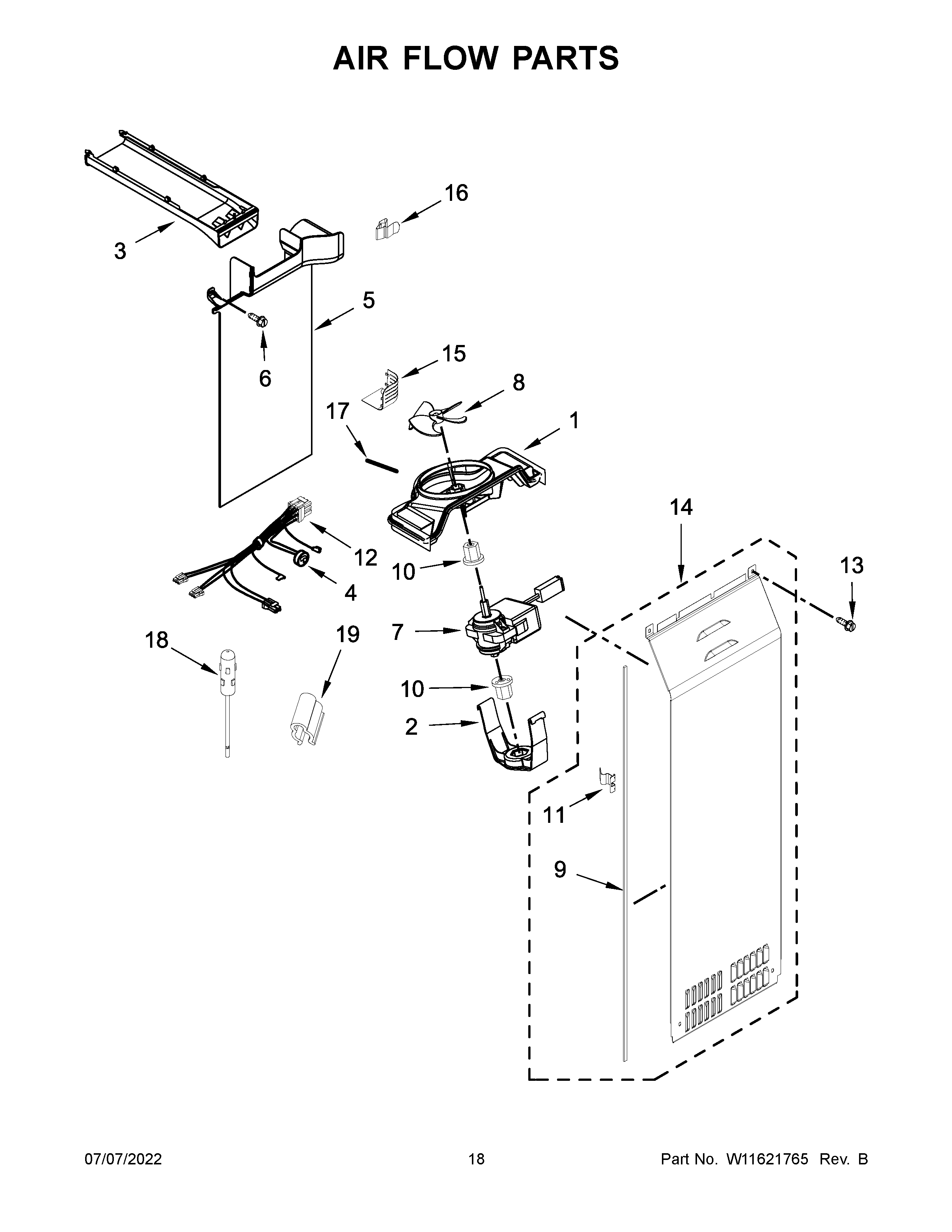

KRSC700HPS04 10 – AIR FLOW PARTS

KRSC700HPS04 10 – AIR FLOW PARTS

Written by

in

KRSC700HPS04 10 – AIR FLOW PARTS

Products

PositionProduct
1W10251462 Whirlpool Refrigerator Scroll Fan
28201663 Whirlpool Refrigerator Primary Fan Blade
3AIR DUCT, UPPER
4CABINET (NOT A SERVICEABLE PART)
5AIR DUCT FREEZER
6WP489478 Whirlpool Refrigerator Screw
7W11396715 Whirlpool Refrigerator Evaporator Motor
8WP2169142 Whirlpool Fan Blade
9W10240370 Whirlpool Refrigerator Gasket
10W11669856 Whirlpool Grommet
11W11232019 Whirlpool Refrigerator Clip
12W11658799 Whirlpool Wire Harness
13WP693995 Whirlpool Screw
14WPW10388268 Whirlpool Refrigerator Evaporator Cover
15W10260382 Whirlpool Refrigerator Cover
16W10331728 Whirlpool Refrigerator Clip
17W11205489 Whirlpool Foam Insert
18WPW10384183 Whirlpool Thermistor
19W11546684 Whirlpool Refrigerator Clip
