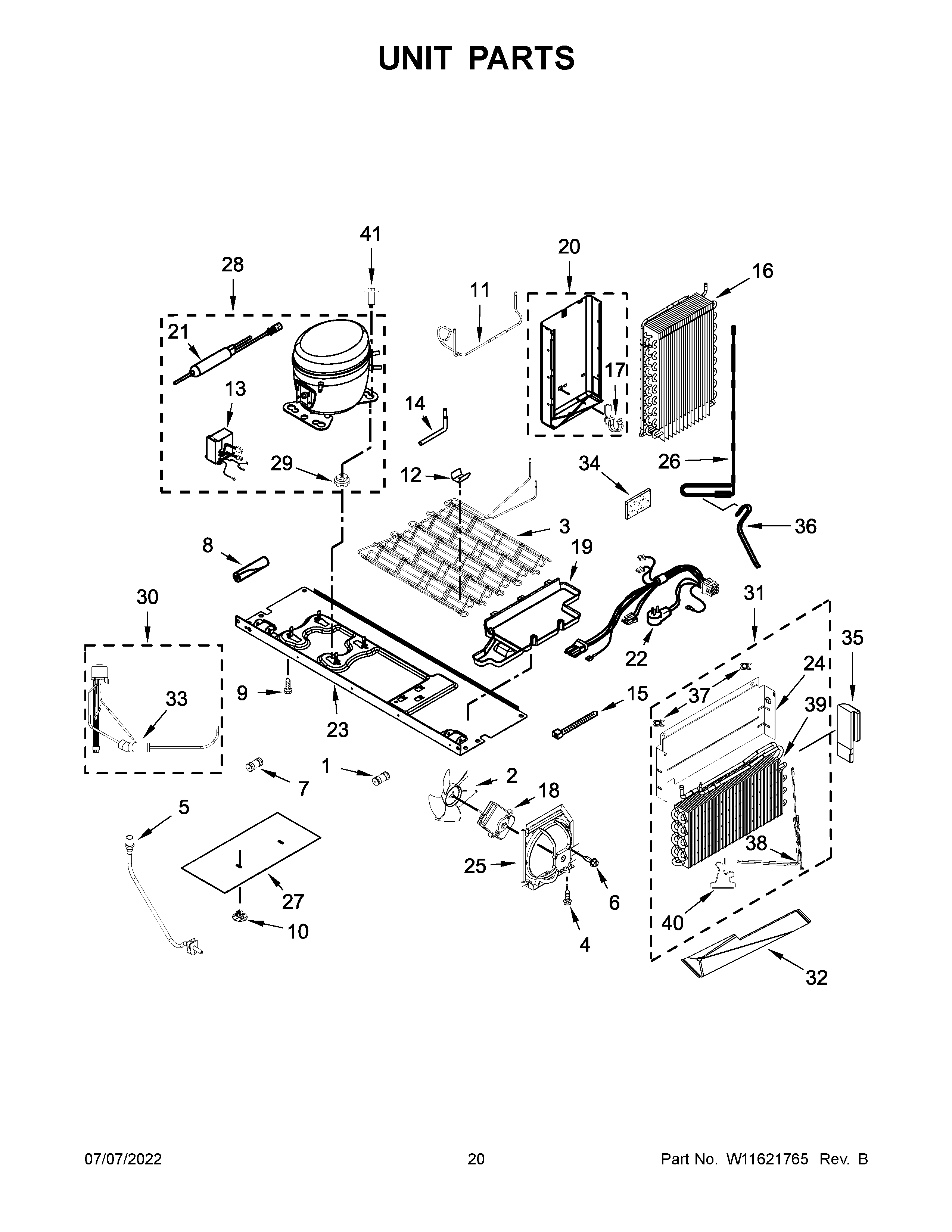

KRSC700HPS04 11 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1WPW10271543 Whirlpool Refrigerator Connector
2W11458267 Whirlpool Refrigerator Fan Blade
3W11708426 Whirlpool Condenser Assembly
4W10142255 Whirlpool Screw
5W11409190 Whirlpool Refrigerator Drain Tube
6WPW10171469 Whirlpool Refrigerator Screw
7WPW10277958 Whirlpool Refrigerator Fitting
8SLEEVE
9BOLT
10W10815861 Whirlpool Refrigerator Clip
11W11608695 Whirlpool Tube
12W10683556 Whirlpool Refrigerator Clip
13W11567494 Whirlpool Refrigerator Inverter Box
14W11558176 Whirlpool Tube
15WPW10339879 Whirlpool Wire Tie
16BW11504450 Whirlpool Refrigerator Coupler
16W11546605 Whirlpool Refrigerator Evaporator
17W11623163 Whirlpool Refrigerator Clip
18W11127829 Whirlpool Refrigerator Condenser Motor
19W10714793 Whirlpool Refrigerator Evaporator Tray
20ASSEMBLY, HEAT SHIELD/DRAIN PAN
21AW11504445 Whirlpool Refrigerator Coupler
21W11109499 Whirlpool Refrigerator Tube
22W11661927 Whirlpool Harness Wire
23W10680691 Whirlpool Refrigerator Support Assembly
24ASSEMBLY, RC HEAT SHIELD
25WPW10251467 Whirlpool Refrigerator Air Baffle
26W11566485 Whirlpool Heater
27UNIT COVER, BOTTOM
28BW11504415 Whirlpool Refrigerator Coupler
28W11557671 Whirlpool Refrigerator Compressor
28AW11504431 Whirlpool Microwave Coupler
28DW11506635 Whirlpool Refrigerator Valve Coupler
28CW11504416 Whirlpool Refrigerator Coupler
29WPW10169124 Whirlpool Refrigerator Grommet
30AW11506623 Whirlpool Refrigerator Coupler
30W11590197 Whirlpool Refrigerator Valve
30CW11506625 Whirlpool Refrigerator Coupler
31ACOUPLER
31BW11506620 Whirlpool Refrigerator Coupler
32W11720794 Whirlpool Drain Pan
33W11553819 Whirlpool Refrigerator Insulation
35WPL W11405291
35AW11621724 Whirlpool Insulation
36W11566486 Whirlpool Heat Probe
37CLIP, EVAP (2)
38W11621725 Whirlpool Heater Assembly
39W11595221 Whirlpool Evaporator
40W11621727 Whirlpool Clip
41W11417341 Whirlpool Refrigerator Screw
